STEERING/SUSPENSION/SPRINGS/SHOCKS

Idler Arms / Pitman Arms / Steering Linkage / Tie Rod Parts

phone: (937) 678-7249   fax: (937) 678-5886   email: sales@americanpartsdepot.com

secure ordering

Please note that we've added watermarks to some of our photos. The parts do not have these markings on them.

Bolts & Brackets | Bushings | Idler Arms | Pitman Arm/Parts | Pivot Pins | Steering Linkage | Tie Rods | Tube Kits

B	68-74 64-69 70-78	AMX, Javelin American Rebel, Matador, Ambassador	Idler Arm - Correct OEM appearance.	101 0801	$89.00	Qty:
B	63-69 63-64 & 69 65-66	Classic, Rebel Ambassador Marlin	Idler Arm	101 0801A	$279.00	Qty:

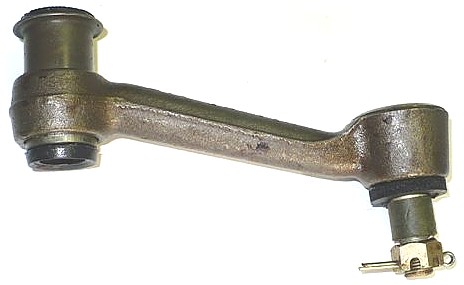

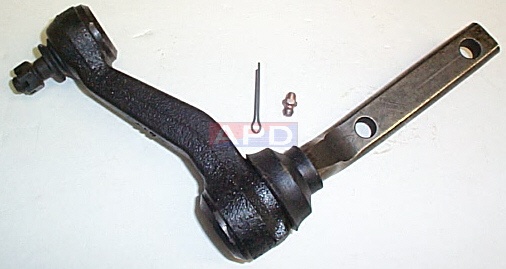

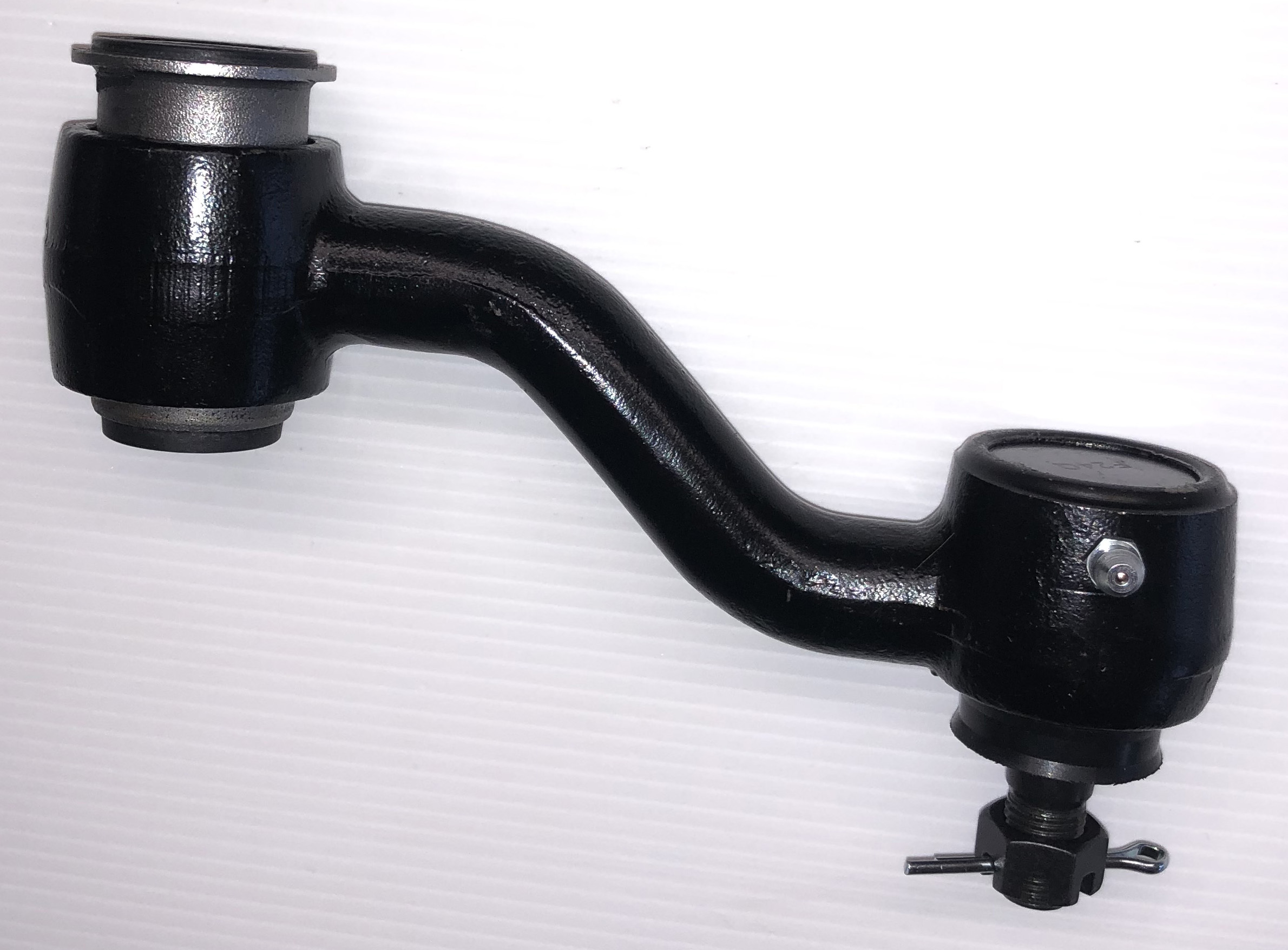

B	77-88	Hornet, Gremlin, Concord, Spirit, Eagle	Idler Arm	101 0801B	$49.00	Qty:

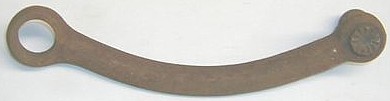

	51-55	Rambler	Idler Arm (RHD)	N311 5376	$45.00	Qty:

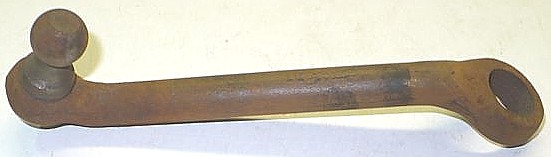

	54	Rambler	Idler Arm	N311 7263	$98.00	Qty:

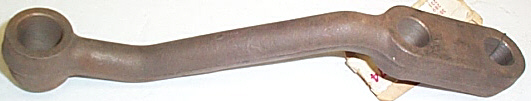

	58-59	Rebel	Idler Arm - 2 required	N315 3574	$45.00	Qty:
	L59-61	Rebel	Idler Arm - 2 required	N315 7595	$45.00	Qty:

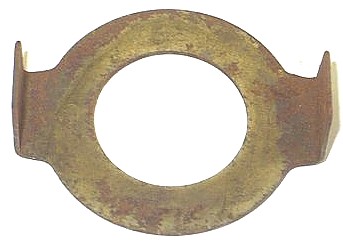

	47-48	600	Idler Arm Pivot Shaft Spacer - 1 required	N312 2810	$3.00	Qty:
	53-56	Ambassador 6 (w/Power Steering)	Idler Arm Anti-Roll Bracket Stud Sleeve Grommet - 1 required	N313 7255	$20.00	Qty:
	58-61	Rambler (w/o Power Steering)	Idler Arm to Cross Tube Stud Grommet - 1 required (see above photo)	N313 7255	$20.00	Qty:
	56	Statesman, Ambassador Special V8 (w/o PS)	Idler Arm - 1 required	N311 9145	$98.00	Qty:

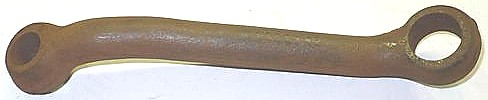

	52-54	Statesman (w/o PS)	Idler Arm	N313 3742	$98.00	Qty:

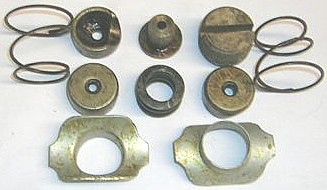

	50-51	Rambler	Steering Linkage Cross Tube Repair Kit - 2 req	N311 4527	$45.00	Qty:

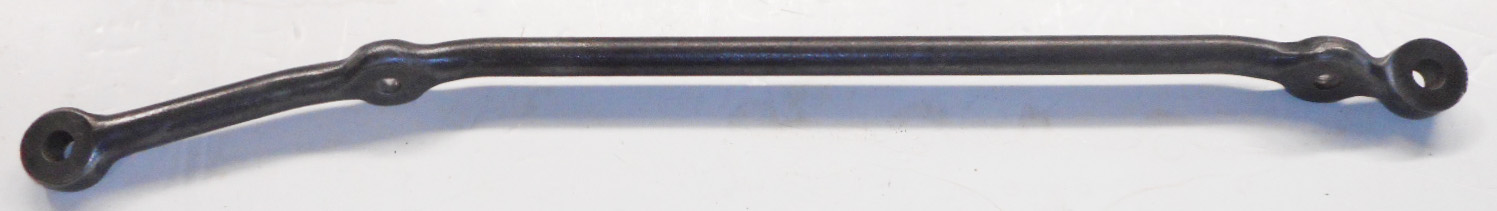

	62	Ambassador, Classic	Manual Steering Linkage Center Link	N320 3487	$150.00	Qty:
	67-69 65-66 64 63	Ambassador, Rebel, Marlin Classic, Marlin Ambassador, Classic Ambassador, Classic (w/o Power Steering)	Steering Linkage Center Link - Good used.	U320 4036	$150.00	Qty:
	68-74 70-78	AMX, Javelin Ambassador, Rebel, Matador	Steering Linkage Center Link - Good used.	U321 0107	$175.00	Qty:
	64-69	American	Steering Linkage Center Link - 1 required	N320 4739	$200.00	Qty:
	70-83	Hornet, Gremlin, Concord, Spirit (exc Four)	Steering Linkage Center Link - 1 required (see above photo)	N320 4739	$200.00	Qty:
	50-51	Rambler	Steering Linkage Center Link - 1 required	N311 3947	$75.00	Qty:
	58-60 55	American Rambler	Manual Steering Linkage Center Link (cross tube) - 1 required	N311 8646	$175.00	Qty:
	50-56	Rambler	Manual Steering Linkage Cross Tube Plug - Columbus Type  - 2 required	N311 5477	$5.00	Qty:
	57-61 57 58-63	Rambler 6, Classic Rebel, Rambler V8 American	Manual Steering Linkage Cross Tube Plug - 2 required (see above photo)	N311 5477	$5.00	Qty:

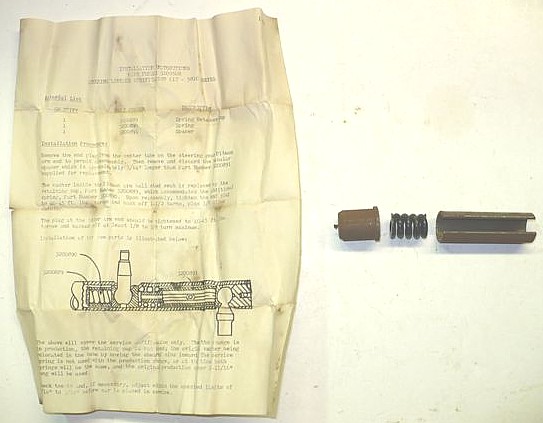

	58	Rambler (w/o PS)	Steering Linkage Modification Kit	N320 9508	$35.00	Qty:
	L52-54	Amb, Statesman (w/o PS)	Steering Linkage Cross Tube Plug - Thompson Type 2 - 2 required	N311 5785	$5.00	Qty:
	53-56	Amb 6 (w/PS)	RH Steering Linkage Cross Tube Plug - 1 req (see above photo)	N311 5785	$5.00	Qty:
	52-61 52-56	Amb (w/o PS) Statesman (w/o PS)	Steering Linkage Cross Tube Plug - Columbus Type -  2 required	N311 5811	$5.00	Qty:
	52-53	Rambler	Steering Linkage Cross Tube Plug - Thompson type -  2 required	N311 5821	$5.00	Qty:
	55-56 57 58-63	Rambler (w/o PS) Rambler, Rebel (w/o PS) American (w/o PS)	Steering Linkage Cross Tube Washer - 2 req	N311 8647	$1.00	Qty:
	58-63	Rambler 6, Classic (exc 62 V8) (w/o PS)	Steering Linkage Cross Tube Washer - 2 req (see above photo)	N311 8647	$1.00	Qty:
	50-54	Rambler	Center Link Spring Safety Plug - 2 required	N311 3951	$5.00	Qty:
	55-60 57 58-59 61 62-63	Rambler (w/o PS) Rebel (w/o PS) American (w/o PS) Classic 6 (w/o PS) American (w/o PS)	Cross Tube Spring Safety Plug - 2 req	N311 8650	$5.00	Qty:
	50-54	Rambler	Steering Linkage Cross Tube Spacer (long) - 1 required	N311 3952	$5.00	Qty:

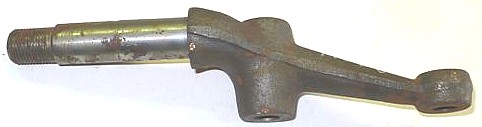

	52-54	Ambassador	Front Wheel Spindle - 2 req	N313 3518	$75.00	Qty:

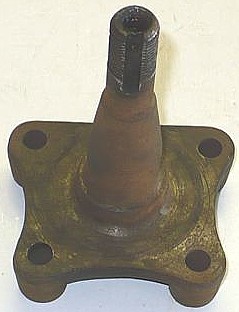

	52-54	Statesman	Front Wheel Spindle - 2 req	N313 3519	$75.00	Qty:

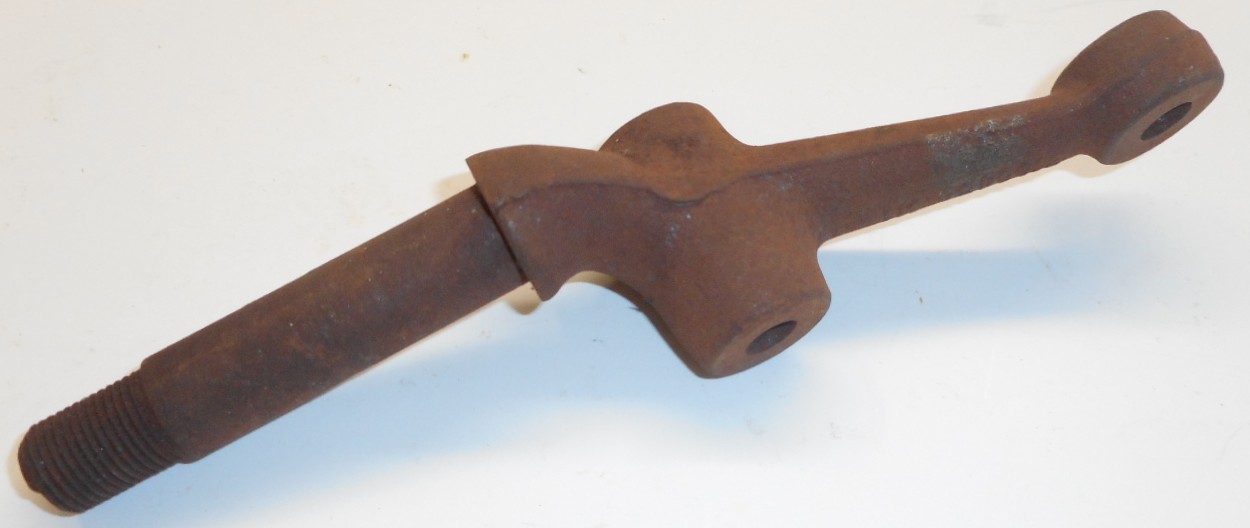

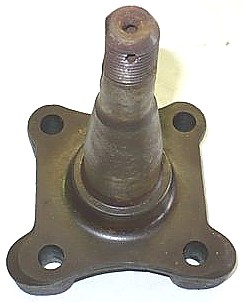

	69	American V8 (exc SC/Rambler), Rebel Six (exc Wagon)	Front Wheel Spindle - 2 req	N319 3711	$75.00	Qty:
	60-88	All	Cotter Pin for Pitman Arm, Idler Arm & Tie Rod End-S/S	101 0403A	$0.25	Qty:
	68-69 66-69 70-88	AMX, Javelin American All (except Pacer)	Castle Nut for Pitman Arm, Idler Arm, and Tie Rods	101 0403B	$3.00	Qty:
	75-80	Pacer	Tie Rod End Castle Nut - 2 required	101 0403C	$2.00	Qty:

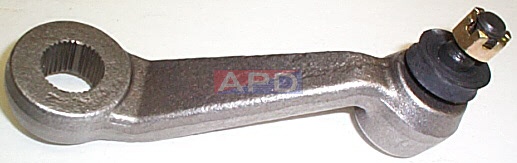

A	68-74 70-83 64-69 70-78	AMX, Javelin Hornet, Gremlin, Concord, Spirit American Ambassador, Matador	Pitman Arm - (MS)	101 0401A	$39.00	Qty:

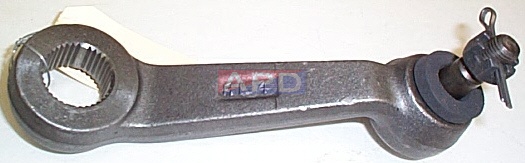

A	68-74	AMX, Javelin	Pitman Arm - (PS)	101 0401B	$38.00	Qty:
	70-78	Ambassador, Rebel, Matador	Pitman Arm - (PS) (see above photo)	101 0401B	$38.00	Qty:
A	64-69	American	Pitman Arm - (PS) (see above photo)	101 0401B	$38.00	Qty:
A	70-88	Hornet, Gremlin, Concord, Spirit, Eagle	Pitman Arm - (PS) (see above photo)	101 0401B	$38.00	Qty:

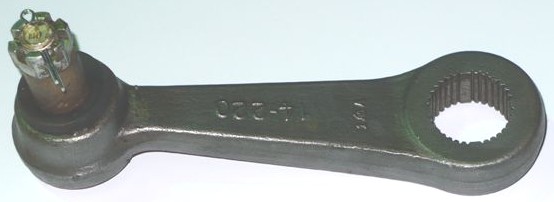

A	65-68	Ambassador, Marlin	Pitman Arm - (PS) CORE CHG: $75.00	101 0401D	$129.00	Qty:

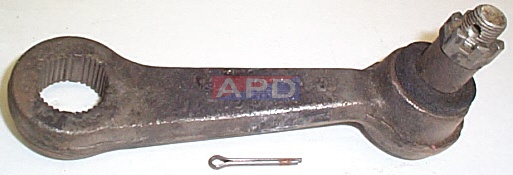

A	65-68 67	Ambassador Marlin	Pitman Arm - (MS)	101 0401E	$29.00	Qty:
	69 62-69 62-64 65-66	Ambassador Classic, Rebel Ambassador Marlin	Pitman Arm (MS)	101 0401F	$129.00	Qty:
	67-88 66 66 62-65 58-61	All American (PS) Amb, Classic, Marlin Amb, Classic, Marlin (MS) Amb, Classic, Rambler	Pitman Arm Nut	101 0402A	$15.00	Qty:

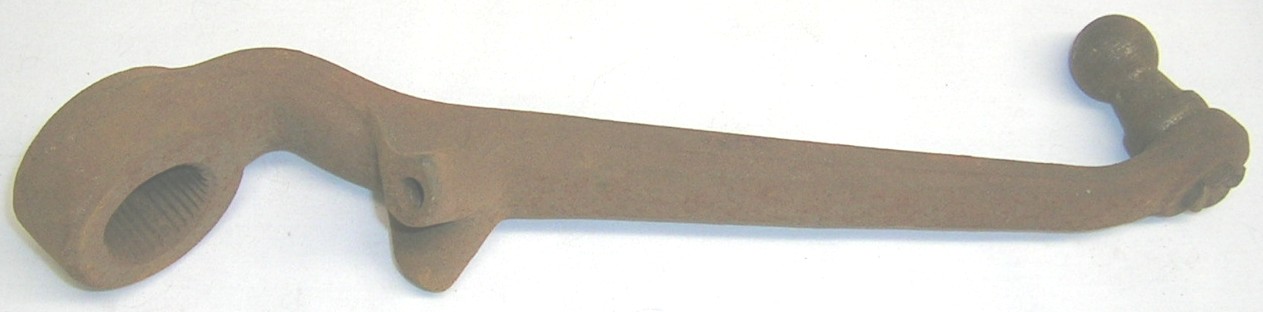

	51-55	Rambler	Pitman Arm (RHD)	N311 5377	$45.00	Qty:

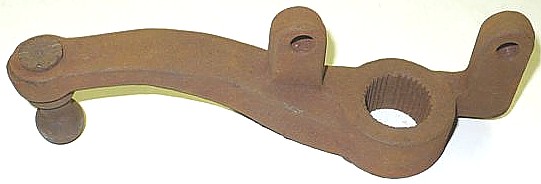

	56 57	Rambler (w/o PS) Rambler, Rebel (w/o PS)	Pitman Arm	N311 8970	$150.00	Qty:

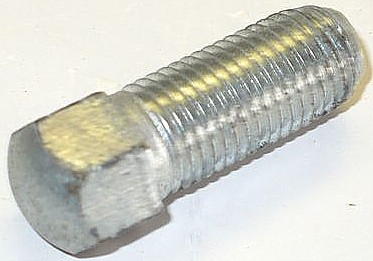

	52-E53	Amb, Statesman	Turning Radius Stop Screw - on pitman arm, 1 3/8" long & 3/8-24 thread - 2 required	N313 5449	$5.00	Qty:
	L53-54	Amb, Statesman	Turning Radius Stop Screw - on pitman arm, 1 3/8" long & 7/16-20 thread  - 2 req	N313 8149	$5.00	Qty:
	71-74	All	Power Steering Gear Pitman Shaft Cover Seal (O-ring) - see 106 1202 for kit with steel & rubber seal with bolts	N812 2966	$5.00	Qty:
	L52-54	Amb, Statesman (w/o PS)	Idler & Pitman Arm Ball Stud Cover - Thompson type	N311 5790	$5.00	Qty:

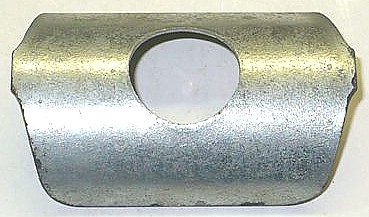

	55-56	Amb 6 (w/PS)	Idler Arm Ball Stud Cover  (see above photo)	N311 5790	$5.00	Qty:
	52-54	Amb, Statesman (w/o PS)	Idler Arm & Pitman Arm Ball Stud Covers - Columbus type - 2 required	N311 5814	$5.00	Qty:
	55	Statesman (w/o PS)	Idler Arm & Pitman Arm Ball Stud Covers - Columbus type - 2 required (see above photo)	N311 5814	$5.00	Qty:
	55-56	Amb (exc Spec V8 - w/o PS)	Idler Arm Ball Stud Cover - 1 required (see above photo)	N311 5814	$5.00	Qty:
	56	Amb Spec V8, Statesman (w/o PS)	Pitman Arm Ball Stud Cover - 1 required (see above photo)	N311 5814	$5.00	Qty:
	53-56	Amb 6 (w/PS)	Idler Arm Ball Stud Cover Seal - 1 req	N311 5791	$1.00	Qty:
	52-54	Amb (w/o PS)	Pitman Arm & Idler Arm Ball Stud Cover Seal - 2 required (see above photo)	N311 5791	$1.00	Qty:
	50 51-54	Rambler Rambler (RHD)	Steering Linkage Cross Tube Spacer (Short) - 1 required	N311 3953	$5.00	Qty:

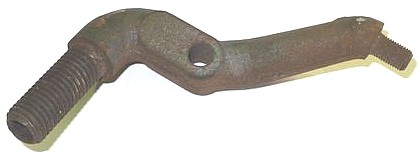

	58	Rebel	Idler Arm Pivot Pin (4 15/16" long) - 2 required	N315 5534	$45.00	Qty:
	59	Rebel	Idler Arm Pivot Pin - 2 required (see above photo)	N315 5534	$45.00	Qty:
	60-61	Rebel	Idler Arm Pivot Pin - 2 required (see above photo)	N315 5534	$45.00	Qty:
C	58-61	American, Ambassador	Idler Arm Bushing - (MS)	101 1000A	$29.00	Qty:

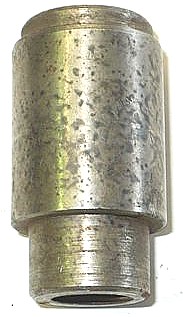

	58-61	Rambler, Classic (Six)	Idler Arm Bushing - 1 required	N315 4563	$15.00	Qty:
	58-61	Rambler, Classic (Six w/o PS)	Idler Arm Pivot Bolt - 1 req	101 1200A	$75.00	Qty:
	50-E52	Rambler	Idler Arm Bracket (on 52 before D-92609 & DKD-2435) - 1 required	N311 6400	$45.00	Qty:

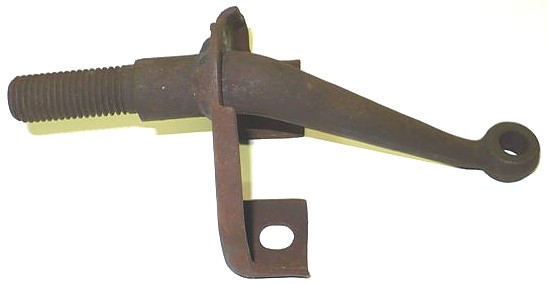

	52-56	Ambassador 6	Idler Arm Bracket - 1 required	N313 3737	$75.00	Qty:
	55-56	Ambassador V8 (w/Manual Steering - except Special V8)	Idler Arm Bracket - 1 required (see above photo)	N313 3737	$75.00	Qty:
	L52-55	Rambler	Idler Arm Bracket - 1 required	N313 5109	$45.00	Qty:
	56-57	Rambler 6 (w/o PS)	Idler Arm Bracket (for type w/1 mounting hole on '57)	N314 4918	$45.00	Qty:
	56	Ambassador Spec V8, Statesman (w/o PS)	Idler Arm Bracket - 1 required	N314 5353	$35.00	Qty:

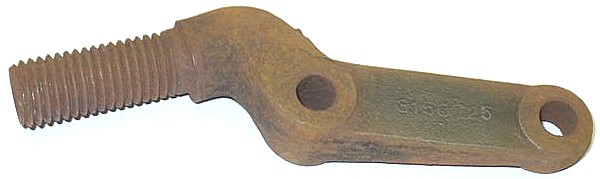

	57	Rebel, Rambler V8	Manual Steering Idler Arm Bracket - 1 req.	N315 0725	$35.00	Qty:
	57	Rambler 6	Manual Steering Idler Arm Bracket (2 hole type) - 1 req. - see above photo	N315 0725	$35.00	Qty:

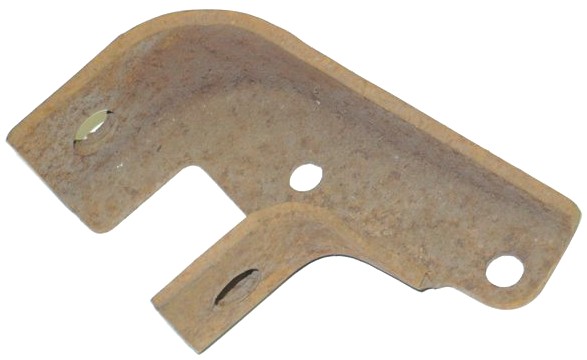

	58-59	Rambler 6	Manual Steering Idler Arm Bracket - 1 required	N315 3567	$45.00	Qty:

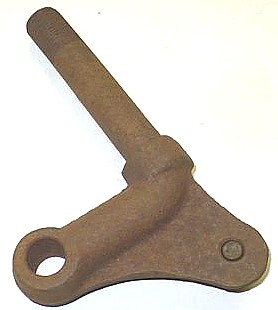

	58-60	American	Idler Arm Bracket - 1 req	N315 4185	$45.00	Qty:

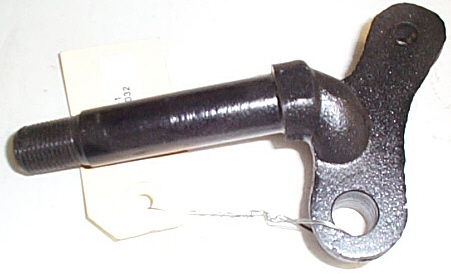

	62-63	American (MS)	Idler Arm Bracket - 1 required	N316 4032	$75.00	Qty:

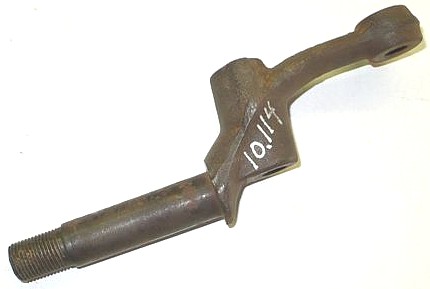

	62	Amb, Classic (w/o PS)	Idler Arm Bracket - 1 required	N316 4237	$45.00	Qty:
	63	Ambassador, Classic (w/o PS)	Idler Arm Bracket - 1 required	N316 6456	$45.00	Qty:
	64 64-66 65-66	Ambassador Classic Marlin	Idler Arm Bracket - 1 required	N317 1886	$45.00	Qty:

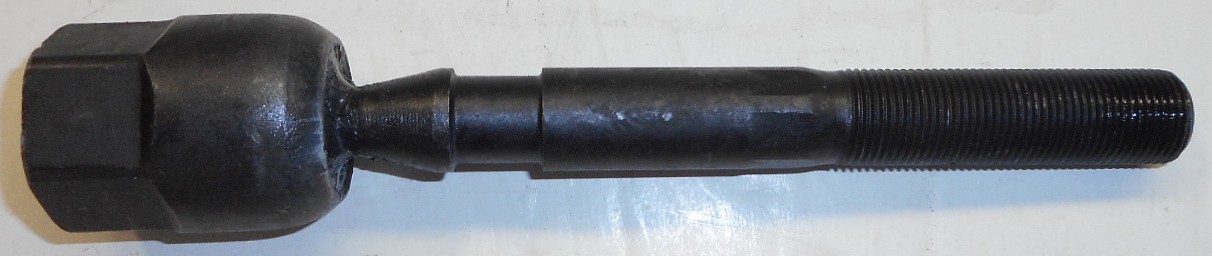

	75-80	Pacer	Inner Tie Rod Assembly - 2 required	101 2101A	$59.00	Qty:

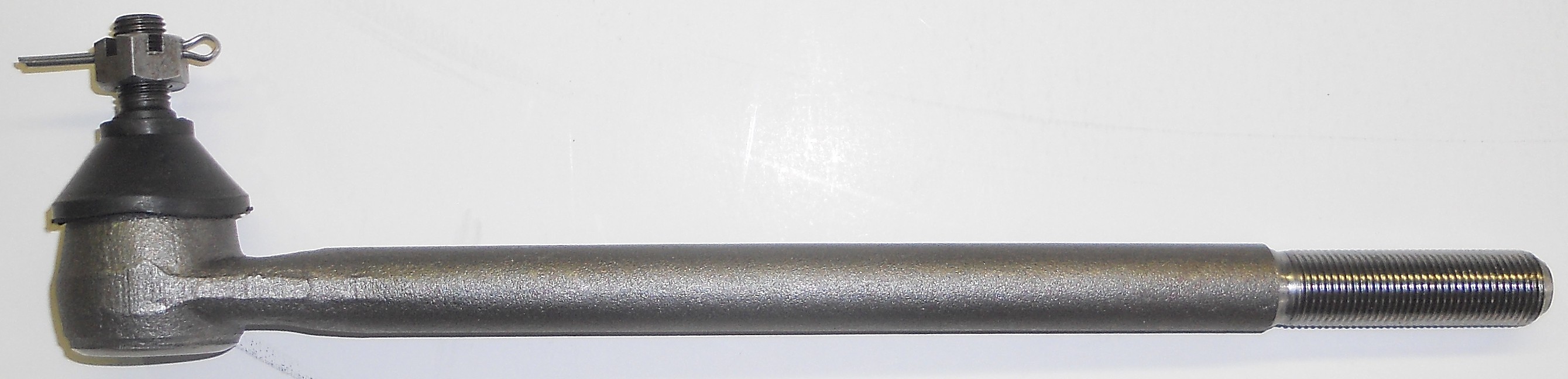

F	68-74 71-74 73-79 80-83	AMX, Javelin Ambassador, Matador All (exc Pacer) Concord, Spirit	Inner Tie Rod	101 2201	$39.00	Qty:

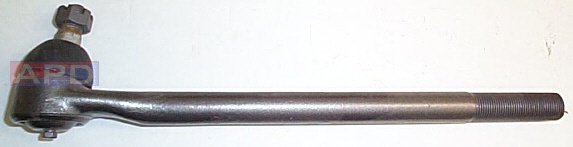

F	62-63	Ambassador, Classic	Inner Tie Rod - (MS)	101 2201A	$189.00	Qty:
F	64-E70	Classic, Rebel, Amb, Marlin	Inner Tie Rod (see above photo)	101 2201A	$189.00	Qty:

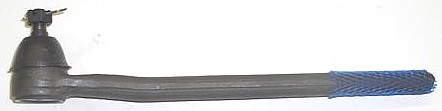

F	64-72	American, Hornet, Gremlin	Inner Tie Rod	101 2201B	$39.00	Qty:

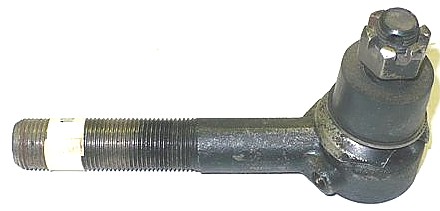

	49-51	Ambassador	LH Inner Tie Rod -  Thompson type	101 2201C	$15.00	Qty:

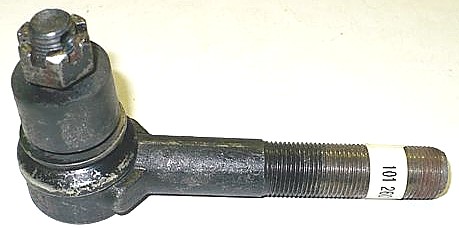

	49-51	Ambassador	RH Inner Tie Rod - Thompson type	101 2201D	$15.00	Qty:

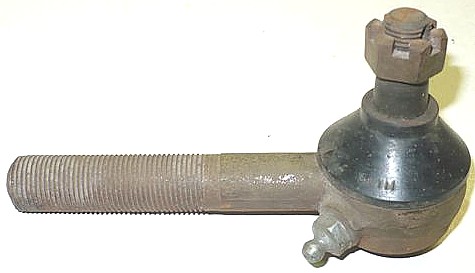

	49-51	Ambassador	RH Inner Tie Rod - Columbus Type	N311 3993	$25.00	Qty:

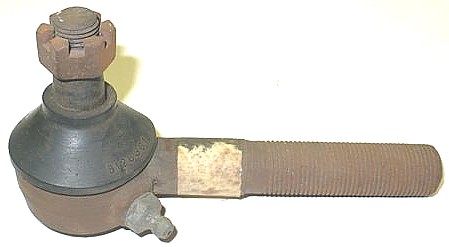

	49-51	Ambassador	LH Inner Tie Rod - Columbus Type	N311 3994	$25.00	Qty:
	L52-54	Amb, Statesman (MS)	RH Inner Tie Rod (Thompson) - 1 required	N311 5792	$45.00	Qty:

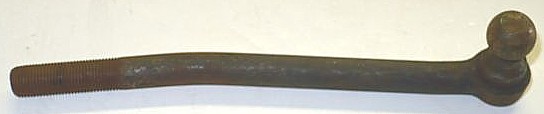

	51-54	Rambler (RHD)	LH Inner Tie Rod - 1 required	N311 5801	$25.00	Qty:

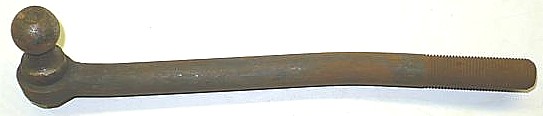

	51-54	Rambler (RHD)	RH Inner Tie Rod - 1 required	N311 5802	$25.00	Qty:
	52-54	Amb, Statesman w/manual steering	RH Inner Tie Rod (Columbus) - 1 required	N311 5812	$15.00	Qty:
	52-54	Statesman, Ambassador  (MS)	LH Inner Tie Rod (Columbus) - 1 required	N311 5813	$15.00	Qty:

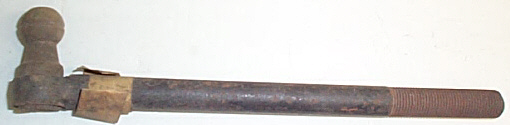

	50-54	Rambler	LH or RH Inner Tie Rod - 2 required	N311 5829	$25.00	Qty:
	55-56 56	Statesman (PS) Ambassador Special V8 (PS)	RH Inner Tie Rod - 1 required	N311 8605	$15.00	Qty:
	55 58	Rambler American (with 9/16" tie rod)	LH Inner Tie Rod - 1 required	N311 8653	$45.00	Qty:
	55 58	Rambler American (with 9/16" tie rod)	RH Inner Tie Rod - 1 required	N311 8654	$45.00	Qty:
	55-56	Ambassador V8 w/power steering	RH Inner Tie Rod Assembly	N311 8681	$45.00	Qty:

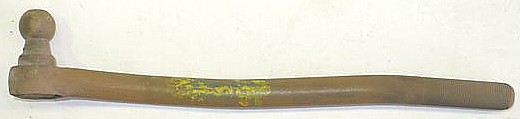

	55-56	Amb 6 w/power steering	LH Inner Tie Rod Assembly	N311 8713	$45.00	Qty:
	55-56	Ambassador SIX w/power steering	RH Inner Tie Rod Assembly	N311 8714	$45.00	Qty:
	56-57	Rambler 6 (w/manual steering)	LH Inner Tie Rod (use with 4 1/4" adj tube) - 1 req	N311 9043	$45.00	Qty:
	56-57	Rambler 6 (w/o power steering)	RH Inner Tie Rod (use with 4 1/4" adjusting tube) - 1 required	N311 9044	$45.00	Qty:

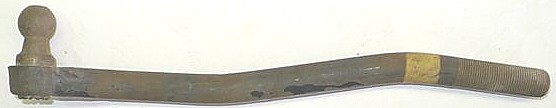

	57	Amb (w/manual steering)	LH Inner Tie Rod	N320 0035	$35.00	Qty:

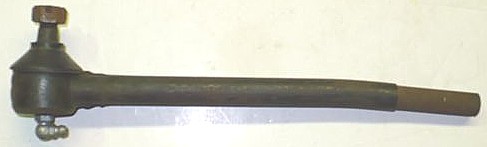

	56-57	Rambler w/power steering	LH Inner Tie Rod	N311 9665	$35.00	Qty:
	56	Rambler 6 (w/manual steering)	LH Inner Tie Rod (use with 4 1/2" adj tube) - 1 req	N320 0239	$45.00	Qty:
	57	Rambler 6, Rambler 8, Rebel (w/manual steering)	LH Inner Tie Rod (on Rambler 6 use with 4 1/2" adj tube) - 1 req (see above photo)	N320 0239	$45.00	Qty:
	56	Rambler 6 (w/manual steering)	RH Inner Tie Rod (use with 4 1/2" adj tube) - 1 req	N320 0240	$45.00	Qty:
	57	Rambler 6, Rambler 8, Rebel (w/manual steering)	RH Inner Tie Rod (on Rambler 6 use with 4 1/2" adj tube) - 1 req (see above photo)	N320 0240	$45.00	Qty:

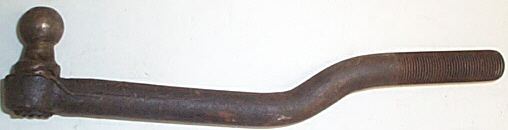

	58-59	Ambassador (MS)	LH Inner Tie Rod - 1 required	N320 0693	$45.00	Qty:

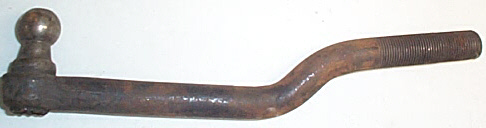

	58-59	Ambassador (MS)	RH Inner Tie Rod - 1 required	N320 0694	$45.00	Qty:

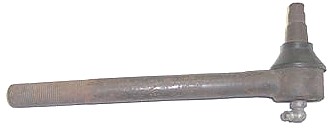

	58-59	Ambassador (w/PS)	LH Inner Tie Rod - 1 required	N320 0696	$145.00	Qty:

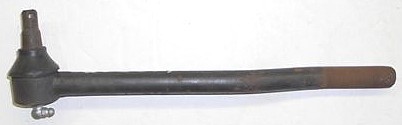

	58-59	Ambassador (w/PS)	RH Inner Tie Rod - 1 required	N320 0697	$95.00	Qty:
	58	Rebel	P/S Cylinder Tie Rod - 1 required	N320 0705	$45.00	Qty:
	59	Rebel	P/S Cylinder Tie Rod (Type 1 - has grease fittings) see above photo	N320 0705	$45.00	Qty:

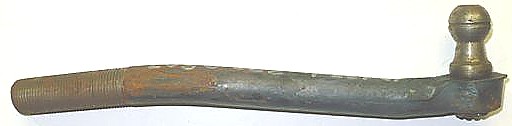

	58-59	Rambler 6	LH Inner Tie Rod - 1 required	N320 0807	$45.00	Qty:

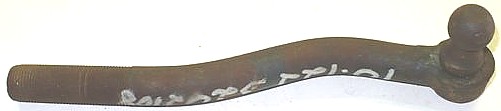

	60	American (w/o PS)	RH Inner Tie Rod - 1 required	N320 2108	$95.00	Qty:
	60-61	Rambler, Classic 6 (w/o PS)	RH Inner Tie Rod - 1 required	N320 2109	$45.00	Qty:

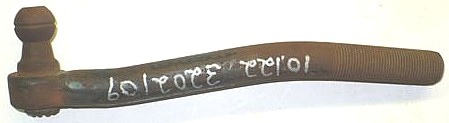

	60-61	Rambler, Classic 6 (w/Manual Steering)	LH Inner Tie Rod - 1 required	N320 2110	$45.00	Qty:

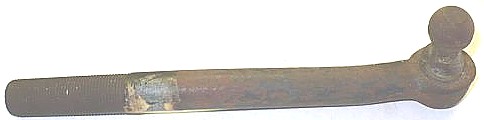

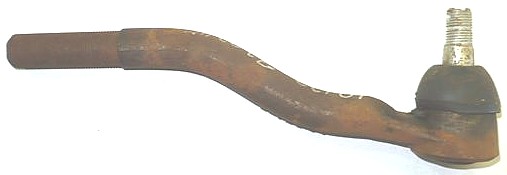

	60-61	Rambler, Classic 6 (w/PS)	LH Inner Tie Rod - 1 required	N320 2115	$75.00	Qty:

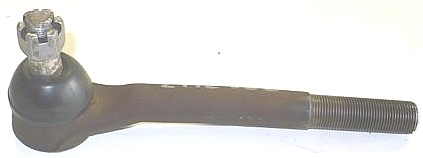

	60-61	Ambassador (w/PS)	LH Inner Tie Rod - 1 required	N320 2117	$98.00	Qty:

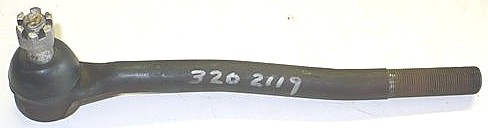

	60-61	Ambassador (w/PS)	RH Inner Tier Rod - 1 required	N320 2119	$98.00	Qty:

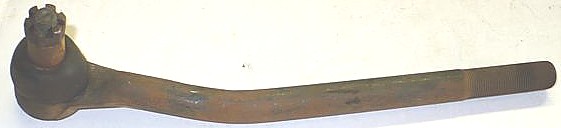

	62	Amb, Classic (w/PS)	LH Inner Tie Rod -  1 required	N320 3296	$119.00	Qty:

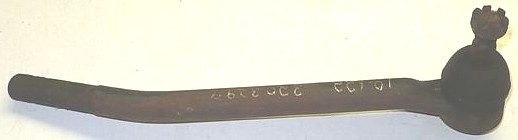

	62	Amb, Classic (w/PS)	RH Inner Tie Rod - 1 required	N320 3297	$119.00	Qty:

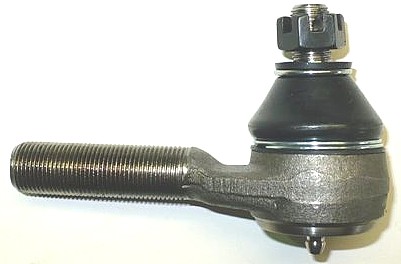

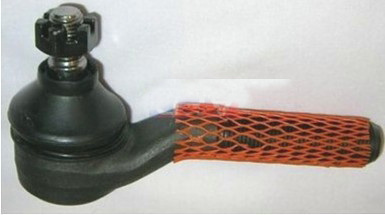

G	67-83	AMX, Javelin, American, Hornet, Gremlin, Concord, Spirit	Outer Tie Rod	101 2601	$20.00	Qty:
G	64-66 70-78	American Rebel, Matador, Ambassador	Outer Tie Rod (see above photo)	101 2601	$20.00	Qty:
G	62-E70 60-61	Classic, Rebel, Marlin, Amb American, Ambassador, Rambler 6	Outer Tie Rod	101 2601A	$59.00	Qty:
G	60-61	Rambler 8, Rebel	Outer Tie Rod - (MS) (see above photo)	101 2601A	$59.00	Qty:

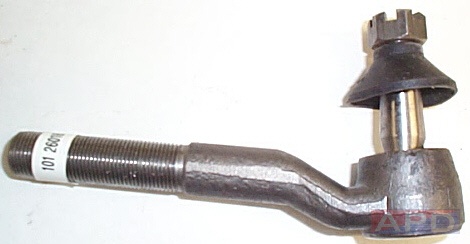

G	75-80	Pacer	Outer Tie Rod End	101 2601B	$149.00	Qty:
G	40 41-42 46-48 37-39	All Ambassador 6 & 8 Ambassador Ambassador 6, Lafayette	Outer Tie Rod End (RH)	101 2601C	$20.00	Qty:

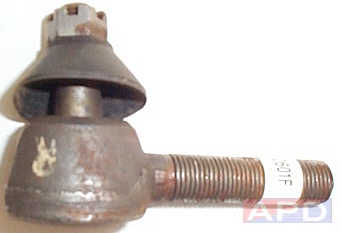

G	51-57	Rambler	Outer Tie Rod End - (MS)  - 2 required	101 2601F	$15.00	Qty:
G	58	American (Type 1)	OuterTie Rod End - 2 required  (see above photo)	101 2601F	$15.00	Qty:
G	56-57	Rambler	Outer Tie Rod End - (PS)	101 2601G	$15.00	Qty:
G	58-59	Ambassador	Outer Tie Rod End - 2 required	101 2601H	$15.00	Qty:
G	58-E59	Rebel	Pitman Arm to Steering Arm End (w/o PS) - 1 rq Cylinder to Steering Arm End (w/PS) - 1 req Idler Arm to Idler Arm End - 1 req	101 2601H	$15.00	Qty:

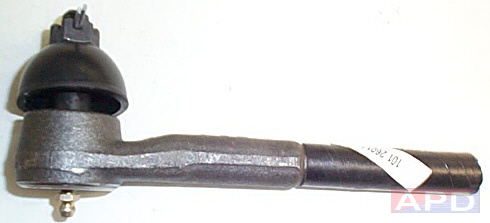

G	80-88	Eagle	Outer Tie Rod End	101 2601J	$49.00	Qty:

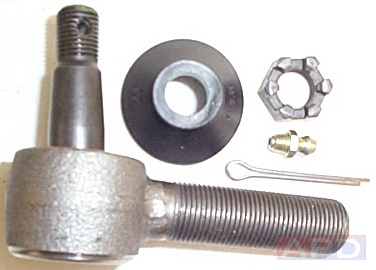

	37-39	Ambassador 6, Lafayette	Outer Tie Rod End (LH)	101 2601K	$39.00	Qty:
	57	Rambler	Outer Tie Rod End - w/4 1/2" adjusting tube - 2 required	101 2601E	$139.00	Qty:
	58-59 57	Rambler Rebel, Rambler V8	Outer Tie Rod End - 2 required (see above photo)	101 2601E	$139.00	Qty:
	L58-59	American	Outer Tie Rod End - on '58 w/ 11/16" thread - 2 required (see above photo)	101 2601E	$139.00	Qty:

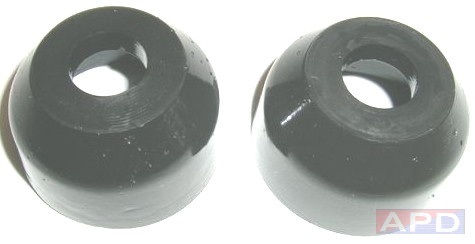

	37-88	All	Tie Rod End Boot Set - Universal polyurethane replacement boots (2 pcs)	102 3200A	$6.00	Qty:
	50-56	Rambler (w/o PS)	Ball Stud Seat - 6 or 8 required	N311 3949	$15.00	Qty:
	57	Rambler, Rebel (w/o PS)	Ball Stud Seat - 6 required (see above photo)	N311 3949	$15.00	Qty:
	58-59	Rambler (w/o PS), American (w/o PS)	Ball Stud Seat - 4 required - (see above photo)	N311 3949	$15.00	Qty:
	52-56 56-61	Ambassador, Statesman (MS) Ambassador (MS)	Tie Rod End Seat (Columbus type)	N311 5807	$20.00	Qty:
	52-56	Amb, Statesman (w/o PS)	Idler & Pitman Arm Ball Stud Seat - Columbus type - 2 required	N311 5808	$15.00	Qty:
	57-59	Amb (w/o PS)	Ider & Pitman Arm Ball Stud Seat - 2 required (see above photo)	N311 5808	$15.00	Qty:
H	67-83	AMX, Javelin, American, Hornet, Gremlin, Concord, Spirit	Tie Rod Adjuster Tube Kit	102 2200	$15.00	Qty:
H	L70-78 64-66 80-88	Rebel, Ambassador, Matador American Eagle	Tie Rod Adjuster Tube Kit  (see above photo)	102 2200	$15.00	Qty:
H	40-48 49-56 57 57 L58-63 75-80	All Amb, 600, Statesman Rambler (w/o PS) Amb, Rebel, Rambler (V8) American Pacer	Tie Rod Adjuster Tube Kit	102 2200A	$15.00	Qty:

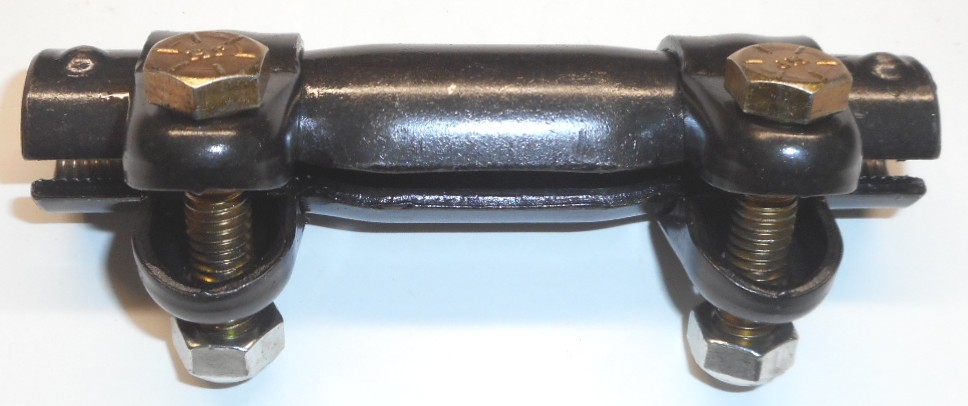

H	58-E70	Amb, Rebel, Rambler, Classic, Marlin	Tie Rod Adjuster Tube Kit  (see above photo)	102 2200A	$15.00	Qty:
	50-54	Rambler	Tie Rod Adjuster Tube - 4" long - 2 required	N311 3962	$10.00	Qty:
	55-56 57 58	Rambler Rambler (w/4 1/4" tube) American (w/ 9/16" thread)	Tie Rod Adjuster Tube Kit - 2 required	N311 8677	$15.00	Qty:
	55-56 57 E58	Rambler Rambler (w/4 1/4" tube) American (w/ 9/16" thread)	Tie Rod Adjuster Tube	N311 8677tube	$5.00	Qty:

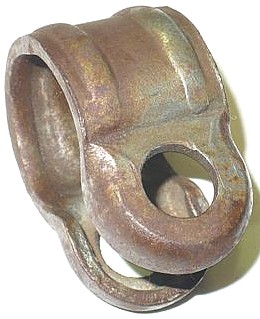

	50-56	Rambler	Tie Rod Adjuster Tube Clamp - 4 required	N311 3963	$5.00	Qty:
	57	Rambler 6	Tie Rod Adjuster Tube Clamp - w/4 1/4" tube - 4 required (see above photo)	N311 3963	$5.00	Qty:
	58	American	Tie Rod Adjuster Tube Clamp - w/ 9/16" thread - 4 required (see above photo)	N311 3963	$5.00	Qty:
