(PS = POWER STEERING / MS = MANUAL STEERING)

YEAR	MODEL	DESCRIPTION	PART #	PRICE	CART
L72-74	AMX, Javelin	LH Steering Arm - for '72 w/o stop plate	N321 5164	$75.00	Qty:
68-74	AMX, Javelin	Cotter Pin for Pitman Arm, Idler Arm & Tie Rod End-S/S	101 0403A	.25¢	Qty:
68-74	AMX, Javelin	Castle nut for Pitman Arm, Idler Arm, and tie rods	101 0403B	$3.00	Qty:
68-74	AMX, Javelin	Pitman Arm - (MS)	101 0401A	$39.00	Qty:
68-74	AMX, Javelin	Pitman Arm - (PS)	101 0401B	$38.00	Qty:
68-74	AMX, Javelin	Pitman Arm Nut	101 0402A	$15.00	Qty:
68-69	All	Steering Coupling - For 36 spline 3/4" shaft. NOTE: Full round, no flat.	107 1001A	$89.00	Qty:
70-78	All	Steering Coupling (for 13/16" stub shaft)   <TOP<BOTTOM	107 1001D	$69.00	Qty:
68-74	AMX, Javelin	Idler Arm   - Correct OEM appearance.	101 0801	OUT
68-74	AMX, Javelin	Steering Linkage Center Link - Good used.	U321 0107	$175.00	Qty:
70-E72	All	LH Steering Arm - on '72 w/separate steering stop	N319 5197	$150.00	Qty:
70-74	AMX, Javelin	3-Spoke Steering Wheel Assembly (Similar to original AMC 71-up "Sports" steering wheel. Has black leather grained vinyl rim. Uses any 71-up 3-spoke steering wheel horn button.) Easy upgrade.	102 8001A	$124.99	Qty:
68-74	All	Tilt Steering Column Lever - Good used. May need replated to be like new.	U318 6523	$25.00	Qty:
71-74	AMX, Javelin	3-Spoke Steering Wheel Skirt Screw - 3 req	102 8002A	.25¢	Qty:
68-74	AMX, Javelin	Inner Tie Rod	101 2201	$39.00	Qty:
68-74	AMX, Javelin	Outer Tie Rod	101 2601	$20.00	Qty:
68-74	AMX, Javelin	Tie Rod End Boot Set - Universal polyurethane replacement boots (2 pcs)	102 3200A	$6.00	Qty:
68-74	AMX, Javelin	Tie Rod Adjuster Tube Kit	102 2200	$15.00	Qty:

68-69	AMX, Javelin V8	Front Coil Spring (Heavy Duty) - pair	110 7200A	$189.00	Qty:
70-74	AMX, Javelin	Upper Shock Bracket Fastener Kit	112 0102	$9.00	Qty:
70-74	All	Front Spring Seat Bushing, Sleeve & Shaft Assembly - 2 required	110 7503A	$89.00	Qty:
70-74	AMX, Javelin	Front Spring Cushion (Polyurethane) - 2 required	110 7507A	$15.00	Qty:
68-69	AMX, Javelin	Front Spring Cushion (Polyurethane) - 4 required	110 7507B	$10.00	Qty:
68-69	AMX, Javelin	Front Spring Bumper	110 7505	$29.00	Qty:
68-69	AMX, Javelin	Spring Bumper Nut Kit - for all with coarse thread studs	110 7506A	$2.00	Qty:
68-69	AMX, Javelin	Spring Bumper Nut Kit - for all with fine thread stud (and all others above that use 110 7505 bumpers) - 1 required (see above photo)	110 7506B	$2.00	Qty:
68-69	AMX, Javelin	Upper Trunnion (Reman) - with polyurethane bushings. EXCHANGE ONLY  - NOTE: Rebuildable core must be received by us before replacement can be shipped.	100 4202R	$99.00	Qty:
68-69	AMX, Javelin	Trunnion & Bearing Kit (Reman) EXCHANGE ONLY - NOTE: Rebuildable core must be received by us before replacement can be shipped.	100 4202RK	$119.00	Qty:
68-69	AMX, Javelin	Steering Knuckle Pin - 2 required. Good used.	U319 1580	$125.00	Qty:
68-69	AMX, Javelin	Trunnion Bearing Kit (includes 2 "O" rings)	100 2301B	$29.00	Qty:
68-69	AMX, Javelin	Trunnion Upper Nut & Washer Kit -  2 required	100 2302A	$5.00	Qty:
68-69	AMX, Javelin	Lower Control Arm - Good used. Sand blasted & painted.	U319 0939	$175.00	Qty:
70-74	AMX, Javelin	Front Upper Control Arm - Used. Sand blasted & painted. Does not include ball joint or bushings.	U325 1320-1	$115.00	Qty:
68-69	AMX, Javelin	Upper Inner Bushing Kit - 2 req.	100 6801A	$59.00	Qty:
70-74	AMX, Javelin	Upper Inner Bushing Kit - 2 req.	100 6801B	$29.00	Qty:
70-74	AMX, Javelin	Upper Ball Joint - Premium quality, forged construction with nitrile rubber boot with wire retainer. Made by original supplier to AMC. The best available.	100 6701	$29.00	Qty:
68-69	AMX, Javelin	Front Shock - Gas	112 0001G	$39.00	Qty:
68-69	AMX, Javelin	Front Shock - pair (KYB-GAS)	112 0001A	$120.00	Qty:
70-74	AMX, Javelin	Front Shock Set (KYB-GAS)	112 0001B	$120.00	Qty:
70-74	AMX, Javelin	Front Shock - Gas	112 0001I	$39.00	Qty:
70-74	AMX, Javelin	Upper Control Arm Pivot Bolt Lock Nut - 4 required	100 6903A	$1.00	Qty:
68-74	AMX, Javelin	Lower Inner Bushing - 2 required	100 5003A	$19.00	Qty:
68-69	AMX, Javelin	Eccentric Bolt Kit	100 5001A	$19.00	Qty:
70-74	AMX, Javelin	Eccentric Bolt Kit	100 5001B	$19.00	Qty:
68-69	AMX, Javelin	Lower Ball Joint - Premium quality, forged construction with nitrile rubber boot with wire retainer. The best available.	100 4801A	OUT
70-74	AMX, Javelin	Lower Ball Joint - Premium quality, forged construction with nitrile rubber boot with wire retainer. The best available.	100 4801B	$29.00	Qty:
68-74	AMX, Javelin	Ball Joint Boot Set - Universal polyurethane replacement boots (2 pcs)	100 4804A	$6.00	Qty:
68-69	AMX, Javelin	RH Strut Rod Bracket	N448 5628	$75.00	Qty:
68-74	AMX, Javelin	Strut Rod Washer — Die-formed using CRS-SAE 1024 steel. Reverse engineered from N.O.S. for accuracy.	100 5503A	$20.00	Qty:
68-74	All	Strut Rod Nut - 4 required. Self locking. NOTE: for '65 with 11/16" strut rods.	100 5503C	$5.00	Qty:
68-74	AMX, Javelin	Strut Rod Bushing Kit - (Polyurethane) for 11/16" rod  (for both sides)	100 5506E	$35.00	Qty:
70-74	AMX, Javelin	Lower Control Arm Bumper (Polyurethane) - 2 req	100 4603	$9.00	Qty:
70-74	AMX, Javelin	Lower Control Arm Bumper Bracket Bolt Kit	100 4602A	$12.00	Qty:

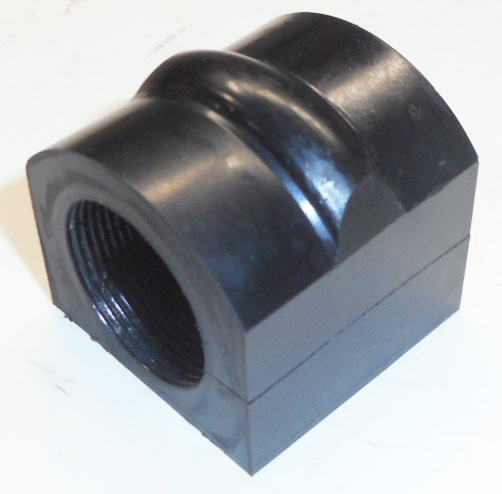

68-69	AMX, Javelin	Sway Bar Pivot Bushing (polyurethane) - 2 required	102 6001A	$13.00	Qty:
70-74	AMX, Javelin	Sway Bar Pivot Bushing (polyurethane) - 2 required	102 6001B	$9.00	Qty:
68-69	AMX, Javelin	Sway Bar Link Kit - 2 required	102 6004A	$9.00	Qty:
68-69	AMX, Javelin	LH Sway Bar Control Arm Bracket - Used. Sand blasted & painted.	U317 8931	$35.00	Qty:
68-69	AMX, Javelin	RH Sway Bar Control Arm Bracket - Used. Sand blasted & painted.	U317 8932	$35.00	Qty:
70-74	AMX, Javelin	Sway Bar Link Kit  - 2 required	102 6004B	$15.00	Qty:

68-74	AMX, Javelin	Pitman Shaft Adjusting Screw	N448 6135	$20.00	Qty:
68-74	AMX, Javelin	Pitman Shaft Seal	103 1000	$5.00	Qty:
68-74	AMX, Javelin	Pitman Shaft Nut	101 0402A	$15.00	Qty:
68-74	AMX, Javelin	Upper Shaft Seal	103 2000A	$6.00	Qty:
68-74	AMX, Javelin	Steering Gear Worm Bearing - 2 required	103 2200	$22.00	Qty:
68-74	AMX, Javelin	Steering Gear Worm Bearing	N320 0517	.50¢	Qty:
68-74 68-70	AMX, Javelin Rebel	Manual Steering Gear Spacer - Good used.	U319 1326	$75.00	Qty:
70-76	All w/o Tilt	Steering Column Lock Plate - Good used.	U812 7830	$25.00	Qty:
70-88	All	Steering Column Lock Plate Cover - Good used. 1 required	U322 8743	$15.00	Qty:
68-69	All	Steering Coupling - For 36 spline 3/4" shaft. NOTE: Full round, no flat.	107 1001A	$89.00	Qty:
70-74	AMX, Javelin	Steering Coupling ('70 with 30 spline shaft)	107 1001E	$39.00	Qty:

68-74	AMX, Javelin	Power Steering Gear - Standard Ratio CORE CHG: $75.00	102 9001D	$289.00	Qty:
68-74	AMX, Javelin	Remanufactured Power Steering Gear — Quick ratio, 3 turns, lock to lock - CORE CHG: $75.00	102 9001H	$395.00	Qty:
68-74	AMX, Javelin	Power Steering Gear Mounting Bracket - Good used. Sand blasted, painted, threads cleaned.	U317 1331	$75.00	Qty:
68-74	AMX, Javelin	Pitman Shaft Cover Bolt	106 1002	$6.00	Qty:
68-74	AMX, Javelin	Pitman Shaft Cover Seal	106 1202	$25.00	Qty:
68-74	AMX, Javelin	Pitman Shaft Bearing	105 9500	$35.00	Qty:
68-74	AMX, Javelin	Pitman Shaft Seal Kit	106 0500	$24.00	Qty:
68-74	AMX, Javelin	Upper Shaft Seal Kit (4 pieces) - 1 required	106 4500	$25.00	Qty:
68-74	AMX, Javelin	Pitman Arm Nut	101 0402A	$15.00	Qty:
69-74	AMX, Javelin	Steering Column Lower Bearing	107 6500	$40.00	Qty:
70-74	All w/Tilt Wheel	Upper Steering Column Shaft Bearing Kit - 1 required.	108 2700A	$79.00	Qty:
68-69	AMX, Javelin	Tilt Column Actuator	N320 8040	$150.00	Qty:
68-74	AMX, Javelin	Adjuster Lock Nut	106 3700	$18.00	Qty:
68-74	AMX, Javelin	Power Steering Gear Master Seal Kit	105 4500	$70.00	Qty:

68-70 | AMX, Javelin 71 | AMX, Javelin (V8 - w/Eaton Pump) 72 | AMX, Javelin (V8 - w/Exh Em Pump) 73-74 | V8

Power Steering Gear Return Hose Fitting

104 7006A

$17.00

Qty:

68-74	AMX, Javelin	Power Steering Return Hose Clamp	104 7007	$3.00	Qty:
68-74	AMX, Javelin (V8)	Power Steering Return Hose	104 7002A	$4.00	Qty:
68-71	AMX, Javelin (V8)	Power Steering Pressure Hose	104 7001A	$39.00	Qty:
72	AMX, Javelin (V8- WMT)	Power Steering Pressure Hose - 1 required	104 7001C	$45.00	Qty:
73-74	AMX, Javelin (V8)	Power Steering Pressure Hose - 1 required (see above photo)	104 7001C	$45.00	Qty:
68-72	Six	Power Steering Pressure Hose	N319 1350	$75.00	Qty:
73-74	Javelin (Six)	Power Steering Pressure Hose	N322 3398	$45.00	Qty:
68-74	AMX, Javelin	Power Steering Gear Housing End Plug Retaining Ring	N320 4822	$10.00	Qty:

68-69	V8 w/Automatic Transmission - NOTE: for single groove pulley	Rebuilt Power Steering Pump Assembly EXCHANGE ONLY - NOTE: Rebuildable core must be received by us before replacement can be shipped.	104 3001A	$249.00	Qty:
68-69	V8 w/Manual Transmission - NOTE: for double groove pulley	Rebuilt Power Steering Pump Assembly EXCHANGE ONLY - NOTE: Rebuildable core must be received by us before replacement can be shipped.	104 3001B	$249.00	Qty:
70-71	V8 w/Automatic Transmission - NOTE: for single groove pulley	Rebuilt Power Steering Pump Assembly  EXCHANGE ONLY - NOTE: Rebuildable core must be received by us before replacement can be shipped.	104 3001C	$249.00	Qty:
70-71	V8 w/Manual Transmission - NOTE: for double groove pulley	Rebuilt Power Steering Pump Assembly EXCHANGE ONLY - NOTE: Rebuildable core must be received by us before replacement can be shipped.	104 3001D	$249.00	Qty:
68-71	AMX, Javelin (V8)	Power Steering Pump Seal Kit (with Eaton pump)	104 3013A	$25.00	Qty:
68-74	Six	P/S Pump Mounting Stud - 2 required	N320 9675	$10.00	Qty:
68-70 71	V8 V8 (w/Eaton Pump)	Power Steering Pump Mounting Bracket - Good used.	U318 6475	$85.00	Qty:
68-70 71	V8 V8 (w/Eaton Pump)	Power Steering Pump Spacer - Good used - 1 required	U318 5532	$35.00	Qty:
69-70	Javelin (Six)	Power Steering Pump Shaft	N448 6724	$15.00	Qty:
68-71	AMX, Javelin (V8)	Shaft Seal (w/Eaton pump)	104 4004A	$7.00	Qty:
68-71	AMX, Javelin (V8)	Power Steering Pump Belt (without A/C)  — Reproduction of original with logo and part number.	104 5504A	$29.00	Qty:
68-71 71	V8 All (w/Eaton pump)	Power Steering Pump Belt (without A/C)	104 5504E	$29.00	Qty:
L71-74	V8	Power Steering Pump Pivot Stud - NOTE: for '71 w/Saginaw pump. Exact duplicate of original.	104 3200A	$12.00	Qty:
L71-79	V8	Power Steering Pump Mounting Bracket Set - Used. Cleaned & threads checked.	U323 2821K	$175.00	Qty:
72-74	AMX, Javelin (V8 w/o AC)	Power Steering Belt	104 5504B	$28.00	Qty:
68-E74	SIX	Power Steering and Air Conditioning Belt - NOTE: on '74 w/o Air Pump	N319 1030	$30.00	Qty:
68-71	AMX, Javelin (V8)	A/C and Power Steering Belt  - Excellent reproduction of the original raw edge style belt with the AM logo and part number - 1 required	134 2505A	$29.00	Qty:
68-70	AMX, Javelin (V8)	Power Steering Pump Pulley Key - 1 required	104 5503A	$1.00	Qty:
71-72	AMX, Javelin (V8)	Power Steering Pump Pulley Key (w/Eaton Pump) - see above photo	104 5503A	$1.00	Qty:
68-71	AMX, Javelin	Power Steering Return Hose Clamp (Note: for 3/8" I.D. hose)	104 7007	$3.00	Qty:
68-71	AMX, Javelin (V8)	Power Steering Return Hose	104 7002A	$4.00	Qty:
68-71	AMX, Javelin (V8)	Power Steering Pump Lid Wing Nut (NOTE:   Duplicate of original in stainless steel)	104 6508A	$1.50	Qty:
59-71 58	V8 All w/Eaton Pump	Power Steering Reservoir Lid Flat Washer — Reproduction made to exact original specs.	104 6508B	$3.00	Qty:

72-74	AMX, Javelin (V8)	A/C & Power Steering Belt	134 2505B	$25.00	Qty:
73	AMX, Javelin (Six) (w/AC, w/Air Pump)	Power Steering Pump Pulley - 4 7/8" O.D.	N321 8656	$35.00	Qty:
71-74	V8	Power Steering Pump Lock Nut - for '71 w/Saginaw pump	104 5502A	$8.00	Qty:
68-74	Six	Power Steering Pump Lock Nut (see above photo)	104 5502A	$8.00	Qty:
72-74	AMX, Javelin (V8)	Pump Mounting Stud Seal - 2 required	104 3003	$3.00	Qty:
71-72 73-74 68-72	AMX, Javelin (V8) AMX, Javelin AMX, Javelin (SIX)	Power Steering Pump Seal Kit (11 pieces) - 1 required	104 3013B	$29.00	Qty:
72-74	AMX, Javelin (exc FOUR)	Power Steering Pump Reservoir Cap - 1 required	104 6503	$10.00	Qty:
72-74	AMX, Javelin	Power Steering Return Hose Clamp - 2 required	104 7007	$3.00	Qty:
72-74	AMX, Javelin (V8)	Power Steering Return Hose (correct length) - 1 req	104 7002	$4.00	Qty:
72	AMX, Javelin (V8 - WAT)	Power Steering Pressure Hose - 1 required	104 7001B	$48.00	Qty:
72	AMX, Javelin (V8 - WMT)	Power Steering Pressure Hose - 1 req	104 7001C	$45.00	Qty:
73-74	AMX, Javelin (V8)	Power Steering Pressure Hose - 1 req (see above photo)	104 7001C	$45.00	Qty:

68-69	AMX (Std)	Rear Leaf Spring - 2 required	111 0000A	$169.00	Qty:
68-69	AMX (HD)	Rear Leaf Spring - 2 required	111 0000B	$179.00	Qty:
68-69	Javelin (Std)	Rear Leaf Spring - 2 required	111 0000C	$169.00	Qty:
68-69	Javelin (HD)	Rear Leaf Spring - 2 required	111 0000D	$179.00	Qty:
70	AMX (Std)	Rear Leaf Spring - 2 required	111 0000E	$159.00	Qty:
70	AMX (HD)	Rear Leaf Spring - 2 required	111 0000F	$169.00	Qty:
70	Javelin (Std)	Rear Leaf Spring - 2 required	111 0000G	$159.00	Qty:
70	Javelin (HD)	Rear Leaf Spring - 2 required	111 0000H	$169.00	Qty:
71-74	Javelin (Std)	Rear Leaf Spring - 2 required	111 0000I	$169.00	Qty:
71-74	AMX, Javelin V8 (HD)	Rear Leaf Spring - 2 required	111 0000J	$179.00	Qty:
68-74	AMX, Javelin	Rear Spring Front Bushing - 2 required	110 3302	$20.00	Qty:
68-69	AMX, Javelin	Upper Shackle Bushing  - 4 required	111 7003	$7.50	Qty:
68-69	AMX, Javelin	Lower Shackle Bushing - 2 required	111 7004	$20.00	Qty:
70-74	AMX, Javelin	Shackle Bushing - 8 req	111 7002	$5.00	Qty:
68-69	AMX, Javelin	Rear Spring and Shackle Bushing Kit (Polyurethane) - 1 req.	111 7002B	$69.00	Qty:
70-74	AMX, Javelin	Rear Spring and Shackle Bushing Kit (Polyurethane)- 1 req.	111 7002C	$69.00	Qty:
68-E70	AMX, Javelin	Front Eye Bolt (6 7/8") - 2 required	110 3303A	$28.00	Qty:
L70-74	AMX, Javelin	Front Eye Bolt (4 1/2") - 2 required	110 3303C	$10.00	Qty:
68-E70	AMX, Javelin	Eye Bolt Lock Nut - 2 req	110 3304A	$1.00	Qty:
L70-74	AMX, Javelin	Eye Bolt Lock Nut - 2 required	110 3304B	$3.50	Qty:
68-74	AMX, Javelin	Rear Axle U-Bolt - 1/2-20 fine thread - 2 required for 68-70 AMX, 4 required for all others	111 3207	$10.00	Qty:
68-74	AMX, Javelin	U-Bolt Nut - Special "High" Nut - 1/2-20 (for fine thread U-bolts)	111 3202	$4.00	Qty:
68-74	AMX, Javelin	Rear Spring U-Bolt Nut Kit - 1 required (for fine thread U-bolts - includes special "high" nuts shown above)	111 3202A	$30.00	Qty:
68-74	AMX, Javelin	Rear Spring U-Bolt Nut Kit - 1 required (for coarse thread U-bolts)	111 3202B	$10.00	Qty:

68-74 AMX & Javelin Rear Shock Mounting Three different rear shock mounting arrangements were used on these models.  1) 68-70 AMX: Both shocks are mounted behind the axle and the upper ends attach to brackets fastened to studs on trunk floor reinforcement plates. 2) 68-74 Javelin V8: The LH shock is mounted behind the axle and the RH shock is mounted in front of the axle. The LH shock upper end is attached to a bracket fastened to studs on a trunk floor mounted reinforcement plate (the same as the 68-70 AMX). The RH shock upper end is attached to the shock mounting area on the floor cross member above the rear axle. Access to the RH upper shock mounting hardware is through the oval hole at the right front of the trunk floor. 71-74 Javelin-AMX: Same as Javelin V8 above. 3) 68-74 Javelin Six: Both shocks are mounted in front of the axle and the upper ends of the shocks are attached to the shock mounting areas on the floor cross member above the rear axle. Access to the upper shock mounting hardware is through the oval holes at the front of the trunk floor.

68-74	AMX, Javelin V8	LH Lower Shock Plate - Excellent reproduction. Includes shock mount hardware.	111 3601A	$99.00	Qty:
68-70	AMX	RH Lower Shock Plate - Excellent reproduction. Includes shock mount hardware.	111 3601B	$99.00	Qty:
68-74 71-74	Javelin Javelin AMX	RH Lower Shock Plate - Excellent reproduction. Includes shock mount hardware.	111 3601C	$99.00	Qty:
68-74	AMX, Javelin	Leaf Spring Center Bolt Kit - 2 required	111 1600	$5.00	Qty:
68-74	AMX, Javelin	Rear Shock / Gas - 2 req	112 2001	$39.00	Qty:
68-74	AMX, Javelin	Rear Shock Set (KYB-Gas)	112 2001B	$120.00	Qty:
68-70	AMX, Javelin	Rear Shock Lower Nut Kit (7/16" thread) - 2 req	112 2002A	$3.00	Qty:
L70-74	AMX, Javelin	Rear Shock Lower Nut Kit (1/2" thread) - 2 required	112 2002B	$3.00	Qty:
68-70	AMX	Right Rear Upper Shock Bracket - Excellent reproduction.	112 2401A	$29.00	Qty:
68-74	AMX, Javelin V8	Left Rear Upper Shock Bracket - Excellent reproduction	112 2401B	$29.00	Qty:
68-74	AMX, Javelin	Rear Shock Upper Grommet - 2 req	112 2801	$5.00	Qty:
68-74	AMX, Javelin	Rear Shock Lower Bushing - 4 req	112 2802	$8.00	Qty:
68-74	AMX, Javelin	Upper Shock Nut - 2 required	112 2004	.50¢	Qty:
68-70	AMX, Javelin	Rear Shock Upper Bracket Nut Kit - 2 required	112 2402	$2.00	Qty:
68-69	AMX, Javelin	Rear Spring Shackle	111 7001A	$39.00	Qty:
70-74	AMX, Javelin	Rear Spring Shackle Kit - 2 required	111 7001B	$39.00	Qty:
68-70	AMX, Javelin	Torque Link Kit - excellent, very high quality reproduction	111 7501B	$299.00	Qty:
68-70	AMX	Torque Link Front Bolt	111 7500A	$9.00	Qty:
68-70	AMX	Torque Link Bushing Kit (Polyurethane) - 1 required	111 7501A	$29.00	Qty:
68-70	AMX, Javelin V8	Torque Link Axle Bracket Bolt (course thread)  - 4 required	111 8000A	$3.00	Qty:
68-70	AMX, Javelin V8	Torque Link Axle Bracket Bolt (fine thread) - 4 required	111 8000B	$12.00	Qty:
