YEAR

MODEL

DESCRIPTION

PART #

PRICE

CART

68-70

AMX, Javelin V8

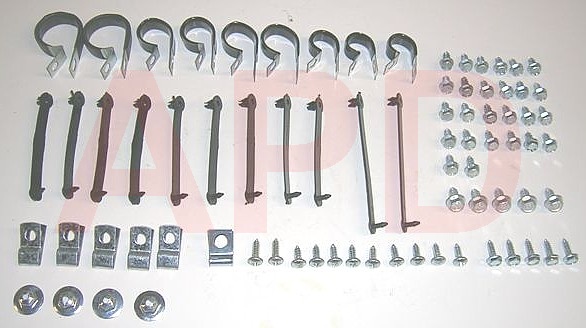

Underhood Detail Kit (81 pieces & instructions)

931 6502A

$39.00

Qty:

68-74

AMX, Javelin (V8)

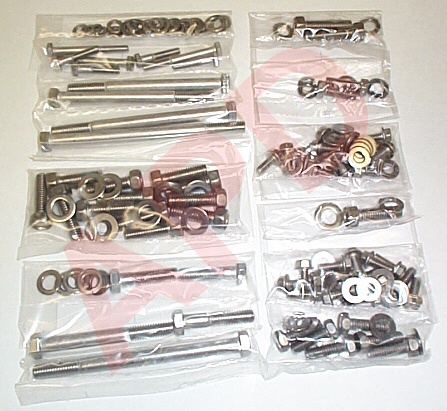

Stainless Steel Engine Bolt Kit (146 pieces) - includes hardware for: distributor, fuel pump, intake manifold, oil pan, thermostat housing, timing cover, valve covers & water pump.

910 0100A

$98.00

Qty:

68-71

232

Remanufactured Short Block Engine Assembly - NOTE: With .010"-.010" crankshaft & .040" over pistons.

910 0200C

$750.00

Qty:

70-74

AMX, Javelin (V8)

Dowel. Cylinder head to block.

910 5903A

$4.00

Qty:

68-69

AMX, Javelin (V8)

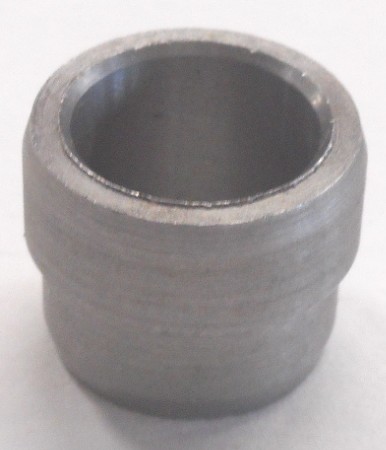

Dowel. Cylinder head to block. Stepped type are for installing 70-up heads on 66-69 blocks.

910 5903B

$8.00

Qty:

68-69

V8

Cylinder Head to Block Dowel - 4 required

910 5903C

$5.00

Qty:

68-74

68-74

AMX, Javelin (V8)

Javelin (Six)

Dowel - Bellhousing to block - 2 req.

910 2002

$7.00

Qty:

68-74

AMX, Javelin (290, 304)

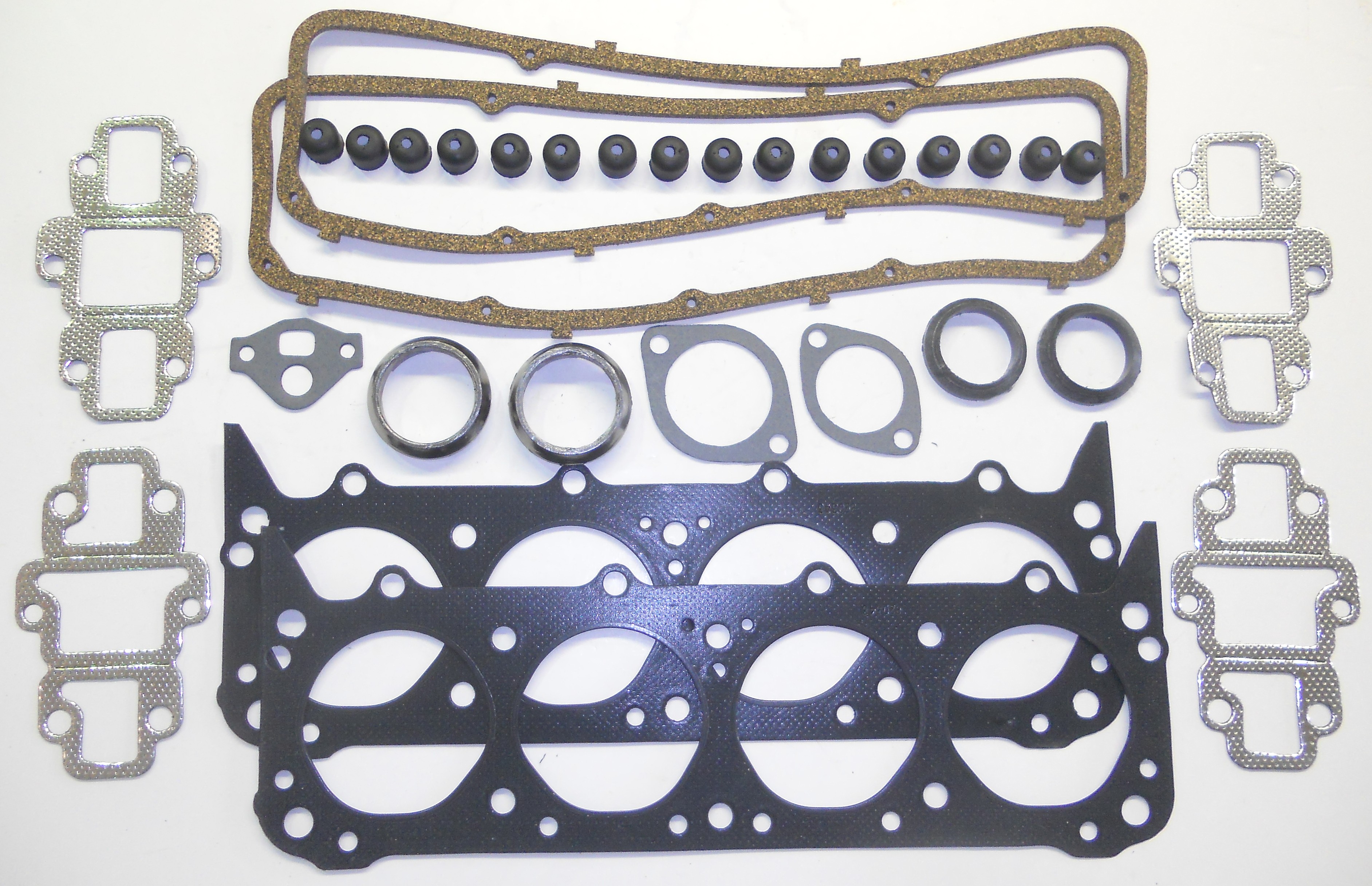

Valve Grind Gasket Set

910 6001A

$89.00

Qty:

68-74

AMX, Javelin (343, 360, 390, 401)

Valve Grind Gasket Set

910 6001B

$89.00

Qty:

68-74

199-232-258

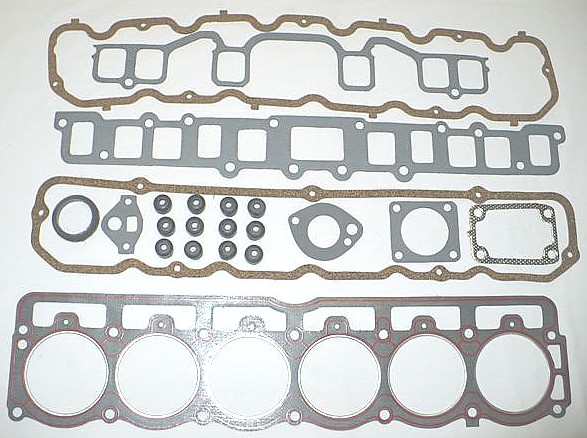

Valve Grind Gasket Set

910 6001C

$71.50

Qty:

68-70

68-69

70

AMX, Javelin (390)

AMX, Javelin (343)

AMX, Javelin (360)

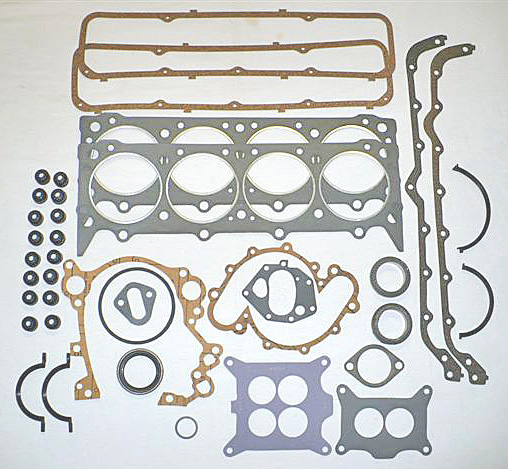

Overhaul Gasket Set

910 6002A

$109.00

Qty:



71-74

71-74



AMX, Javelin (401)

AMX, Javelin (360)

Overhaul Gasket Set

910 6002C

$109.00

Qty:

68-74

AMX, Javelin (290, 304)

Overhaul Gasket Set

910 6002B

$109.00

Qty:

70-74

AMX, Javelin (SIX)

Overhaul Gasket Set

N812 4691

$59.00

Qty:

68-74

AMX, Javelin (V8)

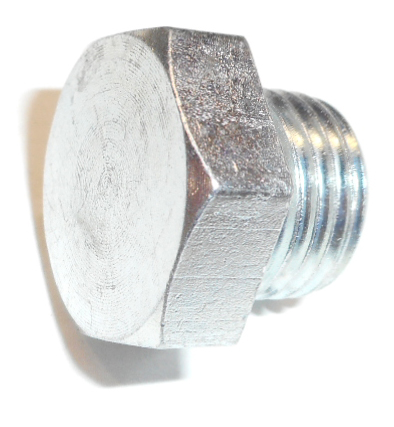

Block Drain Plug -  Correct hex head.

910 2003

$1.00

Qty:

68-74

AMX, Javelin (V8)

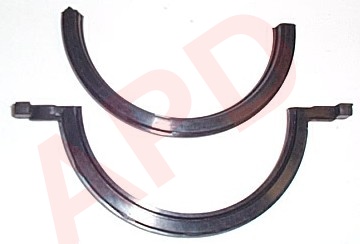

Rear Main Seal Kit. (2 piece kit)

910 3200

$12.00

Qty:

68-74

AMX, Javelin (SIX)

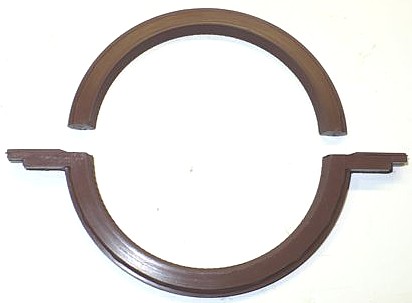

Rear Main Seal Kit

910 3200C

$13.00

Qty:

L69-71

AMX, Javelin (SIX)

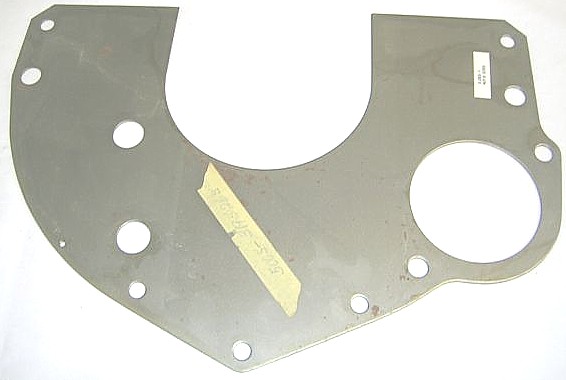

Bellhousing Plate (Spacer) - (on '69 with trans dipstick tube going into case, not pan)

N319 5265

$35.00

Qty:

68-74

AMX, Javelin (V8)

Dipstick

911 8701

$15.00

Qty:

68-74

AMX, Javelin (V8)

Tube

911 8702

$17.00

Qty:

68-71

AMX, Javelin (V8)

Seal (recommended for all years)

911 8703

.50¢

Qty:

L71-74

V8

Dipstick Tube Bracket. (Attaches under valve cover bolt. Good for 66-70 with headers.)  Exact duplicate of the original

911 8704A

$9.50

Qty:

L71-74

V8

Dipstick Tube Bracket - Polished stainless steel. Attaches under valve cover bolt. Good for 66-70 with headers

911 8704C

$15.50

Qty:

70-74

AMX, Javelin (304)

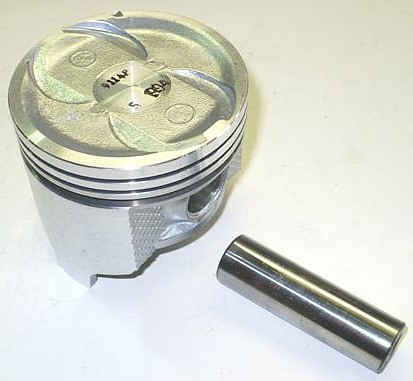

Piston & Pin Set (STD, 010, 020, 030, 040, 060)  — includes 8 pistons w/pins

911 4300B size

$550.00

Qty:

68-69

AMX, Javelin (343-4V)

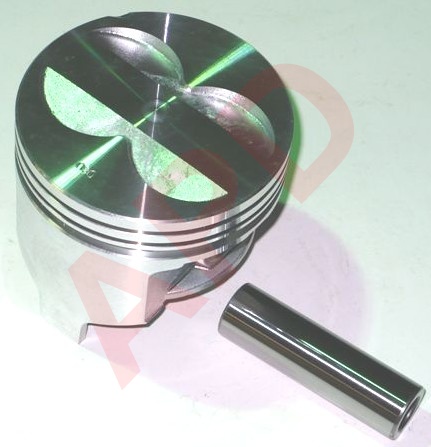

Piston & Pin Set (STD, 010, 020, 030, 040, 060) - 1 required

911 4300C size

$550.00

Qty:

70-74

AMX, Javelin (360)

Piston & Pin Set (STD, 010, 020, 030, 040, 060)  — includes 8 pistons w/pins

911 4300D size

$550.00

Qty:

68-69

AMX, Javelin (390)

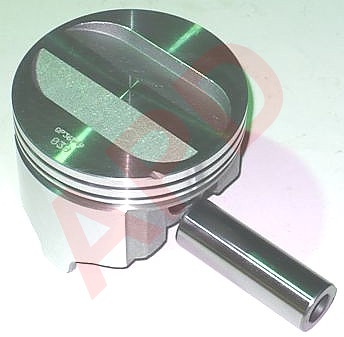

Piston & Pin (STD, 010, 020, 030, 040, 060) - Stock type cast pistons - Set of 8

911 4300E size

$550.00

Qty:

70

AMX, Javelin (390)

Piston & Pin - Stock type cast pistons - pins included  (STD, 020, 030, 040, 060)

911 4300F size

$550.00

Qty:

71-74

AMX, Javelin (401)

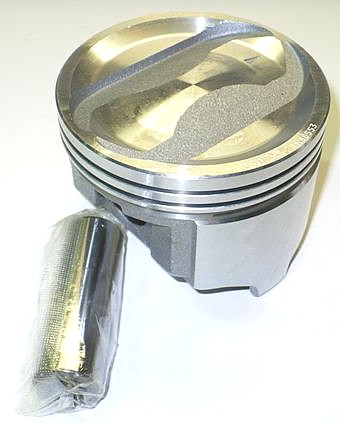

Piston & Pin Set  (STD, 010, 020, 030, 040, 060) — includes 8 pistons w/pins

911 4300G size

$550.00

Qty:

70-74

AMX, Javelin (232 - 258)

Piston (STD)

N448 8672

$35.00

Qty:

68-74

AMX, Javelin (SIX)

Piston Pin Set - .003

N320 7035

$40.00

Qty:

68-69

70-74

AMX, Javelin (290)

AMX, Javelin (304)

Piston Ring Set (Std, 010, 020, 030, 040, 050, 060)

911 4600A (size)

$75.00

Qty:

68-69

70-74

AMX, Javelin (343)

AMX, Javelin (360)

Piston Ring Set (Std, 010, 020, 030, 040, 050, 060)

911 4600B (size)

$75.00

Qty:

68-74

AMX, Javelin (390, 401)

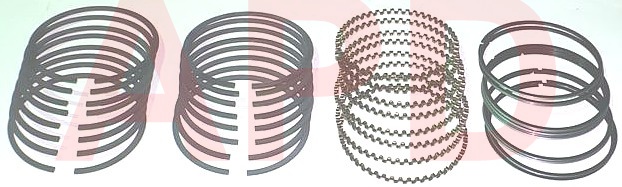

Piston Ring Set (Std, 010, 020, 030, 040, 050, 060)

911 4600C (size)

$95.00

Qty:

68-74

AMX, Javelin (199, 232, 258)

Piston Ring Set (Std, 010, 020, 030, 040, 060)

911 4600I (size)

$75.00

Qty:

68-74

AMX, Javelin (V8)

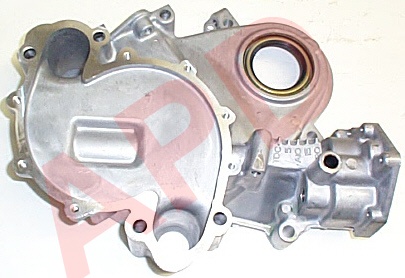

Timing Cover. Includes crank seal and pressed-in oil pump shaft.

911 2001

$249.00

Qty:

68-74

AMX, Javelin (V8)

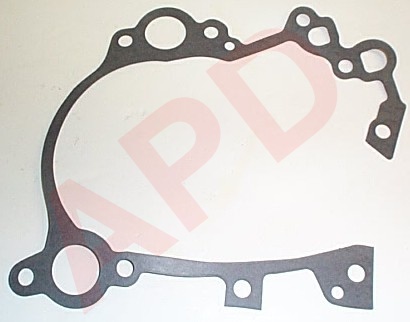

Timing Cover Gasket

911 2100

$3.50

Qty:

68-E72

Javelin (SIX)

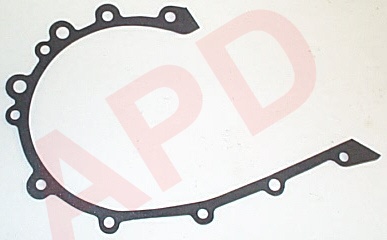

Timing Cover Gasket

911 2100A

$3.00

Qty:

L72-74

Javelin (SIX)

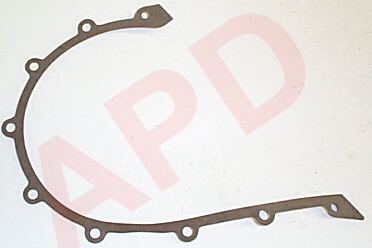

Timing Cover Gasket

911 2100B

$2.50

Qty:

68-74

AMX, Javelin (V8)

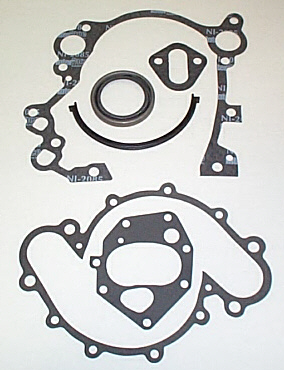

Timing Cover Gasket and Seal Set (6 pieces)

911 2102

$9.50

Qty:

68-74

Javelin (SIX)

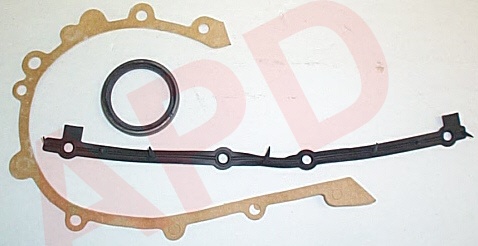

Timing Cover Gasket and Seal Kit

911 2102A

$15.00

Qty:

68-74

AMX, Javelin (V8)

Timing Cover to Block Dowel - 2 required

911 2003

$5.00

Qty:

67-79

V8

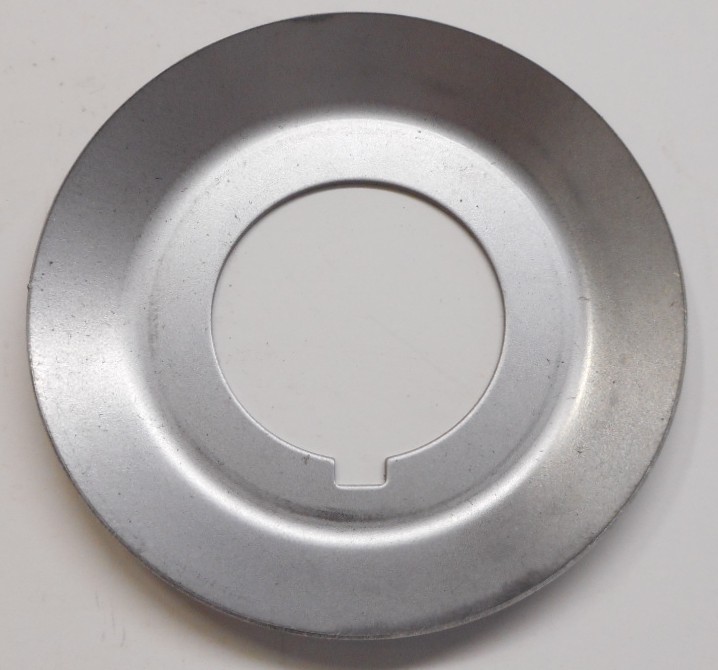

Crankshaft Oil Shedder - 1 required

911 3203A

$15.00

Qty:

68-74

68-74

AMX, Javelin (290, 304, 343, 360)

AMX, Javelin (199, 232, 258)

Rod Bolt Kit. Includes nut.

911 3602A

$3.75

Qty:

66-79

290, 304, 343, 360

Connecting Rod Bolt Kit - ARP - 1

911 3602B

$85.00

Qty:

70-76

390, 401

Connecting Rod Bolt Kit - ARP - 1

911 3602C

$95.00

Qty:

68-74

AMX, Javelin (290, 304, 343, 360)

Rod Bolt Nut - 11/32"-24 thread

911 3602D

$2.00

Qty:

68-74

AMX, Javelin (290, 304, 343, 360)

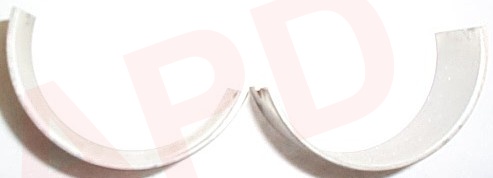

Rod Bearing (STD, .001, 010, 020, 030) - requires 6 or 8

911 3800A size

$10.00

Qty:

68-74

68-74

290, 304, 343, 360

199, 232, 258

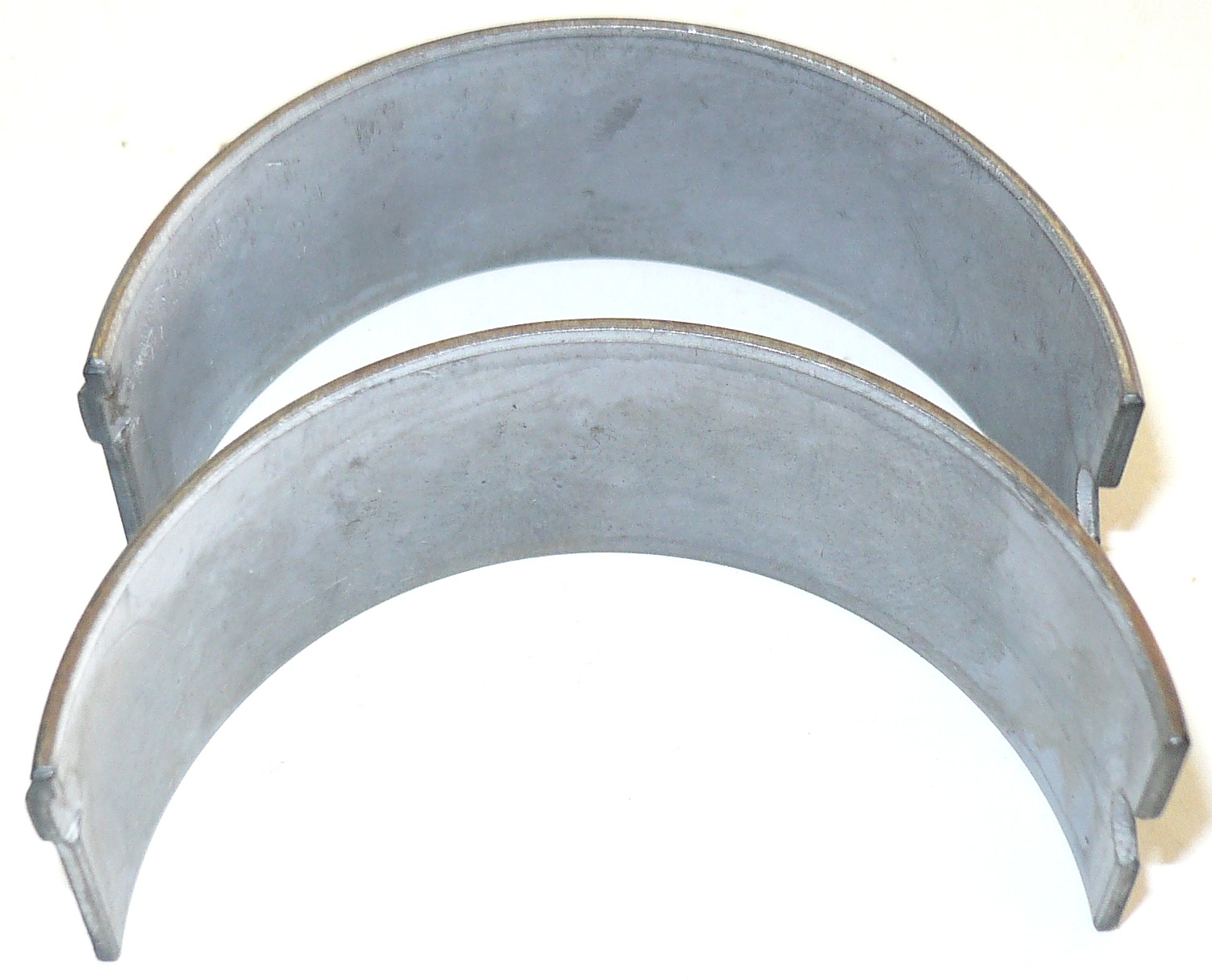

Rod Bearing (.002)

N320 7836

$15.00

Qty:

68-74

AMX, Javelin (390, 401)

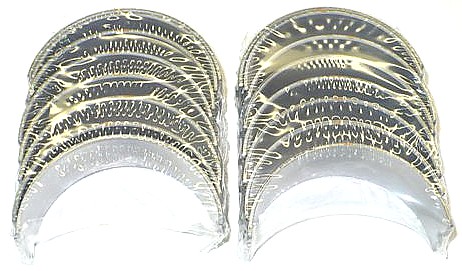

Rod Bearing Set (STD, 010, 020, 030)

911 3800B size

$200.00

Qty:

68-74

AMX, Javelin (390, 401)

Rod Bearing - (Std) - 8 required  (We have 3 available)

N320 8890

$15.00

Qty:

68-76

390-401

Rod Bearing (.010) - 8 required  (We have 1 available)

N320 8893

$15.00

Qty:

68-74

AMX, Javelin (V8)

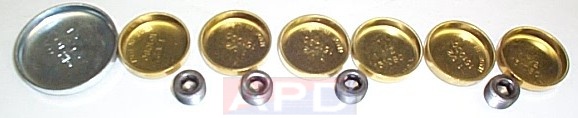

Block Plug Kit (brass) NOTE: Includes steel cam plug and oil galley plugs. Does not include plugs for heads.

910 3800A

$16.00

Qty:

68-74

Javelin (199, 232, 258)

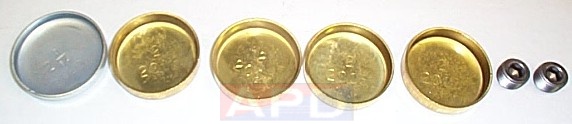

Block Plug Kit (brass)

910 3800C

$20.00

Qty:

68-74

AMX, Javelin (V8)

Block Core Hole ("Freeze") Plug - 1 ½"

910 3801A

$1.00

Qty:

68-74

Javelin (199, 232, 258)

Block Core Hole ("Freeze") Plug - 2"

910 3801B

$1.00

Qty:

68-74

AMX, Javelin (V8)

Camshaft

910 4000A

$139.00

Qty:

70-74

AMX, Javelin (390 , 401)

Camshaft

910 4000B

$145.00

Qty:

68-74

Javelin (SIX)

Camshaft

910 4000E

$150.00

Qty:

68-74

AMX, Javelin (V8)

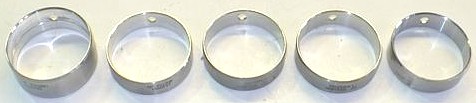

Camshaft Bearing Set (STD)

910 4101A

$54.00

Qty:

67-79

66

V8

290

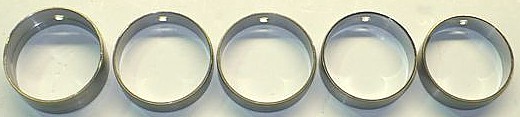

Camshaft Bearing Set - .010 oversize

910 4101H

$79.00

Qty:

68-74

Javelin (SIX)

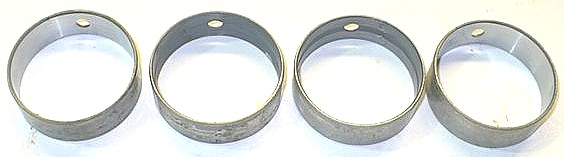

Camshaft Bearing Set

910 4101E

$55.00

Qty:

68-74

AMX, Javelin (V8)

Camshaft Rear Plug

910 4102

$2.00

Qty:

68-74

AMX, Javelin (V8)

Camshaft Woodruff Keys. Inner is for timing gear. Outer is for distributor drive gear. - 2 req

911 3403

$3.50

Qty:

68-74

AMX, Javelin (V8)

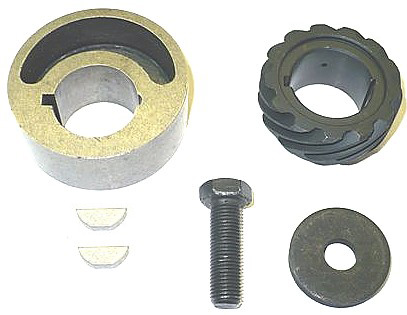

Fuel Pump Eccentric & Distributor Drive Gear Kit (5 pieces) - 1 required

911 3404AK

$119.00

Qty:

68-74

AMX, Javelin (V8)

Woodruff Key. For crank gear and damper.

911 3202B

$3.00

Qty:

72-79

232

Reground Crankshaft (30-30) - Includes bearings

N812 5449R

$250.00

Qty:

72-74

Javelin (258)

Reground Crankshaft (20-20) - can use for 81-up with 72-80 damper (includes bearings)

N813 2619R

$350.00

Qty:

68-74

AMX, Javelin (V8)

Timing Cover Seal

911 2300

$5.00

Qty:

68-74

Javelin (SIX)

Timing Cover Seal  - 1 required

911 2300A

$5.00

Qty:

68-74

AMX, Javelin (V8)

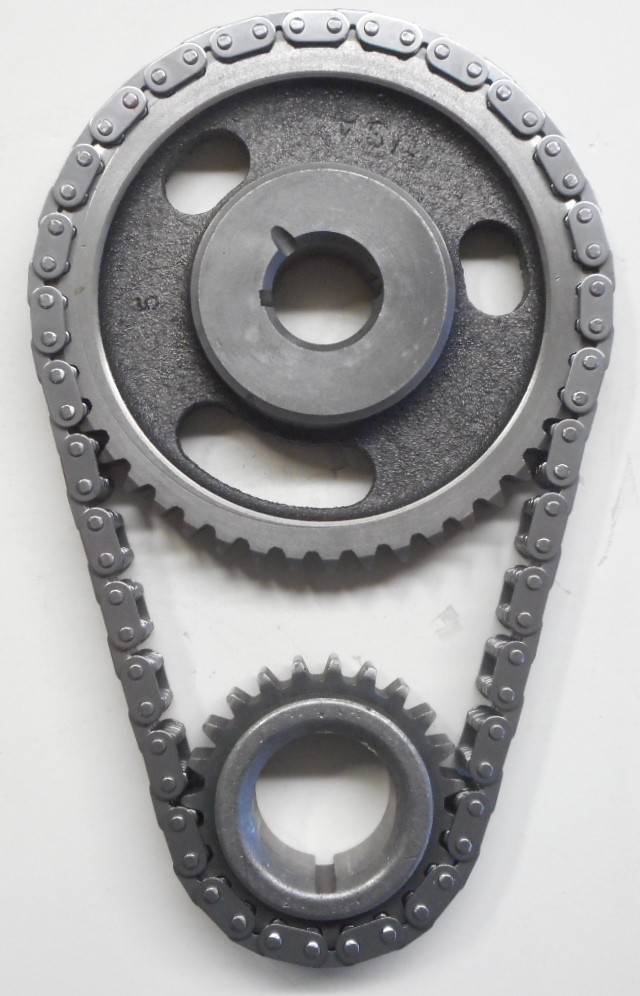

Timing Chain and Gears Set

911 3000A

$49.00

Qty:

68-74

Javelin (SIX)

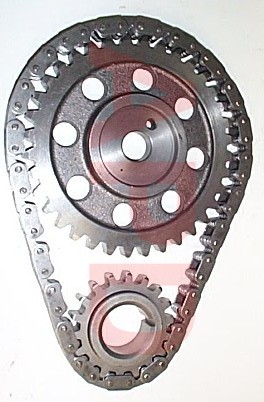

Timing Chain and Gears Set

911 3000D

$49.00

Qty:

68-74

AMX, Javelin (V8)

Timing Chain and Gears Set (H.D. Double Roller)

911 3000F

$89.00

Qty:

68-74

AMX, Javelin (V8)

Distributor Drive Gear

930 4201A

$35.00

Qty:

68-74

AMX, Javelin (V8)

Special Flatwasher - Good used — Distributor drive gear and fuel pump eccentric to camshaft.

U318 9338

$20.00

Qty:

68-74

AMX, Javelin (V8)

Special Bolt. Distributor drive gear and fuel pump eccentric to camshaft.

911 3405B

$5.00

Qty:

68-69

290

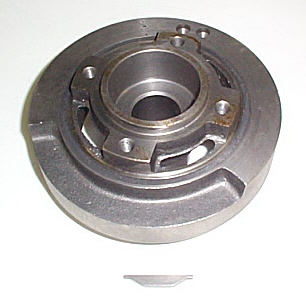

Crank Damper - Used. Sand blasted & primed.

U318 0477

$175.00

Qty:

70-72

AMX, Javelin (304)

Crank Damper (includes key)

910 4501B

$149.00

Qty:

73-74

AMX, Javelin (304)

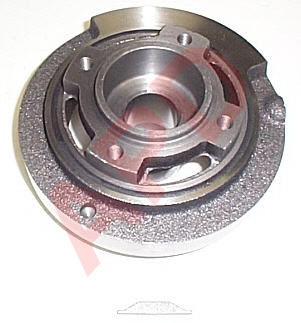

Crank Damper (includes key)

910 4501C

$149.00

Qty:

70

70-72

AMX, Javelin (390)

AMX, Javelin (360)

Crank Damper (includes key)

910 4501E

$149.00

Qty:

73-74

AMX, Javelin (360)

Crankshaft Damper

910 4501F

$89.00

Qty:

68-69

AMX, Javelin (390)

Crank Damper (includes key)

910 4501G

$149.00

Qty:

71-72

AMX, Javelin (401)

Crank Damper (includes key)

910 4501H

$149.00

Qty:

73-74

AMX, Javelin (401)

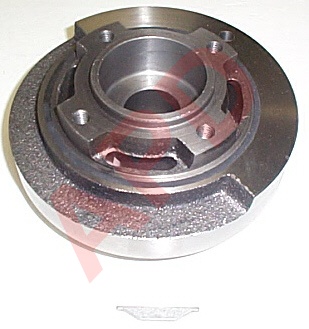

Crank Damper (includes key)

910 4501I

$149.00

Qty:

68-74

Javelin (199, 232, 258)

Crank Damper (excellent reproduction)

910 4501J

$99.00

Qty:

68-74

AMX, Javelin (V8)

Damper Bolt. Attaches damper to crank.

910 4502A

$10.00

Qty:

68-74

AMX, Javelin (V8) (199-232-258)

Damper Washer

910 4502B

$15.00

Qty:

68-74

AMX, Javelin (V8)

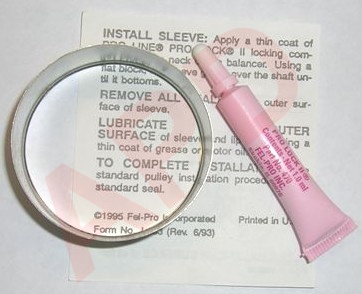

Damper Repair Sleeve

910 4503A

$20.00

Qty:

73-74

AMX, Javelin V8

Crankshaft Pulley

N321 6630

$175.00

Qty:

68-74

AMX, Javelin (V8)

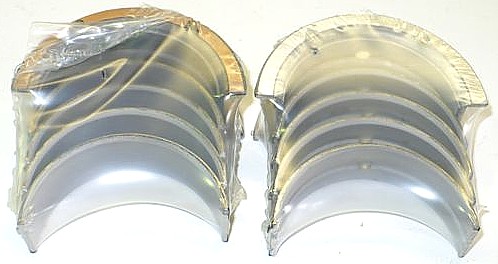

Main Bearing Set (STD, 010, 020, 030)

910 2300C size

$189.00

Qty:

68-74

Javelin (199, 232, 258)

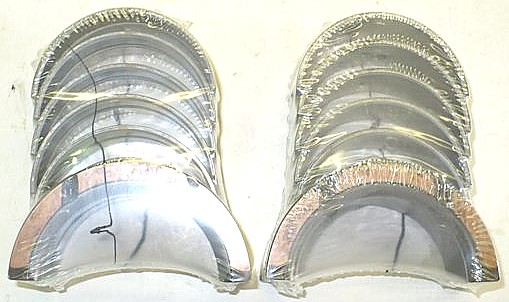

Main Bearing Set (STD, .010, .020, .030)

910 2300D size

$50.00

Qty:

68-74

Javelin (199, 232, 258)

#1, 2, 4, 5, 6, 7  Main Bearing ( .002)

N320 7956

$10.00

Qty:

68-74

Javelin (199-232-258)

#1, 2, 4, 5, 6, 7 Main Bearing ( .010)

N320 7957

$10.00

Qty:

68-74

Javelin (199-232-258)

#3 Main Bearing (Std)

N320 7959

$15.00

Qty:

68-74

Javelin (199-232-258)

#3 Main Bearing (.010 )

N320 7962

$15.00

Qty:

68-74

AMX, Javelin (V8)

#3  Main Bearing (.002)

N812 1338

$15.00

Qty:

68-74

72-74

AMX, Javelin (V8)

Javelin (SIX)

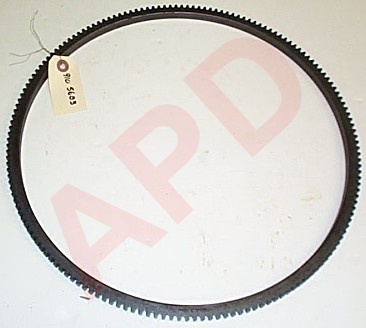

Flywheel Ring Gear (WMT)

910 5603

$32.00

Qty:

68-71

Javelin (199, 232, 258)

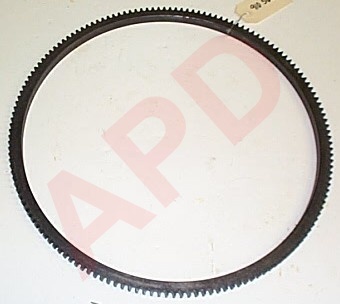

Flywheel Ring Gear (Manual transmission)

910 5603A

$35.00

Qty:

68-74

AMX, Javelin

Flywheel Bolt (w/manual transmission)

910 5602

$20.00

Qty:

64-88

All (exc 287-327-Four)

Flywheel Bolt (w/manual transmission) - Used. 6 required.

U317 0524

$10.00

Qty:

72-74

AMX, Javelin (304)

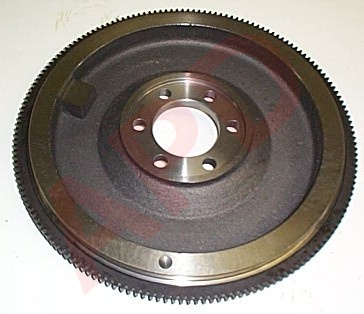

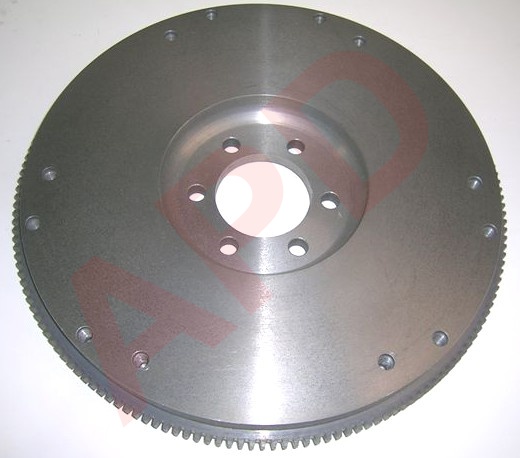

Flywheel (manual transmission) - drilled for 10½" and 11" pressure plate

910 5601C

$195.00

Qty:

72-74

AMX, Javelin (401)

Flywheel (Manual transmission)

910 5601D

$195.00

Qty:

72-74

AMX, Javelin (360)

Flywheel (Manual transmission)

910 5601E

$195.00

Qty:

72-74

Javelin (SIX)

Flywheel (Manual transmission) — Drilled for 9 1/8", 9 1/4" & 10" clutch covers

910 5601F

$249.00

Qty:

SECTION III - HEAD PARTS

B

68-74

AMX, Javelin (V8)

Core Hole (Freeze) Plug (1 1/2")

910 3801A

$1.00

Qty:

B

68-74

AMX, Javelin (V8)

Core Hole (Freeze) Plug (1") - 4 req (2 per head)

910 5905A

$2.50

Qty:

68-74

AMX, Javeline (199-232-258)

Core Hole (Freeze) Plug - 3 required

910 5905B

$1.00

Qty:

68-74

199-232-258

Cylinder Head Core Hole (Freeze) Plug - Brass - 3 required

910 5905C

$3.00

Qty:

C

70-74

AMX, Javelin (304)

Head Gasket - 304

910 6100A

$22.00

Qty:

C

68-69

70-74

68-70

71-74

AMX, Javelin (343)

AMX, Javelin (360)

AMX, Javelin (390)

AMX, Javelin (401)

Head Gasket - 2 required

910 6100D

$18.00

Qty:

64-80

199-232-258

Head Gasket

910 6100G

$15.00

Qty:

64-80

199-232-258

Valve Cover Gasket

910 7200A

$10.00

Qty:

68-74

AMX, Javelin (V8)

Valve Cover Gasket (cork)

910 7200E

$9.00

Qty:

F

68-74

(V8)

Valve Cover Set (new chrome replacements)

910 6801D

$39.00

Qty:

G

68-74

AMX, Javelin (V8)

Valve Cover Bolt - Upper inner - 4 required

910 6802A

$3.00

Qty:

68-74

AMX, Javelin (V8)

Replacement Valve Cover Bolt - for lower/outer  (not like original) - 10 req

910 6802B

$1.50

Qty:

67-74

66

V8

290

Valve Cover Washer  - 10 required

910 6802C

$5.00

Qty:

68-74

AMX, Javelin (V8)

Valve Cover Bolt Kit (stainless steel) - 14 bolts/14 washers

910 6802E

$15.00

Qty:

E

70-74

AMX, Javelin (V8)

Head Bolt Set

910 6300B

$155.00

Qty:

70-74

V8

Head Bolt - Long - Used - 18 required

U319 4681

$3.00

Qty:

70-74

V8

Head Bolt - Short - Used - 10 required

U319 4682

$3.00

Qty:

E

68-69

AMX, Javelin (V8)

Head Bolt Set

910 6300A

$125.00

Qty:

68-69

V8

Head Bolt - Short -Used - 10 required

U318 6287

$3.00

Qty:

68-69

V8

Head Bolt - Long - Used - 18 required

U318 6288

$3.00

Qty:

68-74

Javelin (199-232-258)

Head Bolt - 4 7/16" long (64-67 requires 12, 68-80 requires 10 or 11)

910 6300E

$2.00

Qty:

70-72

AMX, Javelin (V8)

Vacuum Hose Tee - original AMC

910 6907B

$12.00

Qty:

H

68-74

AMX, Javelin (290-304)

Valve Spring

910 8300A

$5.00

Qty:

H

68-72

AMX, Javelin (343-360-390-401)

Valve Spring (see above photo)

910 8300A

$5.00

Qty:

H

73-74

360-401

Intake Valve Spring (see above photo)

910 8300A

$5.00

Qty:

I

68-72

AMX, Javelin (V8)

Valve Keepers

910 8500A

$1.50

Qty:

67-71

Javelin (SIX)

Intake Valve Keepers - see above photo

910 8500A

$1.50

Qty:

I

73-74

AMX, Javelin (304)

Valve Keepers

910 8500B

$1.25

Qty:

I

73-74

AMX, Javelin (360-401)

Intake Valve Keepers (see above photo)

910 8500B

$1.25

Qty:

I

68-72

Javelin (Six)

Exhaust Valve Keepers - requires 12 (see above photo)

910 8500B

$1.25

Qty:

I

73

AMX, Javelin (Six)

Valve Keepers - requires 24 (see above photo)

910 8500B

$1.25

Qty:

I

74

Javelin (Six) (without valve rotatoers)

Valve Keepers - requires 24 (see above photo)

910 8500B

$1.25

Qty:

I

73-74

AMX, Javelin (360-401)

Exhaust Valve Keepers

910 8500C

1.25

Qty:

68-72

73

AMX, Javelin         (V8)

AMX, Javelin (360-401)

Rocker Arm Stud

911 0001

$3.00

Qty:

K

68-72

73

AMX, Javelin (V8)

AMX, Javelin (360-401)

Rocker Arm Nut (Correct self-locking style)

911 0002

$1.00

Qty:

73

74

72-74

304

V8

Six

Rocker Arm Bolt (for pivot stands)

911 0102

$2.50

Qty:

73

74

304

V8

Rocker Arm (for pivot stands) - 16 required

910 9701

$6.00

Qty:

L

68-72

73

V8

360-401

Rocker Arm Kit (includes arm, pivot ball, and nut)

910 9702

$12.00

Qty:

74

Javelin (SIX-CAST)

Rocker Arm

N322 3455

$20.00

Qty:

M

73

74

AMX, Javelin (304 - steel)

AMX, Javelin (V8 - steel)

Rocker Arm Pivot (replaces 1 piece aluminum type) - 8 req

911 0101A

$5.00

Qty:

M

L72-74

Javelin (SIX - steel)

Rocker Arm Pivot (replaces 1 piece aluminum type) - 6 req (see above photo)

911 0101A

$5.00

Qty:

O

68-69

AMX, Javelin (V8)

Push Rod

910 9500A

$4.00

Qty:

O

70-72

AMX, Javelin (V8)

Push Rod

910 9500B

$4.50

Qty:

O

73

AMX, Javelin (360-401)

Push Rod (see above photo)

910 9500B

$4.50

Qty:

O

73

AMX, Javelin (304)

Push Rod

910 9500C

$3.50

Qty:

O

74

AMX, Javelin (V8)

Push Rod (see above photo)

910 9500C

$3.50

Qty:

68-69

Javelin (SIX)

Valve Push Rod (199, 232)

910 9500E

$4.00

Qty:

70-74

Javelin (SIX)

Valve Push Rod - for cast type rockers

N321 0203

$4.00

Qty:

P

68-74

AMX, Javelin (exc cast iron 196)

Valve Lifter (standard hydraulic lifter)

910 8801

$9.00

Qty:

Q

68-72

AMX, Javelin (290-304)

Exhaust Valve - stainless steel

910 7801A

$15.00

Qty:

Q

73-74

AMX, Javelin (304)

Exhaust Valve - stainless steel

910 7801B

$12.50

Qty:

Q

73-74

AMX, Javelin (360-401)

Exhaust Valve - stainless steel

910 7801C

$12.50

Qty:

Q

L70-72

AMX, Javelin (360-390-401)

Exhaust Valve (1.680" head) - stainless steel

910 7801D

$15.00

Qty:

Q

68-E70

68-69

AMX, Javelin (360-390)

AMX, Javelin (343)

Exhaust Valve (1.625" head)

910 7801G

$16.00

Qty:

75-76

AMX, Javelin (360 - 401)

Exhaust Valve

910 7801J

$12.50

Qty:

R

68-72

68-72

AMX, Javelin (290-304)

AMX, Javelin (Six)

Intake Valve

910 7701A

$9.50

Qty:

R

6-72

AMX, Javelin (343-360-390-401)

Intake Valve

910 7701B

$15.00

Qty:

R

73-74

AMX, Javelin (304)

Intake Valve

910 7701C

$15.00

Qty:

R

73-74

AMX, Javelin (360-401)

Intake Valve

910 7701D

$9.50

Qty:

S

68-74

AMX, Javelin

Valve Seal (Rubber cup type replacements)

910 7706A

$1.00

Qty:

73-88

V8 & Six

Valve Seal (Original hard nylon type)

910 7706B

.50¢

Qty:

SECTION IV - MANIFOLDS

Intake Manifold. Used manifolds available. Call for availability/price.

71-74

AMX, Javelin (V8)

RH Exhaust Manifold. "Free breathing" for "dogleg" heads.

910 6707A

$229.00

Qty:

71-74

AMX, Javelin (V8)

LH Exhaust Manifold. "Free breathing" for "dogleg" heads.

910 6707B

$229.00

Qty:

68-74

AMX, Javelin (V8)

Plug Gasket -for use with injection tubes

930 0102

$1.00

Qty:

70-74

AMX, Javelin (V8)

Exhaust Manifold Gasket (aftermarket) - 2 req

910 6708B

$9.00

Qty:

68-74

199-232-258

Exhaust Manifold - includes plugs for A..I.R. tubes

910 6707D

$195.00

Qty:

68-74

V8

Exhaust Manifold Bolt - w/special drilled end - requires 12

910 6709B

$3.00

Qty:

68-74

AMX, Javelin (V8)

Exhaust Manifold Bolt Washer. (Correct 7/8" O.D. flatwasher)

178 1400A

.50¢

Qty:

68-74

AMX, Javelin (V8)

Intake Manifold Gasket Set. (Includes main gasket and both seals) - 3 piece set

910 6705

$30.00

Qty:

68-74

199-232-258

Intake & Exhaust Manifolds to Head Gasket - aftermarket gasket for intake and exhaust manifolds - no exhaust gasket was used originally

910 6705D

$12.00

Qty:

68-70

AMX, Javelin (V8)

Heat Riser Gasket

910 6713A

$2.50

Qty:

71-74

AMX, Javelin (V8)

Heat Riser Gasket - with 2 1/4" outlet

910 6713B

$2.00

Qty:

68-74

V8

Oil Filler Pipe - brushed stainless steel

910 2202A

$22.00

Qty:

68-74

V8

Oil Filler Pipe - good used original; cleaned, sand-blasted & primered

U319 8950

$35.00

Qty:

68-72

V8 (exc 390)

Oil Filler Cap - Good used. Bead blasted & primed.

U317 4215

$75.00

Qty:

73-74

V8

Oil Filler Cap - Correct flat plastic style.

910 2201

$15.00

Qty:

68-74

V8

Oil Filler Cap to Air Cleaner Hose - sold per foot

911 1607A

$2.00 per foot

Qty:

68-74

Javelin (SIX)

Oil Filler Cap

910 2201A

$5.00

Qty:

68-74

Javelin (SIX)

Valve Cover to Air Cleaner Hose (molded)

911 1602

$15.00

Qty:

68-69

V8

Oil Cap Hose Clamp (spring-type clamp.)

911 1608A

$1.00

Qty:

68-69

AMX, Javelin (V8 - w/4V)

PCV Valve Hose

911 1703A

$17.00

Qty:

68-69

70-74

AMX, Javelin (V8-w/2V)

AMX, Javelin (V8)

PCV Valve Hose

911 1703B

$10.00

Qty:

73-74

V8

PCV Hose Clamp - spring type clamp

911 1704

$1.00

Qty:

68-70

AMX, Javelin (V8 less A/T)

Intake Manifold Plug - 1/8-27 square head.

910 6719A

$1.00

Qty:

71

AMX, Javelin (V8-4 spd, less A/C, less cowl induction)

Intake Manifold Plug - 1/8-27 square head. (see above photo)

910 6719A

$1.00

Qty:

72-74

AMX, Javelin (V8 less A/C)

Intake Manifold Plug - 1/8-27 square head. (see above photo)

910 6719A

$1.00

Qty:

68-74

AMX, Javelin (V8)

PCV Valve Grommet

911 1903

$5.00

Qty:

68-74

AMX, Javelin (V8)

PCV Valve (original style) - black turned steel

911 1901A

$5.00

Qty:

68-74

Javelin (SIX)

PCV Valve Grommet (various-please call)

911 1902B

$3.00

Qty:

68-74

AMX, Javelin (199-232-258 - Outer)

Exhaust Manifold to Intake Manifold Stud

910 6702A

$3.50

Qty:

68-74

AMX, Javelin (199-232-258 - Inner)

Exhaust Manifold to Intake Manifold Stud (see above photo)

910 6702A

$3.50

Qty:

68-74

AMX, Javelin (V8)

Intake Manifold Bolt - replacement hex head bolt

910 6703

$1.00

Qty:

68-74

Javelin (199-232-258)

Intake to Exhaust Manifold Gasket

910 6704A

$5.00

Qty:

68-74

AMX, Javelin (V8)

Oil Pan Gasket Set. Includes both side gaskets and front and rear seals.

911 5201

$10.00

Qty:

68-74

Javelin (SIX)

Oil Pan Gasket Set

911 5201A

$21.00

Qty:

68-74

AMX, Javelin

Rear Oil Pan Seal

911 5202

$3.00

Qty:

68-74

AMX, Javelin (V8)

Front Oil Pan Seal

911 5203

$1.50

Qty:

68-74

Javelin (SIX)

Front Oil Pan Seal

N317 2848

$2.50

Qty:

68-74

Javelin (SIX)

Oil Pump Assembly

911 5401A

$99.00

Qty:

68-74

Javelin (SIX)

Oil Pump to Block Gasket

N317 2332

$1.50

Qty:

68-74

Javelin (SIX)

Oil Pump to Block Dowel

N317 3090

$5.00

Qty:

68-74

AMX, Javelin (V8)

Oil Pump Tube and Screen. (Should be replaced if bearing failure occurred prior to rebuild.)

Note: Why replace oil pump screens?  The oil pump screen smooths the flow of oil into the pump. It usually keeps out debris that can lock up the pump. It is the only thing in an engine that assists the pump in its function. The other engine parts rely on the pump to help them. If we could take a screen apart, it would be easy to clean. Unfortunately, we can't. Therefore, it is impossible to clean it completely. Any debris left inside has the potential of locking up the pump. Close examination of a used screen assembly after attempts to clean it may reveal a dark brown stain, which is usually a varnish type coating. The most common screen mesh has a .040" square hole between the wires. Oil flow is directly proportional to the area of the hole. If the varnish coating is .0051 thick, our square hole is down to .0301 on a side. This is a 25% reduction on a side, and a 44% reduction in the total area and flow [(.040")2 - (.030")2/(.040")2 = 43.75%]. Oil pump screens should always be replaced.

911 6701

$39.00

Qty:

68-74

Javelin (SIX)

Oil Pump Pick Up Tube & Screen

911 6701A

$18.00

Qty:

68-74

AMX, Javelin

Drain Plug Kit - includes gasket

911 5103A

$2.50

Qty:

68-74

AMX, Javelin

Magnetic Drain Plug Kit - includes gasket. (Traps metal particles and holds them until your next oil change. Cheap preventative maintenance.)

911 5103B

$10.00

Qty:

68-74

AMX, Javelin

Drain Plug Gasket

911 5104

$1.50

Qty:

68-74

AMX, Javelin (V8)

Oil Pan Bolts - correct replacement bolts - 1/4" (requires 14)

910 6802A

$3.00

Qty:

68-74

AMX, Javelin (V8)

Oil Pump Kit - 5 pieces

911 5500B

$33.00

Qty:

68-74

AMX, Javelin (V8)

Engine Oil Pump Primer Tool (excellent quality)

911 5555A

$55.00

Qty:

68-74

V8

Oil Pump Cover — NOTE: This is a reproduction of  the  oil pump cover that has the provision for the bypass valve.

911 6401A

$55.00

Qty:

68-74

AMX, Javelin (V8)

Oil Pump Cover  — NOTE: This is a reproduction of the later style oil pump cover that does NOT have a provision for the bypass valve assembly.

911 6401B

$55.00

Qty:

66-79

290-304-343-360-390-401

Oil Pump Cover Bolt Kit - Stainless steel

911 6402

$7.50

Qty:

68-74

AMX, Javelin (V8)

Oil Pump Cover Gasket

911 6500

$1.50

Qty:

68-74

V8

Oil Pressure Release Valve Spring Cap - Excellent reproduction.

911 7801A

$25.00

Qty:

68-74

AMX, Javelin (V8)

Release Valve Plunger

911 7601

$11.00

Qty:

62-79

64-86

62-64

V8

199-232-258

196 (Alum)

Oil Filter (long style as original)

912 0601B

$8.00

Qty:

68-74

AMX, Javelin (V8)

Bypass Valve Spring

912 1700

$5.00

Qty:

68-74

AMX, Javelin (V8)

Bypass Valve

912 1500

$10.00

Qty:

68-74

68-74

V8

232-258

Oil Filter Bypass Valve Retainer — Good used

U317 3225

$20.00

Qty:

68-74

AMX, Javelin

Oil Filter Connector

912 2300

$20.00

Qty:

68-74

AMX, Javelin (V8)

Motor Mount Bracket to Block Attachment Kit - 12 piece kit (does both sides)

910 0403

$4.00

Qty:

68-74

AMX, Javelin (V8)

Motor Mount

910 0901A

$12.00

Qty:

68-74

AMX, Javelin (V8)

Polyurethane Motor Mount Set

910 0901K

$169.00

Qty:

68-70

Javelin (SIX)

Motor Mount

910 0901B

$12.00

Qty:

71-72

Javelin (SIX)

Motor Mount - RH without A/C

910 0901B

$12.00

Qty:

68-74

232-258

Polyurethane Motor Mount Set - 1 required

910 0901H

$79.00

Qty:

71-72

Javelin (SIX)

Motor Mount -  Javelin LH without A/C

910 0901C

$12.00

Qty:

73-74

Javelin (SIX)

Motor Mount

910 0901D

$12.00

Qty:

68-70

AMX, Javelin (V8)

Motor Mount to Bracket Attachment Kit - 12 piece kit (does both sides) - fine thread

910 0903A

$2.00

Qty:

71-74

AMX, Javelin (V8)

Motor Mount to Bracket Attachment Kit - 12 piece kit (does both sides)  - coarse thread  (see above photo)

910 0903B

$2.00

Qty:

68-74

AMX, Javelin (V8)

Motor Mount to Crossmember Attachment Kit - 8 piece kit - fine thread  (does both sides)

910 0902

$2.00

Qty:

68-74

AMX, Javelin (V8)

Motor Mount to Crossmember Nut Kit - coarse thread

910 0902A

$2.00

Qty:
Return to top of page
