AMX & JAVELIN
BODY / BUMPERS

phone: (937) 678-7249    fax: (937) 678-5886   email: sales@americanpartsdepot.com

secure ordering

Bumpers | Bumper/Parts | Cowl Seals | Fender Parts | Floor Pans | Hoods | Hoods / Insulators/Parts | LH Quarter Extension

License Plate Parts | Quarter Repair Panels | Rear Valance & Rocker Repair Panels | Spoilers | Trunk Drop-Offs



YEAR

MODEL

DESCRIPTION

PART #

PRICE

CART

Due to the lengthy download time involved for those of you with dial-up, we will only display one example of our excellent quality hood insulators.

68-69

AMX, Javelin

Hood Insulator - 12 clips required      (logo not on item)

120 0102A

$49.00

Qty:

70

AMX, Javelin

Hood Insulator (less Ram Air) - 12 clips required (see above photo)

120 0102A

$49.00

Qty:

70

AMX, Javelin

Hood Insulator (with Ram Air) - 11 clips req

120 0102B

$49.00

Qty:

71-74

AMX, Javelin

Hood Insulator (less Cowl Induction) - 11 clips required

120 0102C

$49.00

Qty:

71-74

AMX, Javelin

Hood Insulator (with Cowl Induction) - 15 clips required

120 0102D

$49.00

Qty:

68-74

AMX, Javelin

Hood Insulator Clip

120 0103

.50¢

Qty:

68-74

AMX, Javelin

Hood Side Bumper

120 0104A

$6.00

Qty:

68-74

AMX, Javelin

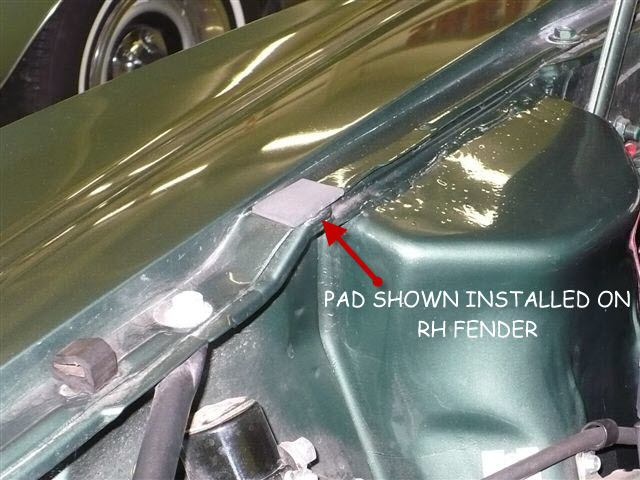

Hood Side Foam Pad - 2 required (see photo below  for installation photo)

120 0104B

$2.50

Qty:




68-74

AMX, Javelin

Radiator Upper Cross Member Support Rod Set — Precision machined billet aluminum with custom stainless steel hardware   (see photo below)

200 9304B

$199.00

Qty:




68-74

AMX, Javelin

Upper Radiator Crossmember to Fender Support Rod - Good used.    (see photo below)

U359 8787

$45.00

Qty:



68-70

AMX, Javelin

Hood Bumper Kit - 2 req  (bumper, bolt & nut)

120 0107A

$12.50

Qty:

71-74

AMX, Javelin

Hood Bumper Kit - 2 or 3 required  (bumper, bolt & nut)

120 0107B

$12.50

Qty:

68-74

AMX, Javelin

Front Hood Bumper

120 0105

$8.00

Qty:

68-74

AMX, Javelin

Hood Bumper Bolt - excellent reproduction, exactly like original including correct #3 Phillips drive

120 0106A

$6.00

Qty:

Detailing Note: These bolts and the adjusting nuts were installed on the assembly line before the body was painted and before the bumpers were installed on them.  So, if you want a factory original appearance, they should be primed and painted body color.





68-70

AMX, Javelin

Hood Bumper Adjusting Bolt Nut

120 0106B

$1.25

Qty:

71-74

AMX, Javelin

Hood Bumper Adjusting Bolt Nut

120 0106C

$1.25

Qty:

70

AMX, Javelin

RH Hood Air Scoop (with Ram Air)

120 0111A

$45.00

Qty:

70

AMX, Javelin

LH Hood Air Scoop (with Ram Air)   (logo not on item)

120 0111B

$45.00

Qty:

70

AMX (w/o "Go" Package)

Hood Scoop Screen Set - Excellent reproductions.

120 0111E

$49.00

Qty:

68-70

AMX, Javelin

Hood Latch Striker - Good used.

U350 0200

$45.00

Qty:

71-74

AMX, Javelin

Hood Latch Striker  —  Good used

U363 2370

$35.00

Qty:

68-74

AMX, Javelin

Hood Striker Bolt - 5/16-18 X 1 1/4

120 6011A

$1.00

Qty:

69-74

AMX, Javelin

Latch and Support Bolt - 5/16-18 X 1 1/4"

120 6002B

$1.00

Qty:

68-69

AMX, Javelin

Hood to Hinge Nut Kit (8 pieces)

120 3502A

$3.00

Qty:

70-71

AMX, Javelin

Hood to Hinge Nut Kit (4 pieces - fine)

120 3502B

$6.00

Qty:

71-72

AMX, Javelin

Hood to Hinge Nut Kit (4 pieces - coarse)

120 3502C

$3.00

Qty:

73-74

AMX, Javelin

Hood to Hinge Nut Kit (4 pieces) - see above photo

120 3502D

$3.00

Qty:

68-69

AMX, Javelin

Hinge to Body Nut Kit (12 pieces)

120 3503A

$3.00

Qty:

70-71

AMX, Javelin

Hinge to Body Nut Kit (4 pieces - fine)

120 3503B

$6.00

Qty:

70-74

AMX, Javelin

RH Hood Latch Rod Spring Clip - 1 req

120 6005A

$2.00

Qty:

70-74

AMX, Javelin

LH Hood Latch Rod Spring Clip - 2 req

120 6005B

$2.00

Qty:

72-74

AMX, Javelin

Hood Cable Repair Kit (includes handle with 93" long inner cable)

120 6112A

$38.00

Qty:

73-74

AMX, Javelin

Hood Cable Screw

120 6103B

.50¢

Qty:

72-74

AMX, Javelin

Push On Cable Retainer

120 6102

.45¢

Qty:

68-74

AMX, Javelin

Fender Bolt

120 7502A

$1.00

Qty:

68-70

AMX, Javelin

Inner Fender Splash Shield Kit (includes staples)

120 7511A

$49.00

Qty:

71-74

AMX, Javelin

Inner Fender Splash Shield Kit (includes staples)

120 7511B

$49.00

Qty:

L68-74

AMX, Javelin

RH Fender Front Lower Brace - Good used.

U362 3172

$45.00

Qty:

L68-74

AMX, Javelin

LH Fender Front Lower Brace - Good used.

U362 3173

$45.00

Qty:

68-74

AMX, Javelin

Cowl Seal

120 2201

$69.00

Qty:

68-74

AMX, Javelin

Cowl Seal Retainer

120 2205

$35.00

Qty:

68-74

AMX, Javelin

Cowl Seal Screw Kit (correct screws for retainer)

120 2206A

$1.00

Qty:

68-69

AMX, Javelin

Chrome Front Bumper — A brand new bumper precision stamped using the same gauge steel as original and with OEM style plating to duplicate the appearance of the original factory installed bumpers. (see photo below)

121 6801A

$695.00

Qty:






70

AMX, Javelin

Front Bumper - A brand new bumper precision stamped using the same gauge steel as original and with OEM style plating to duplicate the appearance of the original factory installed bumpers. (see photo below)

121 6801C

$695.00

Qty:







71-74

AMX, Javelin

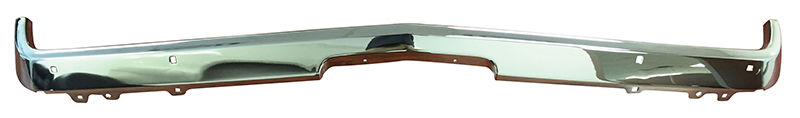

Front Bumper - A brand new bumper precision stamped using the same gauge steel as original and with OEM style plating to duplicate the appearance of the original factory installed bumpers. (see photo below)

121 6801D

$695.00

Qty:





68-74

AMX, Javelin

Rear Bumper - A brand new bumper precision stamped using the same gauge steel as original and with OEM style plating to duplicate the appearance of the original factory installed bumpers. (see photo below)

121 6803A

OUT





69

AMX, Javelin

Rear Bumper - Primer finish for original Big Bad color cars. Fits 68-74. Only 3 available. (see photo below)

121 6803B

$595.00

Qty:



68-69

AMX, Javelin

Front Bumper Bolt Kit

121 6802A

$10.00

Qty:

70

AMX, Javelin

Front Bumper Bolt Kit

121 6802B

$10.00

Qty:

71-72

AMX, Javelin

Front Bumper Bolt Kit (w/o guards)

121 6802C

$14.00

Qty:

71-72

AMX, Javelin

Front Bumper Bolt Kit (w/guards)

121 6802D

$10.00

Qty:

73-74

AMX, Javelin

Front Bumper Bolt Kit

121 6802E

$10.00

Qty:

69

AMX, Javelin

Big Bad Bumper Bolt Nylon Washer - 6 required

121 6802G

$2.00

Qty:

68-69

AMX, Javelin

Rear Bumper Bolt Kit (w/o guards)

121 6804A

$8.00

Qty:

70-72

AMX, Javelin

Rear Bumper Bolt Kit (w/o guards)

121 6804B

$10.00

Qty:

69

AMX, Javelin

Front Bumper Molding Nut Kit - with "Big Bad" colors

121 6809

$4.00

Qty:

70

AMX

RH Bumper Scoop

121 6810A

$60.00

Qty:

70

AMX

LH Bumper Scoop

121 6810B

$60.00

Qty:

70

AMX

Bumper Scoop Screw Kit - 1 required.

121 6811A

$5.00

Qty:

68-73

AMX, Javelin

Rear Bumper Outer Bracket Set - Good used, includes 1 LH & 1 RH

U318 9702-4

$90.00

Qty:

68-74

AMX, Javelin

Rear Bumper Bracket Nut Kit - NOTE: 1 required for '68-'73. 2 required for '74.

121 7806A

$4.00

Qty:

68-69

AMX, Javelin

Front Bumper Bracket to Body Bolt Kit

121 7503A

$6.00

Qty:

70-72

AMX, Javelin

Front Bumper Bracket to Body Bolt Kit

121 7503B

$5.00

Qty:

68-69

AMX, Javelin

Front Bumper Outer Brace to Inner Bracket Bolt Kit

121 7504A

$3.00

Qty:

70

AMX, Javelin

Front Bumper Outer Brace to Inner Bracket Bolt Kit

121 7504B

$3.00

Qty:

71-74

AMX, Javelin

Front Bumper Outer Brace to Inner Bracket Bolt Kit

121 7504C

$10.00

Qty:

71-72

AMX, Javelin

Front Guard Bolt Kit (for attaching guards to bumper and brackets) - 1 required

121 8402A

$7.00

Qty:

73-74

AMX, Javelin

Front Guard Bolt Kit (for attaching guards to bumper and brackets) - 1 required

121 8402B

$12.00

Qty:

68-72

AMX, Javelin

Rear Bumper Guard Overlay - 2 required

121 8407A

$39.00

Qty:

71-72

AMX, Javelin

Front Bumper Guard Overlay - 2 required

121 8407B

$35.00

Qty:

70-72

AMX, Javelin

Rear Bumper Guard Hardware Kit (3/8") - 1 req

121 8409B

$7.00

Qty:

73-74

AMX, Javelin

Rear Bumper Guard Hardware Kit

121 8409C

$4.00

Qty:

68-72

AMX, Javelin

Guard Overlay Nut Kit (for attaching rubber overlay to guard) - for overlays w/3 studs

121 8408A

$4.00

Qty:

68-72

AMX, Javelin

Rear Guard Overlay Nut Kit (for attaching rubber overlay to guard) - for overlays with 2 studs

121 8408B

$3.00

Qty:

69

AMX, Javelin

Rear Bumper Guard Insulator Kit - with "Big Bad" colors

121 8406

$15.00

Qty:

71-74

AMX, Javelin

Front License Plate Bracket (with front spoiler)

140 9801B

$39.00

Qty:

68-74

AMX, Javelin

Rear License Plate Mounting Bracket - Used. Straightened, sand blasted & painted.

U318 9656

$45.00

Qty:

71-74

AMX, Javelin

Front License Plate Bracket Hardware Kit (with front spoiler) - 1 required

141 0801B

$5.00

Qty:

68-74

AMX, Javelin

Front License Plate Bumper - 1 required

141 0802B

$1.00

Qty:

68-74

AMX, Javelin

Rear License Plate Bumper - 2 req

141 1504A

$5.00

Qty:

68-74

AMX, Javelin

License Plate Screw Kit (includes 2 screws, 2 nuts)

141 0801A

$3.00

Qty:



71-74

AMX, Javelin

Front Spoiler Center Bracket

201 1507A

$15.00

Qty:

71-74

AMX, Javelin

Front Spoiler Center Bracket Screw Kit - 1 req

201 1508A

$1.00

Qty:

71-74

AMX, Javelin

Rear Spoiler

230 0905B

$449.00

Qty:

70

"Donohue"

Rear Spoiler Nut/Washer Kit  — NOTE: This hardware kit is not correct for '71-'74 AMX rear spoilers and will not work.

230 0906

$12.00

Qty:

70

"Donohue"

"Donohue" Spoiler Sticker (excellent reproduction of the sticker found on all '70 "Mark Donohue Special" Javelins) - (photo taken through protective covering)

230 0909

$20.00

Qty:


FLOOR PANS

68-74

AMX, Javelin

RH Front Floor Pan

200 0501A

$99.00

Qty:

68-74

AMX, Javelin

LH Front Floor Pan

200 0501B

$99.00

Qty:

68-70

AMX

RH Rear Floor Pan

200 0501C

$115.00

Qty:

68-70

AMX

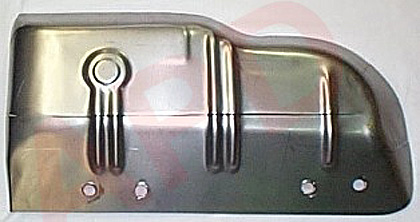

LH Rear Floor Pan

200 0501D

$115.00

Qty:

68-74

Javelin

RH Rear Floor Pan

200 0501E

$99.00

Qty:

68-74

Javelin

LH Rear Floor Pan

200 0501F

$99.00

Qty:


QUARTER REPAIR PANELS. Die-stamped, excellent reproductions.

68-70

AMX

RH Quarter Repair Panel (rear lower section)

121 2500A

$198.00

Qty:

68-70

AMX

LH Quarter Repair Panel (rear lower section)

121 2500B

$198.00

Qty:

68-70

Javelin

RH Quarter Repair Panel (rear lower section)

121 2500C

$115.00

Qty:

68-70

Javelin

LH Quarter Repair Panel (rear lower section)

121 2500D

$115.00

Qty:

68-70

Javelin

RH Quarter Repair Panel (wheel arch section)

121 2500E

$99.00

Qty:

68-70

Javelin

LH Quarter Repair Panel (wheel arch section)

121 2500F

$99.00

Qty:

68-74

Javelin, Javelin-AMX

RH Quarter Repair Panel  (front section)

121 2500G

$99.00

Qty:

68-74

Javelin, Javelin-AMX

LH Quarter Repair Panel (front section)

121 2500H

$99.00

Qty:

71-74

AMX, Javelin

RH Quarter Repair Panel (rear section)

121 2500I

$185.00

Qty:

71-74

AMX, Javelin

LH Quarter Repair Panel (rear section)

121 2500J

$185.00

Qty:

71-74

AMX, Javelin

RH Quarter Repair Panel (wheel arch section)

121 2500K

$99.00

Qty:

71-74

AMX, Javelin

LH Quarter Repair Panel (wheel arch section)

121 2500L

$99.00

Qty:

68-70

AMX

RH Quarter Repair Panel (front section)

121 2500M

$129.00

Qty:

68-70

AMX

LH Quarter Repair Panel (front section)

121 2500N

$129.00

Qty:


LH QUARTER EXTENSION

68-69

Javelin

RH Quarter Extension - Good used. Bead blasted.

U360 1246

$125.00

Qty:

68-69

Javelin

LH Quarter Extension - Good used. Bead blasted.

U360 1247

$125.00

Qty:

68-69

AMX

RH Quarter Extension - Good used. Bead blasted.

U360 2556

$150.00

Qty:

68-69

AMX

LH Quarter Extension - good used. Bead blasted.

U360 2557

$150.00

Qty:


REAR VALANCE PANELS

68-71

AMX, Javelin

Rear Valance Hardware Kit

203 2504A

$6.00

Qty:

72-74

AMX, Javelin

Rear Valance Panel Hardware Kit

203 2504B

$6.00

Qty:

71-74

AMX (w/o front spoiler), Javelin

Front Valance Panel to Fender Hardware Kit

201 1505A

$10.00

Qty:


ROCKER REPAIR PANELS. Die-stamped, excellent.

68-74

AMX, Javelin

Outer Rocker Panel (section under door)

201 7500A

$115.00

Qty:

68-74

AMX, Javelin

Inner Rocker Panel (full length - 75" long)

201 7500B

$69.00

Qty:


TRUNK DROP-OFFS. Die-stamped, excellent.

68-70

AMX, Javelin

RH Trunk Drop Off (behind lower rear quarter)

200 3502A

$125.00

Qty:

68-70

AMX, Javelin

LH Trunk Drop Off (behind lower rear quarter)

200 3502B

$125.00

Qty:

71-74

AMX, Javelin

RH Trunk Drop Off (behind lower rear quarter)

200 3502C

$115.00

Qty:

71-74

AMX, Javelin

LH Trunk Drop Off (behind lower rear quarter)

200 3502D

$115.00

Qty:

Return to top of page
