AMX & JAVELIN
COOLING SYSTEM / GRILLE

phone: (937) 678-7249   fax: (937) 678-5886   email: sales@americanpartsdepot.com


secure ordering

We carry an extensive line of used cooling system parts, such as fan blades, pulleys, shrouds and baffles.
Call us if you need something you don't see listed here. We probably have it!

Alternator Belts | Fan Blade | Grilles/Hardware | Hoses | Radiators | Radiator Air Baffles

Radiator Caps / Petcocks/ Shrouds | Thermostat Housings / Gaskets

Water Pumps


68-74

AMX, Javelin

Cooling System & Radiator Cap Pressure Tester - Used to test cooling systems for leaks and radiator caps for proper function. Includes instruction book - Genuine Gates - Mfg by Stant Corp  •Imported

920 2000A

$89.00

Qty:


SECTION I

YEAR

MODEL

DESCRIPTION

PART #

PRICE

CART

68-74

AMX, Javelin

Radiator Cap

920 3200

$20.00

Qty:

68-74

AMX, Javelin

Chrome Radiator Cap - like the original, except chrome plated

920 3200B

$22.00

Qty:

68-74

AMX, Javelin

Radiator Petcock (fits original radiators)

920 3600

$15.00

Qty:

68-74

AMX, Javelin

Radiator Petcock (fits replacement radiators)

920 3600A

$2.00

Qty:

68-74

AMX, Javelin

Radiator Bolt Kit (4 pieces)

920 2002

$5.00

Qty:

68-74

AMX, Javelin (V8)

Fan Shroud (excellent reproduction of the original plastic fan shroud) NOTE: will replace metal shroud for these models.

920 1301A

$149.00

Qty:

68-74

AMX, Javelin

Fan Shroud Screw Kit - 1 required

920 1302

$2.00

Qty:

68-74

AMX, Javelin

Direct Fit Aluminum Radiator - 2 row - 1" core tube design. Heavily reinforced die-stamped tanks add rigidity. Machined billet filler neck. Noculoc brazed core with TIG welded tanks for epoxy and gasket free construction. Built-in 6" automatic transmission oil cooler. (see photo below

920 2001Q

$559.00

Qty:

Rather than take a photo of every style of radiator we carry, and increase your download time,
this is a sample of our fine line of original-style copper/brass radiators.


68-71

AMX, Javelin

Radiator - New (Blackstone style tanks - 3 row core)

920 2001A

$639.00

Qty:

72-74

AMX, Javelin

Radiator - New (Blackstone style tanks - 3 row core)

920 2001C

$639.00

Qty:

68-74

AMX, Javelin (V8)

Fan & Alternator Belt - Excellent reproduction of the original raw edge style belt with the AM logo and part number.

920 1601A

$19.00

Qty:

68-74

Javelin (SIX)

Alternator & Fan (Water Pump) Belt - 1 req

920 1601B

$18.00

Qty:

67-75

66

All V8

American V8

Fan and Alternator Belt

920 1601C

$20.00

Qty:

68-72

All V8

Water Pump - New (not rebuilt) - NOTE: for '67-early '68  with 4 1/2" gasket to hub height.

920 8001A

$149.00

Qty:

73-74

AMX, Javelin (V8)

Water Pump - NEW (not rebuilt) NOTE: 4 3/4" gasket to hub height.

920 8001B

$69.00

Qty:

68-70

E71

Javelin (199, 232)

Javelin (232, 258)

Water Pump - NEW (not rebuilt) - (except with fan clutch) 4 7/8" gasket to hub

920 8001E

$159.00

Qty:

L71-74

Six

Water Pump - (Rebuilt) 4 1/4" Gasket to hub CORE CHG: $45.00

920 8001V

$169.00

Qty:

71

68-70

Six (Type 1)

Six

Single Belt Water Pump Pulley - good used, straight, sand-blasted & painted

U317 3223

$45.00

Qty:

L71-72

73-74

Six

Six

Water Pump Pulley - For all with single belt drive. Type 2 for '71. Good used, straight, sand-blasted & painted.

U321 3736

$45.00

Qty:

68-74

AMX, Javelin (V8)

Water Pump Gasket

920 9800

$2.00

Qty:

68-74

Javelin (Six)

Water Pump Gasket - 1 req

920 9800B

$2.50

Qty:

68-74

AMX, Javelin (V8)

Water Pump to Timing Cover Bolt & Lockwasher Kit

920 8003

$7.00

Qty:

68-74

AMX, Javelin (V8)

Bolt - 4 1/2" long (Water Pump to Block Bolt)

920 8002A

$1.75

Qty:

68-74

V8

Water Pump Power Steering Bracket Stud - NOTE: LH upper position on water pump. Stainless steel. 3/8-16 both ends.

920 8002B

$25.00

Qty:

68-70

AMX, Javelin V8

Upper Radiator Hose - excellent reproduction with logo & part number

920 3801

$32.00

Qty:

71-74

AMX, Javelin (V8)

Upper Radiator Hose - excellent reproduction with logo & part number

920 3801A

$32.00

Qty:

68-74

AMX, Javelin V8

Upper Radiator Hose - Molded replacement

920 3801M

$24.00

Qty:

68-70

71-74

Javelin (SIX)

Javelin (SIX) (w/AC)

Upper Radiator Hose - (molded)

920 3801B

$26.00

Qty:

74

Javelin (SIX) (w/AC or HD cooling)

Upper Radiator Hose - (molded) - see above photo

920 3801B

$26.00

Qty:

72-74

Javelin (Six) (w/o AC)

Upper Radiator Hose - (molded)

920 3801O

$19.00

Qty:

68-74

AMX, Javelin V8

Lower Radiator Hose - excellent reproduction with logo & part number

920 3802

$32.00

Qty:

68-74

AMX, Javelin V8

Lower Radiator Hose - molded replacement - Does not include spring.

920 3802I

$39.00

Qty:

68-74

SIX

Lower Radiator Hose (molded)

920 3802B

$39.00

Qty:

68-74

AMX, Javelin

5/8" - Heater Hose Clamp -  ("wire" type)

920 8000C

$2.50

Qty:

68-74

AMX, Javelin V8

Bypass Hose — w/AM logo & part number

920 8004A

$18.00

Qty:

68-74


AMCX, Javelin (290, 304, 343, 360, 390, 401)

Bypass Hose

920 8004B

$14.00

Qty:

68-74

V8

Thermostat Housing - Cast iron replacement w/threaded sensor hole

921 0201A

$35.00

Qty:

68-74

Javelin (SIX)

Thermostat Housing

921 0201D

$28.00

Qty:

68-74

AMX, Javelin V8

Thermostat Gasket

921 0204

$2.00

Qty:

68-74

Javelin (SIX)

Thermostat Gasket

921 0204B

$2.00

Qty:

68-74

AMX, Javelin (195°)

Thermostat Kit (includes gasket)

921 0000A

$10.00

Qty:

68-74

AMX, Javelin (180°)

Thermostat Kit (includes gasket)

921 0000B

$10.00

Qty:

68-74

AMX, Javelin (160°)

Thermostat Kit (includes gasket)

921 0000C

$10.00

Qty:

68-74

AMX, Javelin (180°)

Thermostat

921 0000D

$8.00

Qty:

68-74

AMX, Javelin (160°)

Thermostat

921 0000E

$8.00

Qty:

68-74

AMX, Javelin (195°)

Thermostat

921 0000F

$8.00

Qty:

68-74

AMX, Javelin V8

Thermostat Housing Bolt Kit - 4 piece kit (for use without air pump system)

921 0203

$2.00

Qty:


RADIATOR AIR BAFFLES


68-74

AMX, Javelin

Seal Kit (for cars with factory A/C)

920 6202

$29.00

Qty:

68-74

AMX, Javelin

Radiator Seal Staple

920 6212A

.25¢

Qty:

68-71

AMX, Javelin

Screw Kit - 4 piece kit (for attaching upper radiator baffle to upper radiator crossmember)

920 6209A

$1.00

Qty:

72-74

AMX, Javelin

Screw Kit - 4 piece kit (for attaching upper radiator baffle to upper radiator crossmember)

920 6209B

$1.00

Qty:


SECTION II


68-69

AMX

Grille Bracket Set — Excellent reproductions  (see photo below)

920 5000A

$90.00

Qty:



68-69

AMX

Polished Stainless Steel Grille Bracket Set — Excellent reproductions  (see photo below)

920 5000A S/S

$160.00

Qty:






70

AMX

Grille Bracket Set - very nice reproduction (see photo below)

920 5000B

$160.00

Qty:




70

AMX

Polished Stainless Steel Grille Bracket Set (see photo below)

920 5000B S/S

$180.00

Qty:





L68-70

Javelin

Grille Bracket Set - For '68 grille w/bulls-eye emblem.  Excellent reproductions  (see photo below)

920 5000C

$160.00

Qty:




L68-70

Javelin

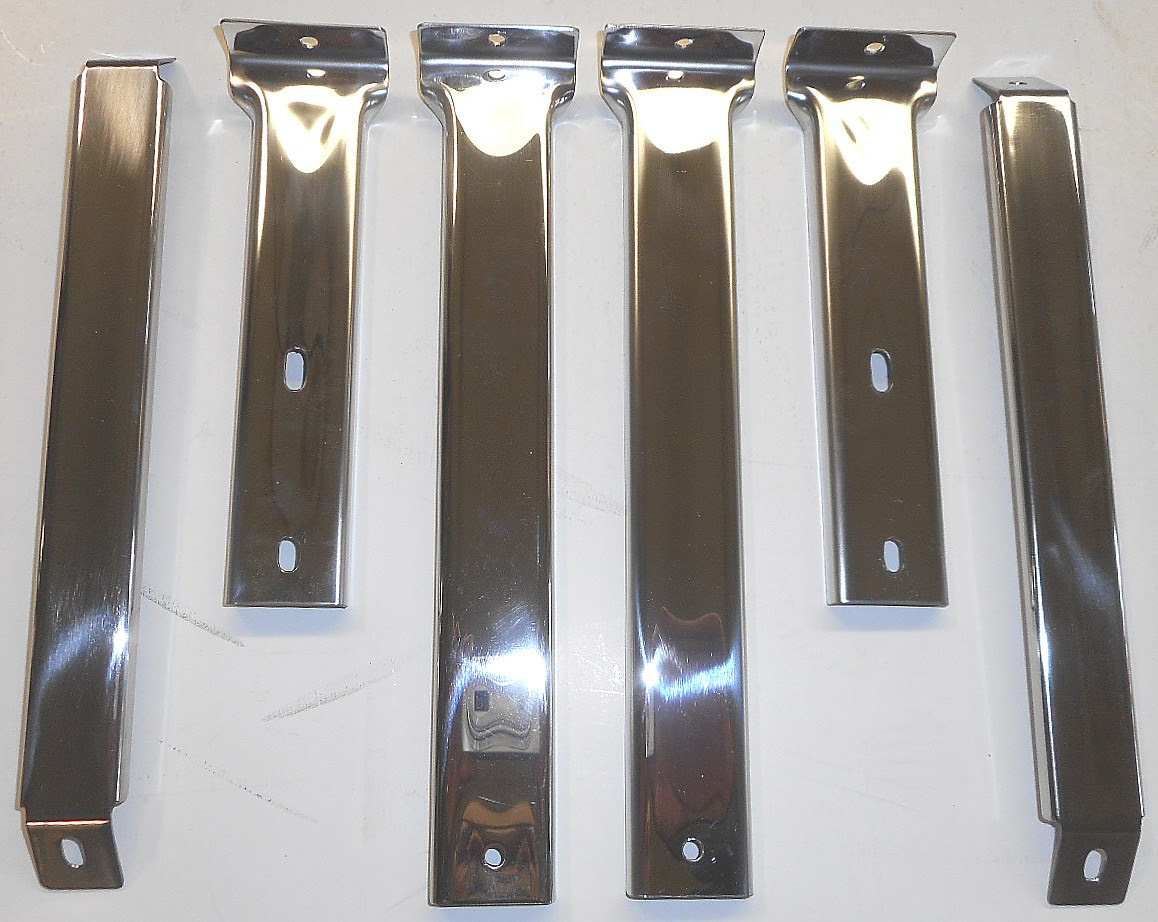

Polished Stainless Steel Grille Bracket Set - For '68 grille w/bulls-eye emblem. (see photo below)

920 5000C S/S

$180.00

Qty:



68-69

70

Javelin

AMX, Javelin

Outer Diagonal Grille Brace - Good used.

U360 1645

$20.00

Qty:

71-74

AMX, Javelin

RH Grille to Fender Bracket - Used. Sand blasted & painted

U364 1962

$20.00

Qty:

71-74

AMX, Javelin

LH Grille to Fender Bracket - Used. Sand blasted & painted.

U364 1963

$20.00

Qty:

68-69

AMX

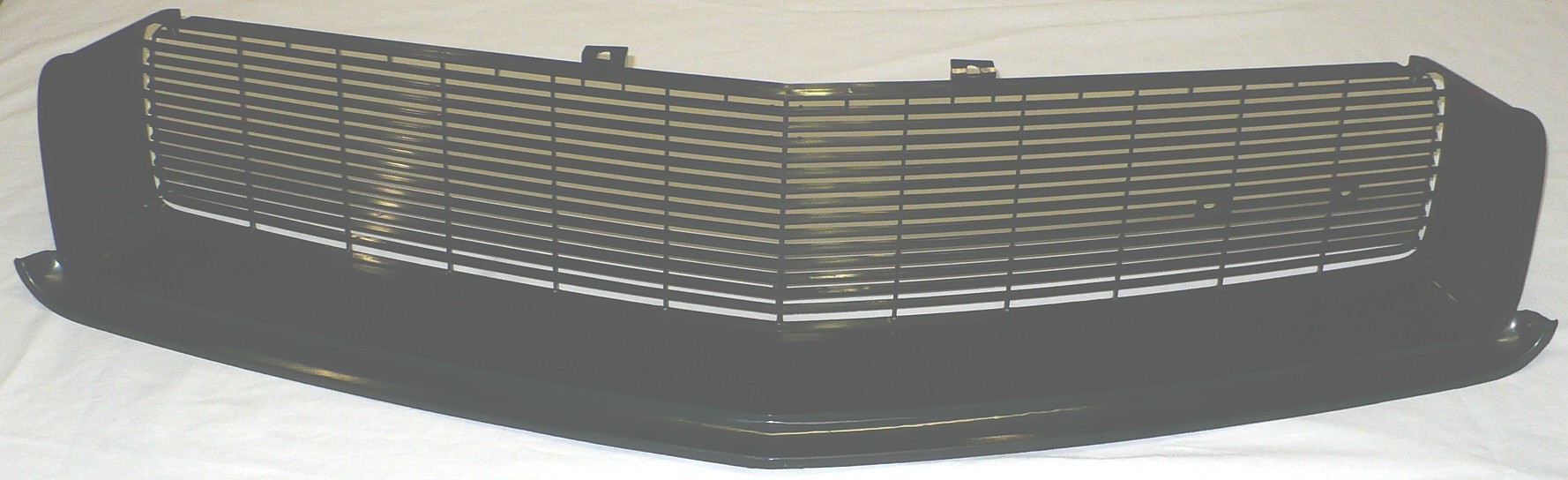

Radiator Grille - Made on original AMC tooling. Unpainted. (see photo below)

920 5001A

$395.00

Qty:






68-69

AMX

Screw Kit (for upper grille braces)

920 5015A

$6.00

Qty:

70

AMX

Screw Kit (for upper grille braces)

920 5015B

$6.00

Qty:

68-70

Javelin

Screw Kit (for upper grille braces)

920 5015C

$6.00

Qty:

68-70

Javelin

Grille Lower Fastener Kit - to attach grille to lower grille panel - 1 required

920 5015D

$5.00

Qty:
