ELECTRICAL/INSTRUMENTS
Speedometer Parts
phone: (937) 678-7249 fax: (937) 678-5886 email: sales@americanpartsdepot.com
Please note that we've added watermarks to some of our photos. The parts do not have these markings on them.

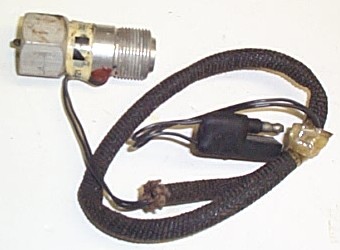

Cruise Control Speed Sensors | Speedometers/Cables/Parts | Speedometer Gears
|
73 |
Ambassador |
|
$150.00 |
|
|
|
78-80 |
Concord, Gremlin, Spirit (w/tach) |

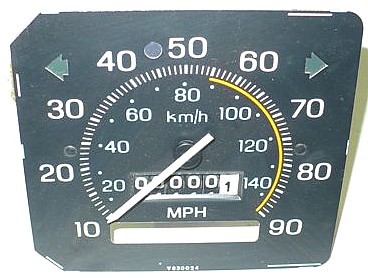

Speedometer |
|
$250.00 |
|
|
80 |
Eagle (w/tach) |
Speedometer (see above photo) |
|
$250.00 |
|
|
68-70 66-71 67 65 70-71 66-70 66 |
AMX, Javelin(w/4 speed) American, Hornet (w/4 speed) Amb, Rebel, Marlin (w/OD) Classic 327 w/3 speed or OD Hornet, Gremlin (w/AT or 3 speed) Amb, Classic, Rebel, Marlin (w/4 speed) Amb, Classic, Marlin (327 w/3 Speed & 287 w/OD) |

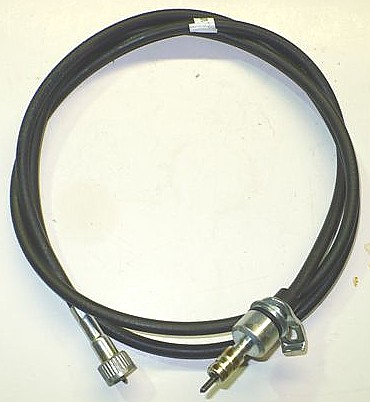

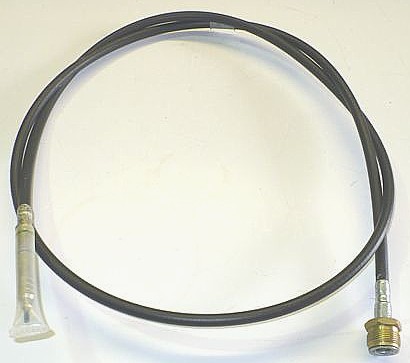

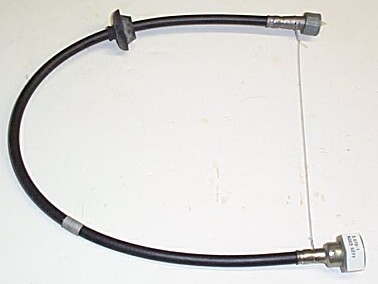

Speedometer Cable Assembly |
|
$49.00 |
|
|
68-70 67-70 67-68 67 |
AMX, Javelin (w/AT) Rebel, Marlin (w/AT, w/o CC) Ambassador (w/AT, w/o CC) Ambassador, Rebel, Marlin (with overdrive) |

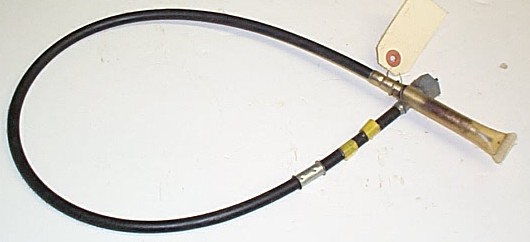

Speedometer Cable Assembly |
|
$49.00 |
|
|
72 73 75-77 |
Hornet, Gremlin (Six, w/AT, w/o TCS) Hornet, Gremlin (w/AT) Hornet, Gremlin (w/AT, w/o CC, w/metal adapter at trans) |

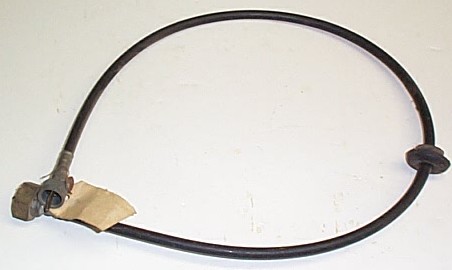

Speedometer Cable Assembly |
|
$39.00 |
|
|
68-70 |
AMX, Javelin |
Speedometer Cable Assembly (for
Torque Command Conversion) - screw-on end at trans for metal
speedometer adapter - 69" long |
|
$39.00 |
|
|
64-65 65 |
Classic 232 w/OD Classic 287 w/OD |
Speedometer Cable - Note: foam
seal is hard |
|
$75.00 |
|
|
75-77 |
Hornet, Gremlin |

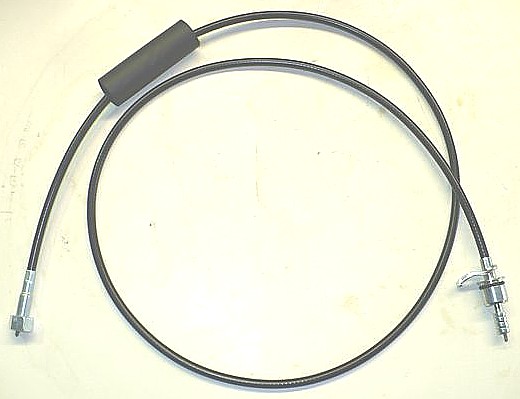

Speedometer Cable - upper
(w/cruise) |
|
$45.00 |
|
|
80 |
Concord, Spirit (SIX) |

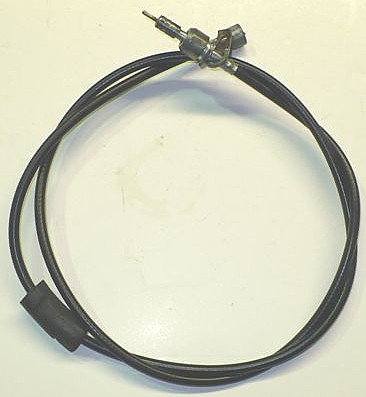

Speedometer Cable - lower (with cruise) |
|
$35.00 |
|
|
78 |
Concord, Gremlin |
Upper Speedometer Cable (speedo to
tach generator) for Concord, Gremlin automatic with threaded
connector on speedo - 1 required |
|
$45.00 |
|
|
81 |
Eagle Four (w/o Cruise) |
Lower Speedometer Cable Assembly |
|
$35.00 |
|
|
61 |
American (w/AT) |
Speedometer Cable |
|
$75.00 |
|
|
56-71 |
All |
Bolt for Speedometer Cable Retainer
to Transmission - Stainless steel. |
|
.50¢ |
|
|
55-58 |
All (exc '55 Rambler) |
Speedometer Cable Coupling - 1
required |
|
$5.00 |
|
|
55-58 |
All (exc '55 Rambler) |
Speedometer Cable Spring Connection
- 1 req |
|
$2.00 |
|
|
68-74 |
AMX, Javelin |
Speedometer Cable Clip Kit (to
attach speedometer cable to front sill) |
|
$4.50 |
|
|
72-74 |
AMX, Javelin |
Speedometer Cable Clip Kit (to attach speedometer cable to front floor channel) (see above photo) |
|
$4.50 |
|
|
64-71 |
All |

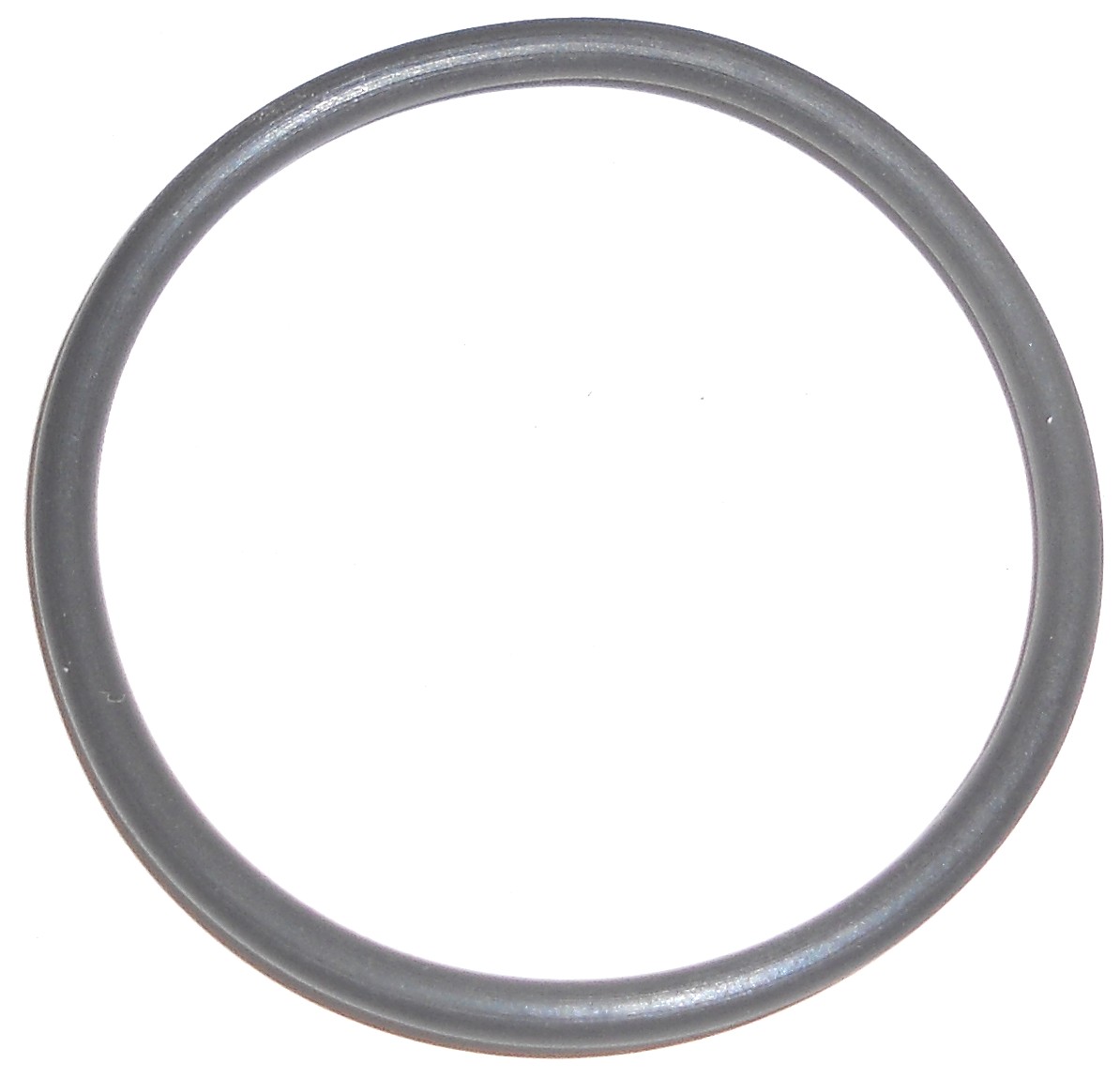

Speedometer Cable "O"
Ring (at transmission) |
|
$1.00 |
|
|
63 |
Classic, Ambassador |
Speedometer Cable "O" Ring (at transmission) - see above photo |
|
$1.00 |
|
|
72-74 |
(WMT) |
Speedometer Cable "O" Ring (at transmission) - see above photo |
|
$1.00 |
|
|
75-79 |
(WMT - except FOUR) |
Speedometer Cable "O" Ring (at transmission) - see above photo |
|
$1.00 |
|
|
74 72-76 77-78 79 81-88 |
All Hornet, Gremlin, Pacer (w/AT) Pacer (w/AT, w/CC) Pacer (w/AT) All (w/AT) |
Speedometer Cable to Adapter
O-Ring (7/16" O.D.) - 1 req |
|
$1.00 |
|
|
62 62-63 |
Classic w/Automatic American w/Automatic |
|
$75.00 |
|
|
|
62 |
Classic w/Manual Trans |
Speedometer Drive Gear - 5 tooth |
|
$35.00 |
|
|
64-65 63-64 65 |
American w/Overdrive Classic 196 w/Overdrive Classic 199 w/Overdrive |
Speedometer Drive Gear (7 tooth
- steel) - 1 required |
|
$35.00 |
|
|
74-78 79 |
Six w/3 speed manual All w/3 speed manual exc Four |
Speedometer Drive Gear - w/150T
& code FE - 7 tooth |
|
$15.00 |
|
|
74-78 79 |
Six w/3 speed manual All w/3 speed manual exc Four |
Speedometer Drive Gear - w/150T
& Codes FH & GS - 9 tooth |
|
$15.00 |
|
|
80-81 |
4 speed |
Speedometer Drive Gear - w/trans #'s 3236678, 3236684 & 3237242 - see above photo |
|
$15.00 |
|
|
74-78 79 |
Six w/3 speed manual All w/3 speed manual exc Four |
Speedometer Drive Gear - w/150T
& Codes FJ, GT, GU & GV - 9 tooth |
|
$15.00 |
|
|
76-78 79 |
Six (w/4 speed) V8, Six (w/4 speed) |
Speedometer Drive Gear - for all
w/13 tooth Clear gear |
|
$35.00 |
|
|
80-81 |
All (w/4 speed) |
Speedometer Drive Gear - for all w/13 tooth Clear gear & w/trans #'s 323 6683 & 323 9617 (see above photo) |
|
$35.00 |
|
|
76-78 |
Six (w/4 speed) |
Speedometer Drive Gear - for all
w/9 tooth Aqua gear |
|
$35.00 |
|
|
79 |
V8, Six (w/4 speed) |
Speedometer Drive Gear - for all w/9 tooth Aqua gear (see above photo) |
|
$35.00 |
|
|
80-81 |
All w/4 speed |
Speedometer Drive Gear - for all w/9 tooth Aqua gear & w/trans #'s 323 6679, 323 6682 & 323 7243 (see above photo) |
|
$35.00 |
|
|
67-82 |
All (with 3.15:1 or 3.54:1 rear axle ratio) |

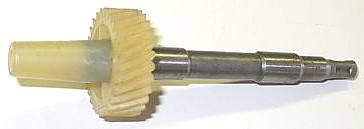

Speedometer Gear (23T White) -
except 72-82 with automatic |
|
$29.00 |
|
|
72 |
Gremlin |
Speedometer Driven Gear (25T) w/Automatic,
D70-14 & 2.37 ratio |
|
$22.00 |
|
|
77-78 |
Hornet, Concord, Gremlin |
Speedometer Driven Gear (25T) w/Automatic, DR78-14 & 2.37 ratio (see above photo) |
|
$22.00 |
|
|
79 |
Concord |
Speedometer Driven Gear (25T) w/Automatic, P195/75-R14 & 2.37 ratio (see above photo) |
|
$22.00 |
|
|
72 |
Gremlin |
Speedometer Driven Gear (27T) - w/Automatic,
6.00-13 tires
& 2.37 ratio |
|
$22.00 |
|
|
74-78 |
Gremlin |
Speedometer Driven Gear (27T) - w/Automatic, 6.45-14, 6.95-14, C78-14, D78-14, DR70-14, DR78-14, D70-14 tires & 2.53 ratio (see above photo) |
|
$22.00 |
|
|
75-78 |
Hornet, Concord |
Speedometer Driven Gear (27T) - w/Automatic, 6.95-14, C78-14, D70-14, DR70-14, D78-14, DR78-14 tires & 2.53 ratio (see above photo) |
|
$22.00 |
|
|
77-78 |
Hornet, Concord |
Speedometer Driven Gear (27T) - w/Automatic, C78-14, DR78-14 tires & 2.56 ratio (see above photo) |
|
$22.00 |
|
|
75-76 |
Pacer |
Speedometer Driven Gear (27T) - w/Metal Speedometer Gear Adapter, Automatic, 6.95-14, D78-14, DR70-14, DR78-14 tires & 2.53 ratio (see above photo) |
|
$22.00 |
|
|
77-78 |
Pacer |
Speedometer Driven Gear (27T) - w/o Cruise Control, w/Automatic, 6.95-14, D78-14, DR70-14, DR78-14 tires & 2.53 ratio (see above photo) |
|
$22.00 |
|
|
72 |
Ambassador, Matador |
Speedometer Driven Gear (27T) - w/Automatic, H78-15 tires & 2.87 ratio (see above photo) |
|
$22.00 |
|
|
75-78 |
Ambassador Matador |
Speedometer Driven Gear (27T) - w/Automatic, H78-15, HR70-15, HR78-15, H70-15 tires & 2.87 ratio (see above photo) |
|
$22.00 |
|
|
77-78 |
Hornet, Concord |

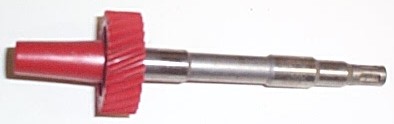

Speedometer Gear (26T Red) -
(D78-14 tires & 2.56 ratio) |
|
$25.00 |
|
|
72 |
Hornet, Gremlin |
Speedometer Gear (26T Red) - w/Automatic, 6.45-14 or B78-14 tires & 2.37 ratio) (see above photo) |
|
$25.00 |
|
|
79 |
Concord, Spirit |
Speedometer Gear (26T Red) - w/Automatic, D78-14, DR70-14, P195/75R14 & 2.53 ratio) (see above photo) |
|
$25.00 |
|
|
L50-55 58-59 |
Rambler American |

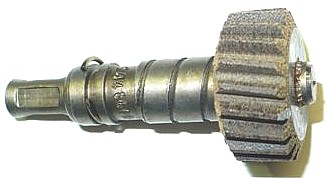

Speedometer Driven Gear (17T) -
(3.77 ratio) with manual transmission - 1 required |
|
$25.00 |
|
|
58-60 |
American |
Speedometer Driven Gear (20T)
(w/3.31 axle & automatic) |
|
$35.00 |
|
|
59-E60 |
Ambassador |
Speedometer Driven Gear (17T)
(w/AT, 2.87 axle & 8.00-14 tires) |
|
$35.00 |
|
|
59 |
Ambassador |

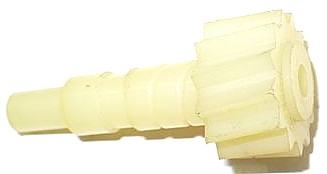

Speedometer Driven Gear (13T)
(w/manual & 3.55 axle) |
|
$25.00 |
|
|
62-63 |
American |
Speedometer Driven Gear (16T) (w/3.31
axle & 6.00-15 tires) |
|
$40.00 |
|
|
62-63 |
American |
Speedometer Driven Gear (18T) - (w/3.78
axle & 6.00-15 tires) |
|
$40.00 |
|
|
57-62 |
Rambler |

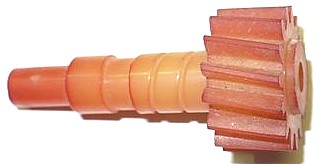

Speedometer Driven Gear (16T)
(w/Manual & 4.11, 4.38 or 4.44 axle) |
|
$25.00 |
|
|
57-59 |
Rambler (A/T) |
Speedometer Driven Gear (19T)
(w/6.70-15 tires & 3.31 axle) |
|
$25.00 |
|
|
58 |
Amb, Rebel (A/T) |
Speedometer Driven Gear (19T) (w/3.15 axle) - see above photo |
|
$25.00 |
|
|
59 |
Amb (A/T) |
Speedometer Driven Gear (19T) (w/8.00-14 tires & 3.15 axle) - see above photo |
|
$25.00 |
|
|
60-62 |
Rambler, Classic 6 |
Speedometer Driven Gear (19T) (w/6.70-15 tires & 3.31 axle) - see above photo |
|
$25.00 |
|
|
60-61 |
Rebel, Classic V8 |
Speedometer Driven Gear (19T) (w/6.70-15 or 7.50-14 tires & 3.15 axle) - see above photo |
|
$25.00 |
|
|
60 |
Amb |
Speedometer Driven Gear (19T) (w/7.50-14 tires & 3.15 axle) - see above photo |
|
$25.00 |
|
|
62 |
Amb |
Speedometer Driven Gear (19T) (w/7.50-14 tires & 3.55 axle) - see above photo |
|
$25.00 |
|
|
60-63 |
American |
Speedometer Driven Gear (15T)
(w/5.90-15, 6.00-15, 6.40-15 or 6.50-15 tires $ 3.31 axle) |
|
$35.00 |
|
|
59-63 |
American (with 3.77 axle) |
Speedometer Driven Gear (14T) - 1 required |
|
$25.00 |
|
|
63 64-78 79 79-88 |
Ambassador, Classic All All (WAT) All (WMT) |
Speedometer Gear Retainer (clip
that holds driven gear onto speedometer cable) |
|
$6.00 |
|
|
72-73 |
All (WAT) |
Speedometer Seal Retainer Ring (for
gear seal) |
|
$2.50 |
|
|
72-88 |
All (WAT) |
Speedometer Adapter Clamp (holds
adapter to transmission) |
|
$10.00 |
|
|
72-88 |
All (WAT) |
Speedometer Adapter "O"
Ring (to seal adapter to transmission) |
|
$12.00 |
|
|
72-88 |
All (WAT) |
Speedometer Cable Retainer Bolt (at
trans) |
|
$.50 |
|
|
78-79 |
All except 4 cylinder |
|
$75.00 |
|
