REAR AXLE

YEAR

MODEL

DESCRIPTION

PART #

PRICE

CART

A

71-74

AMX, Javelin (V8)

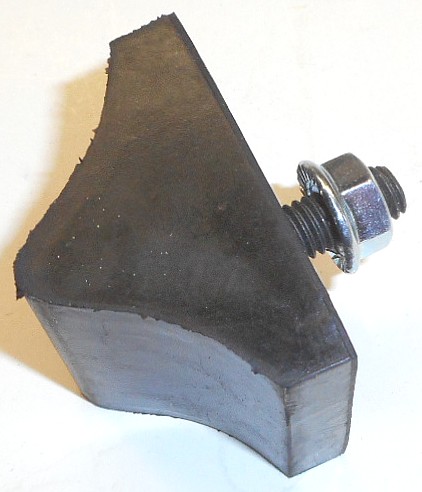

Rear Axle Housing Bumper - 1 required

990 0401

$9.00

Qty:

A

67-69

Javelin (232)

Rear Axle Housing Bumper - 1 required (see above photo)

990 0401

$9.00

Qty:

70-74

Javelin (SIX)

Rear Axle Housing Bumper - 1 required (see above photo)

990 0401

$9.00

Qty:

D

67-79

70-88

V8

SIX

Rear Axle Pinion Nut - 1 required

990 5004

$3.00

Qty:

41-56

50-63

64-65

58-65

66-69

68-69

600, Statesman

Rambler, Classic (Six)

Classic (196-199)

American

American Six

Javelin Six

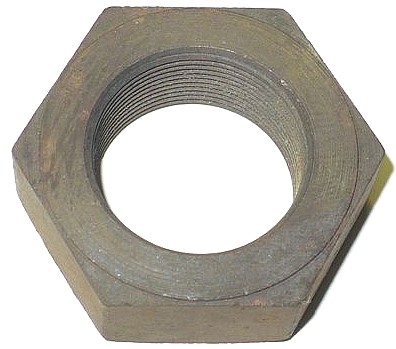

Pinion Nut - 1 required

N310 5331

$10.00

Qty:

L50-56

Statesman

Pinion Nut Washer - 1 req

N313 0372

$5.00

Qty:

50-65

Rambler, Classic (Six - exc 232)

Pinion Nut Washer - 1 req - see above photo

N313 0372

$5.00

Qty:

58-69

68-69

American Six

Javelin Six

Pinion Nut Washer - 1 req - see above photo

N313 0372

$5.00

Qty:

L50-56

Statesman

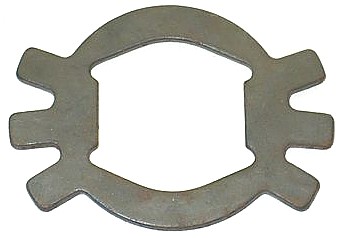

Pinion Nut Lock Washer - 1 req

N313 0373

$3.00

Qty:

50-65

Rambler, Classic (Six - exc 232)

Pinion Nut Lock Washer - 1 req - see above photo

N313 0373

$3.00

Qty:

58-69

68-69

American Six

Javelin Six

Pinion Nut Lock Washer - 1 req - see above photo

N313 0373

$3.00

Qty:

46-56

50-56

600, Statesman

Rambler

Pinion Shim (.003)  (1 25/64" I.D.)

N311 2617

$1.00

Qty:

46-56

50-56

600, Statesman

Rambler

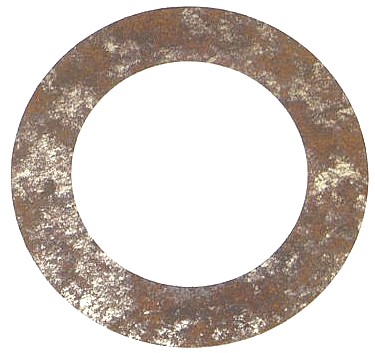

Pinion Shim (.005)  (1 25/64" I.D.)

N311 2618

$1.00

Qty:

46-56

50-56

600, Statesman

Rambler

Pinion Shim (.010)  (1 25/64" I.D.)

N311 2619

$1.00

Qty:

46-56

55-56

Amb 6

Amb V8 (exc Spec V8)

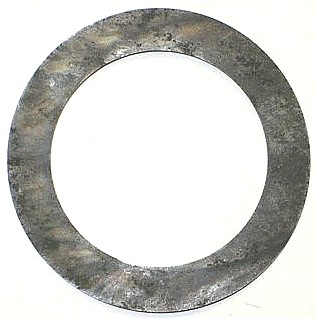

Pinion Shim (.003") (1 41/64" I.D.)

N311 2620

$1.00

Qty:

46-56

Ambassador 6

Pinion Shim (.005")  (1 41/64" I.D.)

N311 2621

$1.00

Qty:

55-56

Ambassador V8 (except Special V8)

Pinion Shim (.005")  (1 41/64" I.D.) - see above photo

N311 2621

$1.00

Qty:

46-56

55-56

Amb 6

Amb V8 (exc Spec V8)

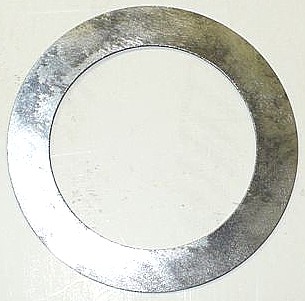

Pinion Shim (.010") (1 41/64" I.D.)

N311 2622

$1.00

Qty:

49-56

50-E60

58-E60

600, Statesman

Rambler 6

American

Front Pinion Bearing Shim (.058)

N311 3876

$2.00

Qty:

49-56

50-E60

58-E60

600, Statesman

Rambler 6

American

Front Pinion Bearing Shim (.059)

N311 3877

$2.00

Qty:

49-56

50-E60

58-E60

600, Statesman

Rambler 6

American

Front Pinion Bearing Shim (.063)

N311 3878

$2.00

Qty:

49-56

50-E60

58-E60

600, Statesman

Rambler 6

American

Front Pinion Bearing Shim (.063)

N311 3879

$2.00

Qty:

49-56

50-E60

58-E60

600, Statesman

Rambler 6

American

Front Pinion Bearing Shim (.068)

N311 3881

$2.00

Qty:

49-56

50-E60

58-E60

600, Statesman

Rambler 6

American

Front Pinion Bearing Shim (.069)

N311 3882

$2.00

Qty:

46-56

55-56

Ambassador 6

Ambassador V8 (exc Spec V8)

Pinion Washer (.105)

N311 3451

$4.00

Qty:

46-56

50-56

600, Statesman

Rambler

Pinion Washer (.105)

N311 3452

$4.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.053)

N311 4619

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.054)

N311 4620

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.056)

N311 4621

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.058)

N311 4622

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.059)

N311 4623

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.063)

N311 4624

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.064)

N311 4625

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.066)

N311 4626

$2.00

Qty:

51-57

Ambassador (exc 1956 Special V8)

Front Pinion Bearing Shim (.068)

N311 4627

$2.00

Qty:

51-57

Amb (exc 1956 Special V8)

Front Pinion Bearing Shim (.069)

N311 4628

$2.00

Qty:

56

57

58

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rebel (w/AT & Type 2)

Front Pinion Bearing Shim (.003)

N314 8627

$3.00

Qty:

56

57

58

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rebel (w/AT & Type 2)

Front Pinion Bearing Shim (.005)

N314 8628

$3.00

Qty:

56

57

58

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rebel (w/AT & Type 2)

Front Pinion Bearing Shim (.010)

N314 8629

$3.00

Qty:

56

56

57

58

Ambassador Special V8

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rambler V8 (w/AT & Type 2)

Pinion Shim (.003)

N314 8632

$1.00

Qty:

56

56

57

58

Ambassador Special V8

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rambler V8 (w/AT & Type 2)

Pinion Shim (.005)

N314 8633

$1.00

Qty:

56

56

57

58

Ambassador Special V8

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rambler V8 (w/AT & Type 2)

Pinion Shim (.010)

N314 8634

$1.00

Qty:

56

56

57

58

Ambassador Special V8

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rambler V8 (w/AT & Type 2)

Pinion Shim (.030)

N314 8635

$1.00

Qty:

50-51

Rambler

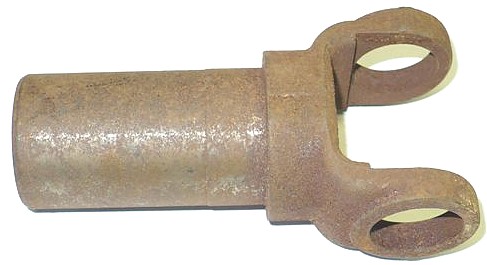

Manual Transmission Yoke - 1 required

N311 3944

$150.00

Qty:

51-56

Ambassador Six

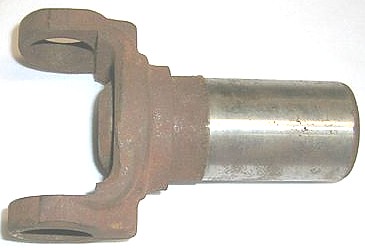

Hydramatic Transmission Yoke

N311 5157

$150.00

Qty:

55-56

Ambassador V8

Ultramatic Transmission Yoke (see above photo)

N311 5157

$150.00

Qty:

50-51

Rambler

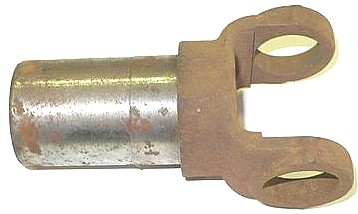

Overdrive Transmission Yoke

N311 5169

$150.00

Qty:

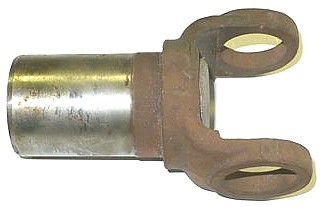

52-53

54-55

Rambler

Rambler 2 door

Overdrive Transmission Yoke - for u-joint with 1.010" dia. caps

N311 5747

$150.00

Qty:

54-55

Rambler 4 door

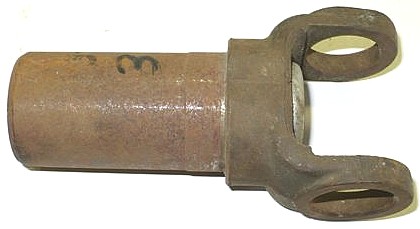

Automatic Transmission Yoke - Universal Products type - for 1.010" u-joint caps

N311 6469

$150.00

Qty:

54

Rambler 4 door

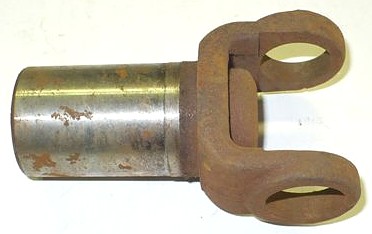

Transmission Yoke (Mechanics type) (w/3 speed) - 1 required

N311 6954

$125.00

Qty:

60-62

Rambler, Classic

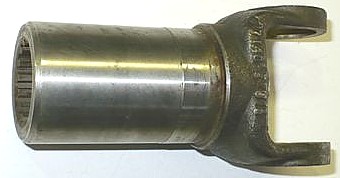

Automatic Transmission Yoke - w/1.010" U-joint caps

N320 2423

$195.00

Qty:

62

Classic

Manual Transmission Yoke - w/3.77 axle ratio & 1.010" U-joint caps   (see above photo)

N320 2423

$195.00

Qty:

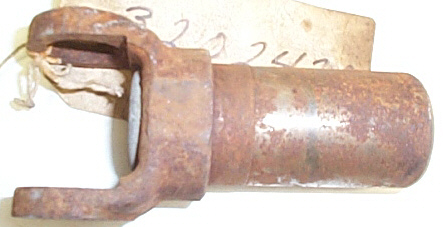

58-63

American (exc Conv)

Manual Transmission Yoke - for u-joint w/1.010" dia caps

N320 2426

$150.00

Qty:

52-53

Rambler

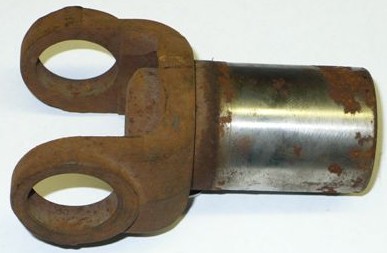

Overdrive Transmission Yoke - 1 required

N311 5780

$150.00

Qty:

54-55

Rambler 2 door

Overdrive Transmission Yoke - 1 required (see above photo)

N311 5780

$150.00

Qty:

58-59

American (w/1" u-joint cap)

Overdrive Transmission Yoke - 1 required (see above photo)

N311 5780

$150.00

Qty:

52-53

Rambler

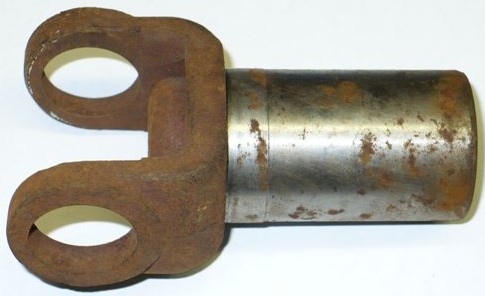

Manual Transmission Yoke ("Mechanics" type) - 1 req

N311 5781

$150.00

Qty:

54-55

Rambler (w/100" wheel base)

Manual Transmission Yoke ("Mechanics" type) - 1 req (see above photo)

N311 5781

$150.00

Qty:

56

Ambassador w/Ultramatic

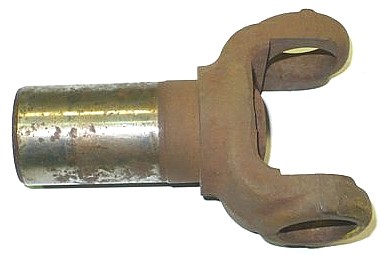

Transmission Yoke (for U-joint with 1 1/8" caps) - 1 req

N311 9732

$150.00

Qty:

58-62

60-62

Ambassador

Rebel

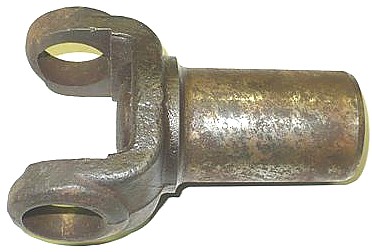

Automatic Transmission Yoke - for u-joint w/1 1/8" dia caps

N320 0853

$150.00

Qty:

49-56

56

51-54

57-61

Ambassador 6

Amb Special V8

Nash-Healey

Rambler V8, Classic V8

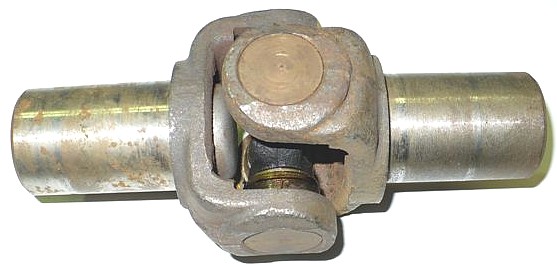

Manual Transmission Driveshaft Yoke Assembly

N313 8316

$250.00

Qty:

41-49

50-55

600

Statesman (exc A/T)

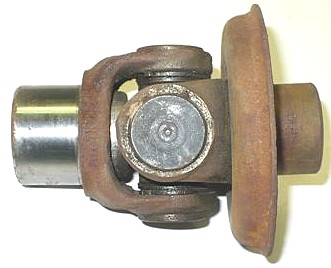

Driveshaft Yoke Assembly

N314 5689

$150.00

Qty:

67-74

67-71

T10

M11, M11B

Transmission Yoke - Forged, precision machined, leak proof

991 0401A

$179.00

Qty:

72-79

Various SIX, 304

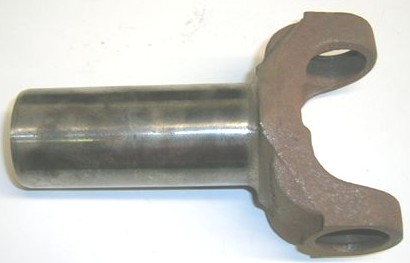

Transmission Yoke (5 5/8" O.L.) - call for application

N321 2805

$95.00

Qty:

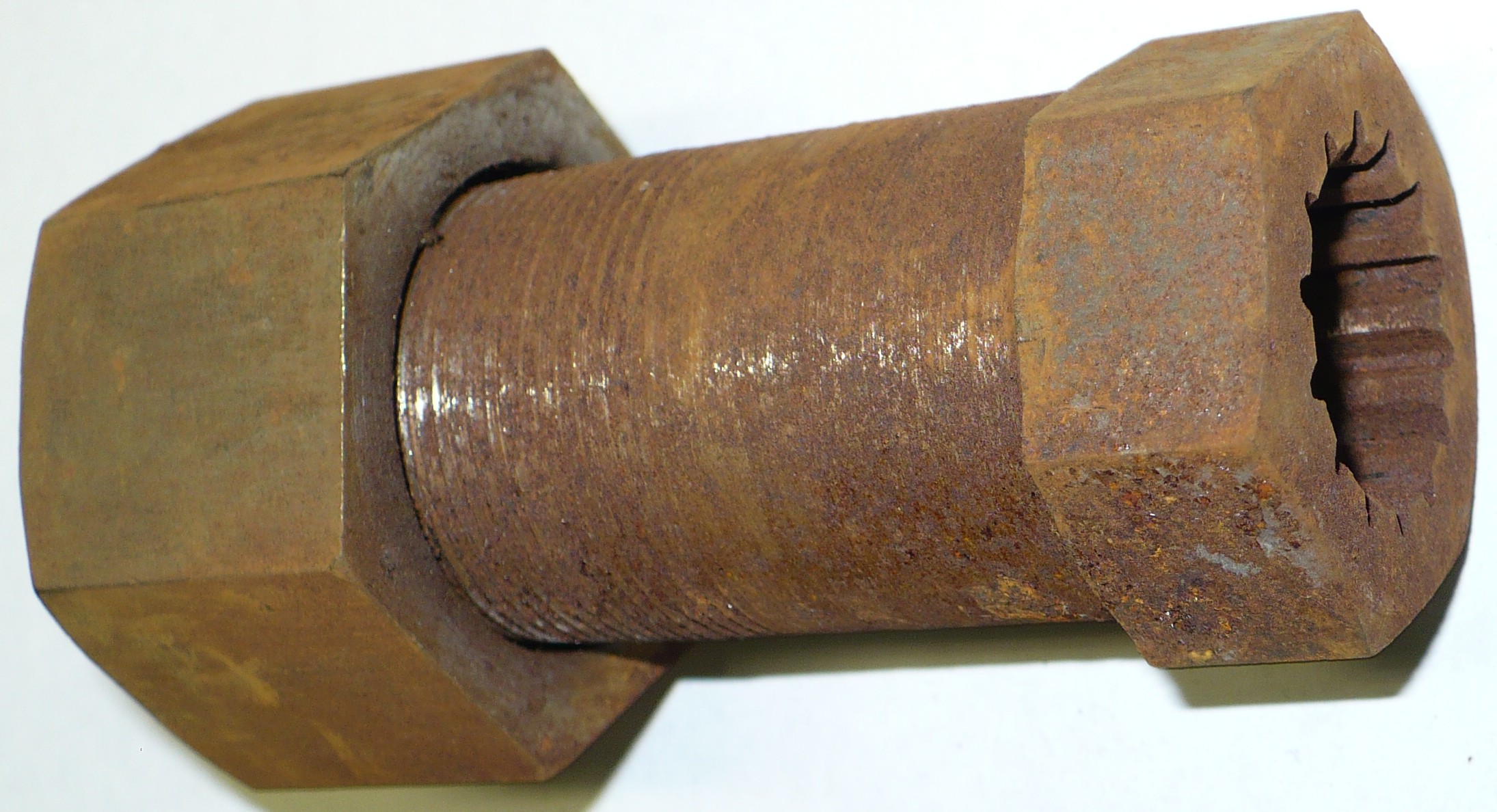

41-E53

600, Statesman

Manual Transmission Driveshaft Coupling (on '53 before K-604703) - 1 req

N311 5762

$75.00

Qty:

L53-56

56-63

Statesman

Rambler, Classic 6

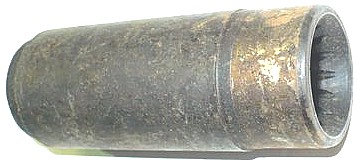

Manual Transmission Driveshaft Coupling (on '53 beginning w/K-604703) - 1 required

N313 8142

$75.00

Qty:

58-64

58

Ambassador

Rebel w/Manual Trans

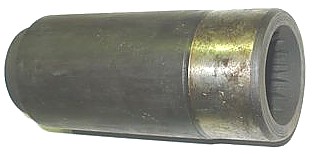

Driveshaft Coupling - 1 required

N315 3585

$185.00

Qty:

58

59-60

61-64

64

Rebel w/Automatic

Rebel

Classic V8

Classic 232

Driveshaft Coupling - Type 1 w/round differential cover (see above photo)

N315 3585

$185.00

Qty:

E

67-75

67-75

V8

Amb, Rebel, Marlin, Matador (Six)

Differential Pinion Yoke - 1 required - NOTE: Type 2 with threaded holes - uses u-joint straps and bolts see kit #991 0002B

991 0402

$69.00

Qty:

51-53

Rambler (w/Man Trans)

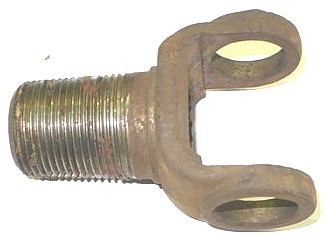

Pinion Yoke (Universal Products Type for 1.010" U-joint caps) - 1 req

N311 5779

$250.00

Qty:

54-55

Rambler 2dr (w/Man Trans)

Pinion Yoke (Universal Products Type for 1.010" U-joint caps) - 1 req (see above photo)

N311 5779

$250.00

Qty:

54-55

Rambler 4dr (w/Auto Trans)

Pinion Yoke (Universal Products Type for 1.010" U-joint caps) - 1 req (see above photo)

N311 5779

$250.00

Qty:

58-59

American

Pinion Yoke (Universal Products Type for 1.010" U-joint caps) - 1 req (see above photo)

N311 5779

$250.00

Qty:

50-55

58-63

Rambler

American

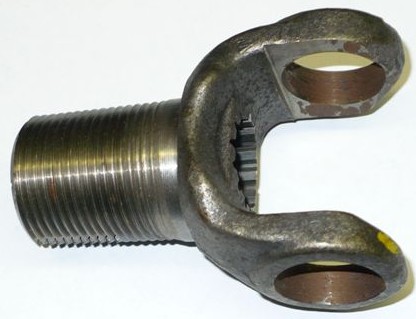

Rear Axle Yoke (Mechanic Type - for 1" u-joint cap)

N311 6957

$325.00

Qty:

F

67-79

67-69

70-88

V8

Ambassador, Rebel, Marlin

SIX & FOUR (except '75 SIX Type 2)

Pinion Seal - 1 required

990 6402

$9.00

Qty:

60-66

66

Ambassador, Rebel, Classic, Marlin (V8)

American (V8)

Pinion Seal - 1 required

990 6402A

$9.00

Qty:

64

65-66

Classic 232

Ambassador, Classic, Marlin (232)

Pinion Seal - 1 required (see above photo)

990 6402A

$9.00

Qty:

50-55

58-68

69

68-69

Rambler Six

American Six

Rambler Six

Javelin Six

Rear Axle Pinion Seal - Exact reproduction

990 6402B

$39.00

Qty:

56-64

Rambler, Classic 196

Pinion Seal - 1 required

990 6402C

$5.00

Qty:

L53-55

56

Statesman (w/o AT)

Statesman

Pinion Seal - (on '53 from K-604703) - 1 required (see above photo)

990 6402C

$5.00

Qty:

54-57

57

58

56

Ambassador

Rebel, Rambler V8

Rebel (Type 2)

Rambler w/3.07 ratio

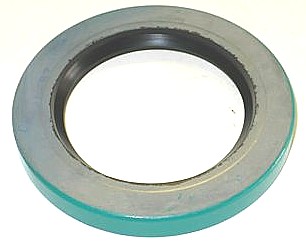

Pinion Seal - 1 required

990 6402E

$25.00

Qty:

41-E53

54-55

600, Statesman

Statesman (w/Hydramatic)

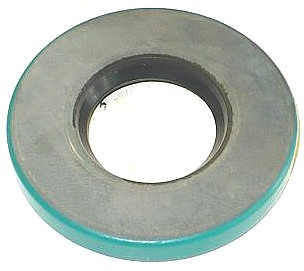

Pinion Seal (on '53 w/o Hydramatic before K-604703)

990 6402G

$26.00

Qty:

L56-E57

Rambler 6

Axle Shaft - 31" O.L., on '56 from D-331061 & '57 D-346977

N314 8515

$75.00

Qty:

56

56-60

61-64

65

Statesman

Rambler

Classic 196

Classic 199

Pinion Seal Retainer Gasket - 1 required

N314 9899

$8.00

Qty:

G

68-79

Model 20

Front Pinion Bearing (always replace bearing and race together) - 1 required

990 5201A

$18.00

Qty:

60

61-65

66

American (Type 2 & 3)

American

American (Six)

Front Pinion Bearing - 1 req

990 5201B

$15.00

Qty:

61-64

65

Classic (196)

Classic (199)

Front Pinion Bearing (1 req) - see above photo

990 5201B

$15.00

Qty:

67-88

Javelin, Hornet, Gremlin, Concord, Spirit, Pacer, Eagle (Six & FOUR)

Front Pinion Bearing (1 req) - see above photo

990 5201B

$15.00

Qty:

H

68-79

Model 20

Front Pinion Bearing Race (always replace bearing and race together) - 1 required

990 5501A

$11.00

Qty:

60

61-65

66

American (Type 2 & 3)

American

American (Six)

Front Pinion Bearing Race - 1 req

990 5501B

$12.00

Qty:

61-64

65

Classic (196)

Classic (199)

Front Pinion Bearing Race (1 req)  - see above photo

990 5501B

$12.00

Qty:

67-88

Javelin, Hornet, Gremlin, Concord, Spirit, Pacer, Eagle (Six & FOUR)

Front Pinion Bearing Race (1 req)  - see above photo

990 5501B

$12.00

Qty:

I

68-74

AMX, Javelin V8

Pinion Crush Sleeve (not reusable) - 1 required

990 5006A

$4.00

Qty:

65-78

Amb, Classic (exc '65 199), Marlin, Rebel, Matador

Pinion Crush Sleeve (not reusable) - 1 required (see above photo)

990 5006A

$4.00

Qty:

66-69

American V8

Pinion Crush Sleeve (not reusable) - 1 required (see above photo)

990 5006A

$4.00

Qty:

70-79

Hornet, Gremlin, Spirit, Concord, Pacer (V8)

Pinion Crush Sleeve (not reusable) - 1 required (see above photo)

990 5006A

$4.00

Qty:

70-78

Javelin, Hornet, Gremlin, Concord, Pacer, Spirit (Six & FOUR)

Pinion Crush Sleeve

990 5006B

$4.00

Qty:

79-88

All (Six & FOUR)

Pinion Crush Sleeve (see above photo)

990 5006B

$4.00

Qty:

66-E70

65-E70

All V8 w/Twin-Grip

Amb, Classic, Marlin, Rebel (w/Twin-Grip)

Rear Axle Filler Plug - Correct hex head - 1 required

990 0501A

$1.50

Qty:

J

65-E70

L70-79

65-E70

L70-78

All V8 w/o Twin-Grip

All V8

Amb, Classic, Marlin, Rebel (w/o Twin-Grip)

Amb, Rebel, Matador

Rear Axle Filler Plug - 1 required

990 0501B

$1.50

Qty:

67-73

Six

Rear Axle Filler Plug & Gasket Kit - Note: for all with plug that uses a gasket

990 0501C

$5.00

Qty:

65-66

65

60-64

American Six

Classic 199

All

Rear Axle Filler Plug & Gasket Kit (see above photo)

990 0501C

$5.00

Qty:

57-59

All

Rear Axle Filler Plug & Gasket Kit - Note: for all with plug that uses a gasket (see above photo)

990 0501C

$5.00

Qty:

L

68-79

Model 20

Rear Pinion Bearing Race (always replace bearing and race together) - 1 req

990 5502A

$15.00

Qty:

60

61-65

66

61-64

65

American (Type 2 & 3)

American

American (Six)

Classic (196)

Classic (199)

Rear Pinion Bearing Race (always replace bearing and race together) - 1 required

990 5502B

$12.50

Qty:

67-88

Javelin, Hornet, Gremin, Concord, Spirit, Pacer, Eagle (Six & FOUR)

Rear Pinion Bearing Race (always replace bearing and race together) - 1 required (see above photo)

990 5502B

$12.50

Qty:

M

68-79

Model 20

Rear Pinion Bearing (always replace bearing and race together) - 1 required

990 5202A

$25.00

Qty:

64-65

66

64

64-88

65

American

American (Six)

Classic (Six)

"Model 35" rear axle

Classic (199)

Rear Pinion Bearing (always replace bearing and race together) - 1 required

990 5202B

$25.00

Qty:

67-88

Javelin, Hornet, Gremlin, Concord, Spirit, Pacer, Eagle (Six & FOUR)

Rear Pinion Bearing (always replace bearing and race together) - 1 required (see above photo)

990 5202B

$25.00

Qty:

N

68-79

Model 20

Ring and Pinion Set - 3.54:1

990 5001A

$349.00

Qty:

N

68-79

Model 20

Ring and Pinion Set - 4.10:1

990 5001B

$349.00

Qty:

N

68-79

Model 20

Ring and Pinion Set - 3.31:1

990 5001C

$349.00

Qty:

N

68-79

Model 20

Ring and Pinion Set - 3.73:1

990 5001E

$349.00

Qty:

N

68-79

Model 20

Ring and Pinion Set - 4.56:1

990 5001F

$349.00

Qty:

52-55

Ambassador 6 (w/o Hydra-Matic)

Ring and Pinion Set - 4.10:1

N313 4545

$150.00

Qty:

52-53

53-55

57-59

58-59

60

Statesman (w/automatic)

Rambler (w/automatic)

Rambler (w/automatic)

American (exc w/overdrive)

Rambler, American (Type 1)

Ring and Pinion Set - 3.30:1

N314 4127

$350.00

Qty:

L60-63

Rambler, Classic 6, American

Ring & Pinion Gear Set - 3.77:1

N315 6055

$350.00

Qty:

L73

Hornet, Gremlin (Six)

Ring and Pinion Gear Set - 2.73:1 (Type 2)

N812 2767

$250.00

Qty:

82-87

All

Ring and Pinion Gear Set - 2.21:1 (rear axle)

N813 4479

$250.00

Qty:

65-79

Model 20

Ring and Pinion Installation Kit - NOTE: Pinion yoke nut is not used on '65-66

990 5002

$175.00

Qty:

65-79

Model 20

Ring and Pinion Installation Kit (with bearings)  - NOTE: Pinion yoke nut is not used on '65-66

990 5002A

$235.00

Qty:

70-79

Model 20

Ring Gear Bolt (7/16-20 x 7/8) - 8 required

990 5002B

$1.50

Qty:

68-69

Model 20 with replacement gears

Ring Gear Bolt (7/16-20 x 7/8) - 8 req (see above photo)

990 5002B

$1.50

Qty:

49-54

600, Statesman (w/Hydramatic)

Ring Gear Bolt (3/8-24 X 11/16) - 8 required

N313 5140

$2.00

Qty:

50-55

Rambler (w/Std Trans-3.77, 4.37 & 3.30 ratios)

Ring Gear Bolt (3/8-24 X 11/16) - 8 required (see above photo)

N313 5140

$2.00

Qty:

36

37-39

400

Amb 6, Lafayette (w/Spiral Bevel gears)

Carrier Bearing Shim (.003)

N28 275

$3.00

Qty:

36

37-39

400

Amb 6, Lafayette (w/Spiral Bevel gears)

Carrier Bearing Shim (.005)

N28 276

$3.00

Qty:

39-40

All (w/Hypoid gears)

Carrier Bearing Shim (.005)

N98 527

$3.00

Qty:

41-42

Ambassador 6 & 8 (w/Hypoid gears)

Carrier Bearing Shim (.005) - see above photo

N98 527

$3.00

Qty:

46-59

Ambassador (exc 1956 Special V8)

Carrier Bearing Shim (.005) - see above photo

N98 527

$3.00

Qty:

57

Rambler V8 (Type 1), Rebel

Carrier Bearing Shim (.005) - see above photo

N98 527

$3.00

Qty:

58

Rebel (w/Manual Trans)

Carrier Bearing Shim (.005) - see above photo

N98 527

$3.00

Qty:

58

Rebel (w/AT & Type 1)

Carrier Bearing Shim (.005) - see above photo

N98 527

$3.00

Qty:

59

Rebel

Carrier Bearing Shim (.005) - see above photo

N98 527

$3.00

Qty:

60-64

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.005) - see above photo

N98 527

$3.00

Qty:

39-40

All (w/Hypoid gears)

Carrier Bearing Shim (.030)

N98 529

$3.00

Qty:

41-42

Ambassador 6 & 8 (w/Hypoid gears)

Carrier Bearing Shim (.030) - see above photo

N98 529

$3.00

Qty:

46-48

Ambassador

Carrier Bearing Shim (.030) - see above photo

N98 529

$3.00

Qty:

36

37-39

400

Amb 6, Lafayette (w/Spiral Bevel gears)

Carrier Bearing Shim (.010)

N28 277

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.082)

N311 2014

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.080)

N310 8472

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.085)

N310 8473

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.090)

N310 8474

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.095)

N310 8475

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler 6

American

Carrier Bearing Shim (.084)

N311 2015

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.086)

N311 2016

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.088)

N311 2017

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.092)

N311 2018

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.094)

N311 2019

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.098)

N311 2021

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.074)

N311 6298

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.076)

N311 6299

$3.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six

American

Carrier Bearing Shim (.078)

N311 6300

$3.00

Qty:

56

56

57

58

Ambassador Special V8

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rebel (w/AT & Type 2)

Carrier Bearing Shim (.005)

N314 8648

$3.00

Qty:

56

56

57

58

Ambassador Special V8

Rambler (w/3.07 axle ratio)

Rambler V8 (Type 2)

Rebel (w/AT & Type 2)

Carrier Bearing Shim (.010)

N314 8649

$3.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc '56 Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.082)

N311 4675

$2.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc 'Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.084)

N311 4676

$2.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc '56 Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.086)

N311 4677

$2.00

Qty:

51-59

57

58

58

59

60-64

Amb (exc 'Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Amb, Rebel, Classic V8

Carrier Bearing Shim (.088)

N311 4678

$2.00

Qty:

51-59

57

58

58

59

60-64

Amb (exc Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Amb, Rebel, Classic V8

Carrier Bearing Shim (.090)

N311 4679

$2.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.092)

N311 4680

$2.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc Special V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.094)

N311 4681

$2.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.096)

N311 4682

$2.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.098)

N311 4683

$2.00

Qty:

51-59

57

58

58

59

60-64

Ambassador (exc Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Ambassador, Rebel, Classic V8

Carrier Bearing Shim (.100)

N311 4684

$2.00

Qty:

51-59

57

58

58

59

60-64

Amb (exc '56 Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Amb, Rebel, Classic V8

Carrier Bearing Shim (.074)

N311 5308

$2.00

Qty:

51-59

57

58

58

59

60-64

Amb (exc Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Amb, Rebel, Classic V8

Carrier Bearing Shim (.076)

N311 5309

$2.00

Qty:

51-59

57

58

58

59

60-64

Amb (exc Spec V8)

Rambler V8 (Type 1), Rebel

Rebel (w/Manual Trans)

Rebel (w/AT - Type 1)

Rebel

Amb, Rebel, Classic V8

Carrier Bearing Shim (.078)

N311 5310

$2.00

Qty:

O

68-74

68-79

67-79

65-66

66-67

AMX, Javelin V8

All V8

Amb, Rebel, Matador

Amb, Classic V8, Marlin

American V8

Rear Axle Inner Seal - 2 req

990 7200

$7.50

Qty:

58-64

55-57

V8 (exc '58 Rambler w/AT Type 2)

Ambassador 6 & V8

Rear Axle Inner Seal - 2 required

990 7200A

$39.00

Qty:

57-88

57

SIX (exc 65-74 Amb, 65-67 Marlin, 67-70 Rebel & 71-78 Matador)

Rebel, Rambler V8

Rear Axle Inner Seal - 2 required

990 7200B

$4.00

Qty:

58

Rambler V8 (w/AT Type 2)

Rear Axle Inner Seal - 2 required (see above photo)

990 7200B

$4.00

Qty:

36

37-40

41-42

41-54

400, 400 Deluxe

Amb 6, Lafayette

Ambassador  8

Ambassador 6

Rear Axle Inner Seal - 2 req

990 7200C

$18.00

Qty:

49-54

51-54

55-61

Ambassador, Statesman

Nash-Healey

All (exc American)

Stabilizer Bar Grommet - 4 req.

990 9000A

$8.00

Qty:

49-54

Amb, 600, Statesman

Stabilizer Bar Axle Bracket Grommet Washer - 21/32" I.D. - 1 required

N312 3799

$1.00

Qty:

49-54

Amb, 600, Statesman

Stabilizer Bar Axle Bracket Grommet Washer - 13/16" I.D. - 1 required

N312 3800

$1.00

Qty:

63-66

Ambassador, Classic, Rebel, Marlin

Rear Stabilizer Bar Bushing Kit

990 9000B

$39.00

Qty:

46-48

600

Rear Axle Stabilizer Bar to Body Bolt Spacer - 1 required

N312 1590

$5.00

Qty:

P

68-79

Model 20

Differential Side Bearing - 2 req

990 4100A

$18.00

Qty:

60

61-65

66

61-64

65

American, Rambler (Type 2 & 3)

American

American (Six)

Classic (196)

Classic (199)

Rear Axle Side Bearing - 2 required

990 4100B

$15.00

Qty:

67-88

Javelin, Hornet, Gremlin, Concord, Spirit, Pacer, Eagle (Six & FOUR)

Rear Axle Side Bearing - 2 required (see abover photo)

990 4100B

$15.00

Qty:

Q

68-79

Model 20

Differential Side Bearing Race - 2 required

990 4300A

$10.00

Qty:

64-65

64-65

66

American

Classic (196, 199)

American (Six)

Rear Axle Side Bearing Race - 2 required

990 4300B

$9.00

Qty:

67-88

Javelin, Hornet, Gremlin, Concord, Spirit, Pacer, Eagle (Six & FOUR)

Rear Axle Side Bearing Race - 2 required (see above photo)

990 4300B

$9.00

Qty:

39-40

41-56

All w/Hypoid rear

Ambassador 6 & 8

Differential Side Bearing Race - 2 required

990 4300D

$15.00

Qty:

57-59

Ambassador, Rebel, Rambler V8 (Type 1)

Differential Side Bearing Race - 2 required (see above photo)

990 4300D

$15.00

Qty:

60-64

64

Ambassador, Classic V8

Classic 232

Differential Side Bearing Race - 2 required (see above photo)

990 4300D

$15.00

Qty:

L60-63

American, Rambler, Classic (Six)

Rear Axle Side Bearing Race - 2 required - Genuine Timken

N315 7273

$15.00

Qty:

39-40

41-56

All w/Hypoid rear

Ambassador 6 & 8

Differential Side Bearing - 2 required

990 4100D

$30.00

Qty:

57-59

Ambassador, Rebel, Rambler V8 (Type 1)

Differential Side Bearing  - 2 required (see above photo)

990 4100D

$30.00

Qty:

60-64

64

Ambassador, Classic V8

Classic 232

Differential Side Bearing  - 2 required (see above photo)

990 4100D

$30.00

Qty:

41-56

50-E60

58-E60

600, Statesman

Rambler Six (exc '60 w/3.07 ratio)

American

Differential Side Bearing - 2 required - Genuine Timken

N310 5346

$35.00

Qty:

68-74

67-78

66-79

AMX, Javelin V8

Ambassador, Rebel, Marlin Matador

American, Rambler, Hornet, Gremllin, Spirit, Concord (V8)

Differential Cover Bolt Kit - Stainless Steel

990 0702A

$16.00

Qty:

S

65-79

V8

Rear Axle Cover Gasket - 1 required

990 0704A

$10.00

Qty:

65-78

Ambassador, Classic, Rebel, Marlin, Matador

Rear Axle Cover Gasket - 1 required (see above photo)

990 0704A

$10.00

Qty:

64-88

Six (except Ambassador, Classic, Rebel, Marlin, Matador)

Rear Axle Cover Gasket - 1 required

990 0704B

$8.00

Qty:

58-E61

50-E61

41-56

American

Rambler (exc '57 V8)

600, Statesman

Rear Axle Cover Gasket - 1 required

990 0704C

$15.00

Qty:

39-40

41-64

57-58

59-64

64

All (exc spiral bevel)

Ambassador (exc 56 Special V8)

Rebel (Type 1)

Rebel, Classic V8

Classic 232

Rear Axle Cover Gasket - 1 required

990 0704D

$15.00

Qty:

X

68-79

Model 20

Cross Shaft Roll Pin - 1 required

990 3603A

$2.00

Qty:

60-75

SIX

Differential Thrust Washer

N316 4365

$3.00

Qty:

AA

65-79

41-64

64

39-40

37-38

Model 20

Ambassador (exc '56 Amb Special V8)

Classic 232

All (exc '40 Amb 8 Coupe & Conv bef N8-15779

Ambassador 6, Lafayette

Differential Cross Shaft - 1 required

990 3601A

$48.00

Qty:

60-72

SIX

Cross Shaft

N316 4363

$20.00

Qty:

68-79

Model 20

Differential Case Assembly - complete (with Twin Grip)

990 2102A

$795.00

Qty:

BB

68-79

Model 20

Differential Side Gear Set - w/Twin-Grip (for 1 piece case) - 1 req

990 2702

$280.00

Qty:

46-54

50-55

600, Statesman

Rambler

Differential Side Gear Set

N311 4672 Partial

$35.00

Qty:

41-56

50-59

600, Statesman

Rambler Six

Side Gear Thrust Washer (.0325 thick) (w/o Twin Grip) - 1 required

N310 5325

$5.00

Qty:

60-65

Rambler, Classic 196-199

Side Gear Thrust Washer (.0325 thick) (w/o Twin Grip) - 1 required (see above photo)

N310 5325

$5.00

Qty:

58-69

68-74

70-75

75

American Six

Javelin Six

Hornet Six, Gremlin Six

Pacer Six

Side Gear Thrust Washer (.0325 thick) (w/o Twin Grip) - 1 required (see above photo)

N310 5325

$5.00

Qty:

60-E71

Model 20

Twin Grip Disc Kit (for '71 with 2 piece case) - 1 required

990 3501A

$189.00

Qty:

DD

L71-79

Model 20

Twin Grip Disc Kit (for '71 with 1 piece case) - 1 required

990 3501B

$98.00

Qty:


DRIVESHAFT

52-56

Ambassador                 (w/o Hydramatic)

Drive Shaft

N311 8550

$250.00

Qty:

52-54

        Ambassador                 (w/Hydramatic)

Drive Shaft

N313 3615

$250.00

Qty:

50-51

Rambler (w/o Overdrive)

Drive Shaft Assembly (includes U-joints & yokes)

N313 1090

$250.00

Qty:

C

67-70

V8

Universal Joint - 2 required

991 0701A

$17.00

Qty:

C

71-74

304-360

Universal Joint - 2 required (see above photo)

991 0701A

$17.00

Qty:

C

71-74

401 w/4 speed

Universal Joint - 2 required (see above photo)

991 0701A

$17.00

Qty:

C

72-74

401 w/automatic transmission

Universal Joint - 2 required (see above photo)

991 0701A

$17.00

Qty:

C

71

401 w/automatic transmission

Universal Joint - 2 required

991 0701B

$25.00

Qty:

58-65

American (except 232)

Universal Joint (w/1" O.D. cap & 2 1/2" cap to cap) - 2 required

991 0701C

$19.00

Qty:

66

American (199) Type 1

Universal Joint (w/1" O.D. cap & 2 1/2" cap to cap) - 2 required  (see above photo)

991 0701C

$19.00

Qty:

63-66

Ambassador, Classic, Marlin  (V8)

Universal Joint - 2 required

991 0701D

$29.00

Qty:

64-65

Classic (232)

Universal Joint - 1 required (see above photo)

991 0701D

$29.00

Qty:

65

Ambassador (232)

Universal Joint - 1 required (see above photo)

991 0701D

$29.00

Qty:

66

Ambassador, Classic, Marlin (SIX)

Universal Joint - 1 required (see above photo)

991 0701D

$29.00

Qty:

65-66

American (232 w/AT Front)

Universal Joint - 1 required (see above photo)

991 0701D

$29.00

Qty:

65

66

E67

American (232-A/T)

American (232, V8)

American (Six)

Rear U-Joint - on '67 w/C-clips @ caps on driveshaft - 1 required

991 0701E

$26.00

Qty:

58-62

Ambassador (w/1 1/8" caps)

U-Joint - 1 required

991 0701F

$28.00

Qty:

60-61

Rebel, Classic V8 (w/Automatic & w/1 1/8" caps)

U-Joint - 1 required (see above photo)

991 0701F

$28.00

Qty:

75-78

All (exc FOUR)

U-Joint - For driveshafts w/part # stamped on tube.

991 0701G

$48.00

Qty:

77-79

FOUR

U-Joint (see above photo)

991 0701G

$48.00

Qty:

79-81

All (Rear Driveshaft)

U-Joint - For all with inside clips. (see above photo)

991 0701G

$48.00

Qty:

58-61

59

62

Rebel, Classic V8

Rambler (M/T-HD)

Ambassador

Universal Joint (with 1" cap) - 1 required

N320 0855

$50.00

Qty:

54-55

Rambler (4 dr - 108" WB)

Universal Joint - 3 req.

N311 7373

$35.00

Qty:

56-62

Classic, Rambler, Rambler 6

Universal Joint

N311 9752

$28.00

Qty:

78-83

All

Rear U-Joint - for all w/2 inner & 2 outer locks

N323 3715

$29.00

Qty:

49-57

50-55

57

58

Ambassador

Statesman A/T

Rebel

Rebel (Type 2)

Driveshaft to Pinion Flange Bolt - 6 required

N312 3589

$3.00

Qty:

49-57

50-55

56

57

Ambassador

Statesman w/AT

Rambler w/AT

Rebel, Rambler V8

Driveshaft to Pinion Flange Bolt Lock Plate - 3 required

N312 3585

$3.00

Qty:

49-57

51-54

50-56

Ambassador  (exc '56 Special V8)

Nash Healey

600, Statesman (w/Hydra-Matic)

Rear Axle Truss Rod (to torque tube) Grommet - 4 required

991 3400A

$6.00

Qty:

52-56

56-61

62

62

63-64

65

Statesman

Rambler, Classic (Six)

Classic w/OD

Classic w/4.11 ratio

Classic 196

Classic 199

Manual Transmission Driveshaft Center Bearing Kit

N311 6741

$75.00

Qty:

L41-48

600

Driveshaft Center Bearing Assembly (includes bushings) (on '41 from N4-5146 with 3 speed & N4-6047 w/OD) - 1 required

N312 2785

$100.00

Qty:

49-51

Ambassador (w/manual transmission)

Driveshaft Center Bearing Kit

N311 3486

$75.00

Qty:

52

Statesman w/manual transmission

Driveshaft Center Bearing Kit (Type 1 - to K540057 & K540190)

N311 5750

$75.00

Qty:

52-59

57-59

60-62

Ambassador w/manual trans

Rambler V8, Rebel (w/man trans)

Ambassador

Driveshaft Center Bearing Kit

N311 5751

$95.00

Qty:

54-55

Rambler 4dr Sedan & Wagon

Manual Transmission Driveshaft Center Support Stud Insulator - 2 required

N313 8853

$10.00

Qty:

E

68-78

67

All w/o threaded holes in yoke

American (V8)

Universal Joint U-Bolt Kit (includes U-bolts, nut, and lockwashers) - 2 required

991 0002A

$4.00

Qty:

68-88

All

U-Joint Strap & Bolt Kit (for repl yoke) - 1 req.

991 0002B

$15.00

Qty:

57-61

E57

56

52-56

49-51

Rambler 6, Classic (w/Manual Trans)

Rambler (w/Auto Trans)

Rambler

Statesman

600, Statesman (w/Manual Trans)

Torque Tube Cushion - 4 required

N312 6205

$10.00

Qty:

49-55

600, Statesman (w/Overdrive)

Torque Tube Adapter (to trans) - 1 required

N313 1889

$100.00

Qty:

80-88

Eagle

Front Axle Cover Gasket

993 0703A

$5.00

Qty:

80

Eagle

Front Differential Side Gear Set - 1 required

N813 0757

$175.00

Qty:

81

Eagle

Front Differential Side Gear Set - ws/Full-Time Axle - 1 required (see above photo)

N813 0757

$175.00

Qty:

80

81-84

Eagle

Eagle (Four)

Front Axle Inner Boot Kit - 2 required

N813 2435

$25.00

Qty:

83-88

Eagle

Front Axle Outer Boot Kit (83 Type 2)

993 7503B

$35.00

Qty:

81-88

Eagle

Axle Shift Fork

N813 3617

$25.00

Qty:

Return to top of page
